Problem
Scene drew its own map. A three.js page pulled the library from a CDN and needed WebGL, and a canvas floor plan sat beside it. On a headless robot neither is available, so the 3D view rendered nothing there, and keeping both pages working was viewer maintenance that has nothing to do with a scene graph. The pages also had no links between them: reaching the annotation view from the map meant editing the address bar, and nothing on any page said the other views existed.

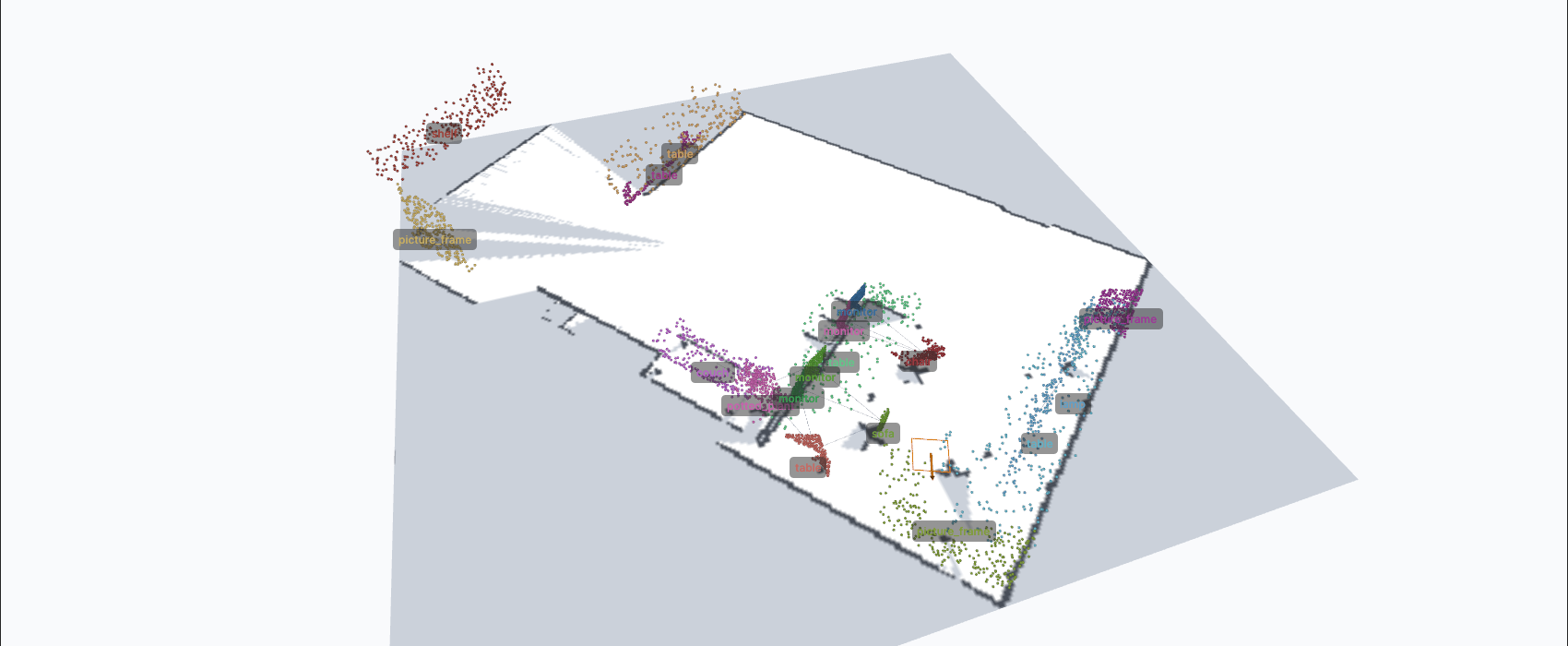

A live Webots office session. Each object is its own point cloud carrying one label; the occupancy grid is drawn underneath as the floor, white where the robot has observed it and dark at the walls; the orange polygon is the robot's own footprint with its heading. Relation edges are drawn thin and pale on purpose — they are context, and the clouds are the evidence. The box each object reports is logged but hidden, and switched on from the entity tree when a detection needs checking.
Change
The map pages are rerun views. Scene logs what it knows and rerun draws it. What is logged is the annotated map, not raw sensor data: one point cloud per object coloured by instance and carrying its class label, a second cloud in the colours the camera saw, the occupancy grid as a textured floor with one colour per cell meaning, one edge per relation, and the robot's own footprint polygon with a heading arrow.
The 3D page is the landing page, because whether the perception is any good is the question this UI is opened to answer. The 2D page is the same annotations seen from above, drawn in the grid's own pixel coordinates so they line up with the map rather than with a second drawing of it. Read that way, an object either sits in the room it belongs to or it does not, and a relation either crosses a wall or it does not. Every page now shares a sidebar.
Each object's reported box is logged but hidden by default. It is the perception layer's own extent estimate, it is often wrong, and a wireframe around every object buries the points that are the actual evidence. It is switched on from the entity tree when a detection needs checking.
Two recordings on two gRPC ports (9876 and 9877) are served by one web viewer (9090), because a blueprint belongs to an application and the viewer takes its data source from the query string.
Why rerun
rerun (rerun-io/rerun, Apache-2.0) is an open-source SDK and viewer for multimodal robotics data. It supplies four things this PR would otherwise have had to build and keep working:
The viewer, and the server that serves it. The page being replaced pulled three.js from a CDN and needed WebGL in the browser. A headless robot has neither, so that page rendered nothing exactly where a viewer is most useful. rerun ships the viewer as a WASM bundle, an HTTP server for it, and the wire protocol between them, so Scene logs entities and links to the viewer instead of maintaining one.
A data model that matches what Scene has. rerun is entity-and-component, not draw calls. Each object becomes three entity paths —
rgb_pcd/<id>for the colours the camera saw,sem_pcd/<id>for one colour per instance,bbox/<id>for the extent estimate — and the viewer's entity tree makes each one independently visible. That is why the debug boxes can be a layer the reader switches on rather than a UI feature we implement: the blueprint hides/map/objects/bboxby default and the tree switches it back on.A time axis for free.
set_timeputs every tick at a point on a timeline, so dragging it replays the map filling in as the robot drove. That is what separates a detection that persisted from one that appeared for a single frame, and it is not something a hand-rolled viewer gets without real work.A declarative layout. The blueprint is sent with the data, so a page opens on the right view with the panels collapsed, with no viewer-side configuration for an operator to get wrong.
It is the same shape of data the official examples show
rerun's own examples include several that are structurally what Scene produces, which is a good sign that the model fits rather than that we are bending it:
The three-layer per-object layout follows DualMap, which uses rerun the same way and is already a selectable Scene backend.
What it costs, stated honestly
SetTheme, so the light theme applies to the view contents and Scene's own shell, not to that strip.numpy>=2, which the perception stack cannot take. It is therefore an optional extra, not a dependency, and the x86 image installs it with--no-depsand pinned imports. Native installs keep the built-in pages and nobody porting Scene has to solve for it.Native deployments are unchanged
web_viewerin the Scene config, orSCENE_WEB_VIEWER, selectsauto,rerunorbuiltin.autouses rerun when it is importable, which is true in the x86 docker image and false natively, so a native install keeps exactly the pages it had. rerun is an optional extra rather than a dependency: a port to a new board has to be able to bring Scene up without solving for it, and rerun-sdk declaresnumpy>=2, which the perception stack cannot take. The x86 image installs it with--no-depsand pinned imports. Settingrerunwhere it cannot start fails the start with the reason rather than serving an empty frame. The built-in pages stay reachable at?bare=1either way.Boundary
The sink only reads. It takes a registry snapshot once a second and publishes it. Object persistence, annotations and the map lifecycle are untouched, and a viewer that cannot start does not stop the map service.
Validation
robonix_manifest.scene-eval.cg.nav.yaml), driven by the standard Explore skill. Verified in the live recording that every layer is logged:/map/floor,/map/objects/{rgb_pcd,sem_pcd,bbox}/<id>,/map/relations,/map/robot/{footprint,heading}, and the/map2dequivalents./,/2d,/cam,/user,/3dand each?bare=1form.pytest system/scene/tests/{test_rerun_sink,test_web_live_views,test_scene_graph,test_vlm_inference_cache,test_perception_vlm_geometry,test_image_relations,test_web_binding}.py: 95 passed.test_rerun_sink.pyis added to the CI Scene job.No Rust changes. No capability contract, generated code, or migration changes.
Also
testing/export_scene_pointcloud.pywrites the same objects to a coloured PLY and an.rrdfor offline comparison against ground truth.
