TPxLab

Reproducible global deconvolution and quantification of temperature-programmed catalyst data.

TPxLab turns CSV/XLSX TPR, TPD, and TPO curves into inspectable baseline corrections, editable peak components, simultaneous mixed-model fits, coordinate-aware integrals, unit-checked quantities, diagnostics, figures, and reproducible exports. One AnalysisService powers the Python API, CLI, and Tkinter GUI.

Install

Install the current stable release from PyPI:

python -m pip install tpxlab

For development or to run the bundled examples from a source checkout:

git clone https://github.com/hdkim99/TPxLab.git
cd TPxLab
python -m pip install -e .

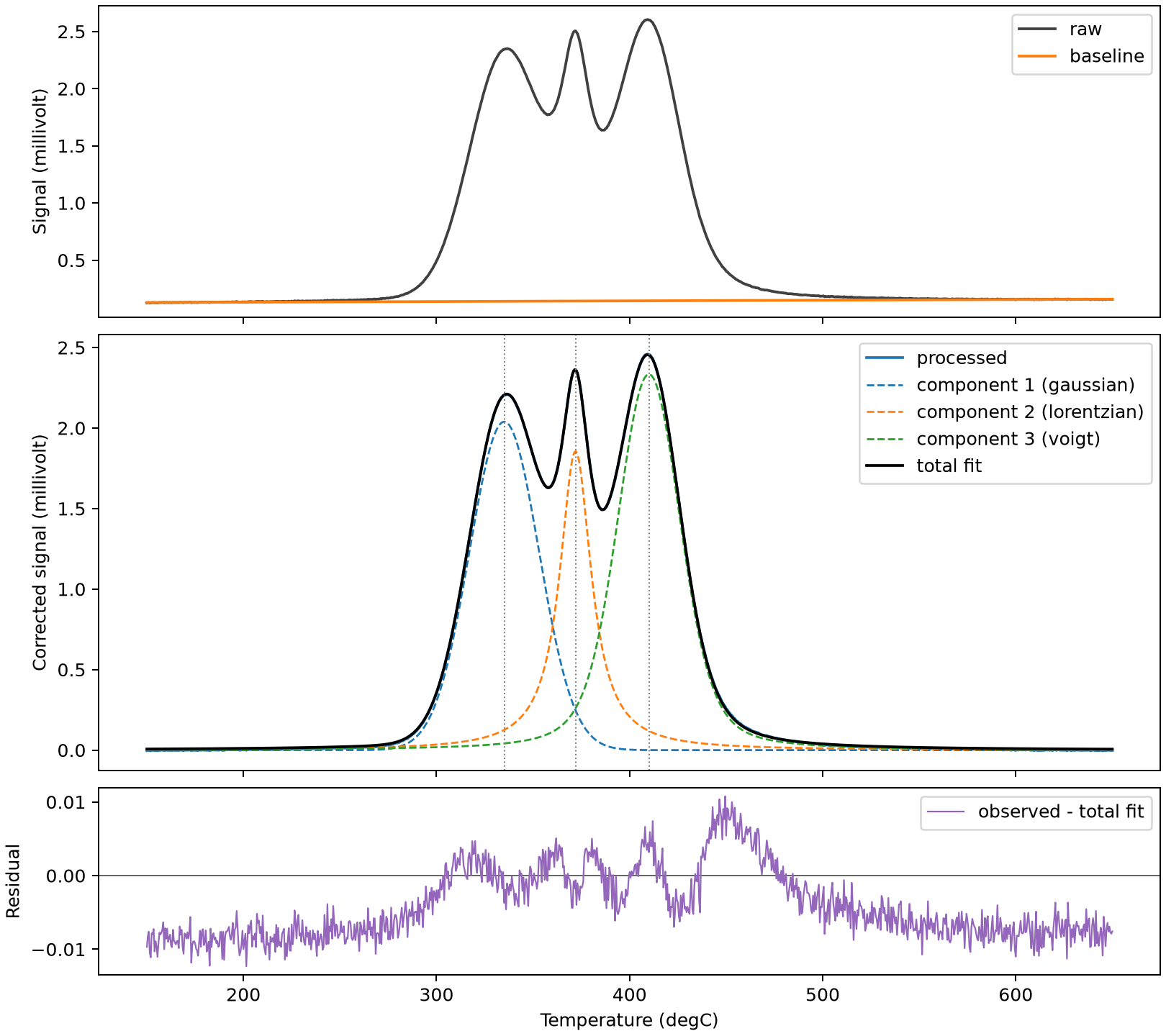

The repository social-preview candidate is the actual bundled-example result, not a mock interface.

30-second global quickstart

Download the public-safe example files and run them with the PyPI installation:

mkdir tpxlab-demo && cd tpxlab-demo
curl -LO https://raw.githubusercontent.com/hdkim99/TPxLab/main/examples/overlapping_tpr.csv
curl -LO https://raw.githubusercontent.com/hdkim99/TPxLab/main/examples/overlapping_components.json
tpxlab analyze overlapping_tpr.csv \
  --components-config overlapping_components.json \
  --baseline linear \
  --output global-analysis.xlsx \
  --figure global-analysis.png

tpxlab-gui

The GUI follows: load and map columns/units -> baseline and detect -> add/update/remove components -> choose model, center/width bounds, fixed/shared width constraints -> fit and quantify -> inspect components/total/residual -> export. Every edit is passed through the service to the same scientific core used by the CLI.

Selected public real-data validation

TPxLab has been exercised against selected raw H2-TPR acquisition CSVs from Zenodo DOI 10.5281/zenodo.21884075. The validation covers measured time/temperature/TCD columns, negative detector polarity, non-monotonic segments, constrained global fitting, diagnostics, and export. It does not claim calibrated H2 consumption because the source does not provide an absolute detector calibration. Dataset/article licenses, checksums, exact files, protocol discrepancies, reproduction commands, and limitations are recorded in Public data sources.

Python API

from tpxlab import AnalysisService, AnalysisSettings, PeakSeed
from tpxlab.io import load_raw_data

raw = load_raw_data("examples/overlapping_tpr.csv")
components = [
    PeakSeed(
        332,
        220,
        540,
        model="gaussian",
        center_lower=310,
        center_upper=350,
        width_lower=5,
        width_upper=35,
    ),
    PeakSeed(
        373,
        220,
        540,
        model="lorentzian",
        center_lower=355,
        center_upper=390,
        width_lower=4,
        width_upper=25,
    ),
    PeakSeed(
        414,
        220,
        540,
        model="voigt",
        center_lower=395,
        center_upper=430,
        width_lower=4,
        width_upper=28,
    ),
]
result = AnalysisService().analyze(
    raw,
    AnalysisSettings(baseline_method="linear", fit_mode="global"),
    components,
)
print(result.global_fit.identifiable, result.global_fit.statistics.r_squared)

Support status in v0.2.x

Capability	Status	Notes
CSV and XLSX import	Supported	explicit or conservative automatic 3-column mapping
Linear, polynomial, ALS baseline	Supported	raw data is copied and read-only
Positive/negative detector peaks	Supported	explicit polarity; raw/baseline stay in detector coordinates
Optional Savitzky-Golay smoothing	Supported	parameters exported
Peak detection and manual edits	Supported	positive-area peaks after explicit polarity; add/update/remove in GUI
Simultaneous global deconvolution	Supported	one summed residual; mixed Gaussian/Lorentzian/Voigt
Center/width constraints	Supported	positive areas; validated bounds and fixed parameters
Shared width constraint	Supported	named shared sigma or gamma groups only
Identifiability diagnostics	Supported	ordering, dof, rank, condition, active bounds, covariance status
Independent bounded fitting	Supported	v0.1-compatible mode; not overlapping deconvolution
Trapezoid/Simpson integration	Supported	actual time coordinates, including irregular sampling
Calibration + sample-mass quantification	Supported	Pint dimensional validation
Explicit reduction degree	Experimental	API only; user supplies stoichiometry
Draft interchange metadata	Experimental	org.tpxlab.analysis/0.2-draft; no integration adapter yet
Asymmetric peaks, automatic model selection	Planned	not implemented
TPSR and pulse chemisorption workflows	Planned	not implemented

Outputs

XLSX contains Raw, Processed, Peaks, Components, Global_fit, Settings, Metadata, and QC sheets; a directory destination writes the same layers as CSV. Exports include original channels, component curves, total curve, residual, exact constraints, parameter ordering, component parameters/Tmax/area/height/FWHM, local standard errors, component and global covariance, RSS/RMSE/R²/dof, Jacobian rank, condition number, optimizer status, active bounds, numerical rank tolerance, integration source, units, source file, and QC issues. PNG/SVG/PDF figures include raw/baseline, components/total, and residual.

Scientific scope and limitations

• Global mode minimizes one residual vector between the complete processed signal and the sum of all components. It is not a sum of separately fitted curves.
• Nonlinear decomposition can be non-unique. A full-rank local Jacobian is necessary, not sufficient, for physical uniqueness. Rank-deficient fits report unavailable covariance; boundary solutions report boundary-limited uncertainty.
• Reported covariance is the local linearized least-squares approximation. It does not replace replicate experiments, profile likelihood, or domain-informed uncertainty.
• A shared sigma or gamma should be used only when components have a defensible common broadening mechanism. TPxLab never decides that assumption automatically.
• Global component quantification integrates each fitted component against measured time. Independent mode integrates the observed bounded region. The export labels this source.
• Peak fit area is with respect to temperature; calibrated detector integration is with respect to time. Both are labeled separately.
• Baseline and model choices remain analytical assumptions requiring residual review. TPxLab orients explicitly declared positive/negative detector responses into positive-area models and does not infer polarity, gas identity, chemistry, oxidation state, stoichiometry, or expected consumption.
• Non-monotonic temperature programs are flagged; repeated temperature ranges require user review.

Definitions, equations, parameter ordering, and validation details are in Scientific methods. The reviewed, opt-in actual-research-data source is documented in Public data sources. The provisional, explicitly non-stable export contract is in Interchange metadata.

Related tools

• Ordifile — chromatographic data standardization.
• ReactorCheck — catalytic reactor calculation and QC.
• OperandoMerge — heterogeneous experiment timeline alignment.

These are independent repositories. Direct cross-project adapters are planned interoperability, not a current TPxLab feature.

Development

python -m pip install -e '.[dev]'
ruff check .
mypy src
pytest
python -m build
twine check dist/*

Runtime dependencies use permissive licenses compatible with MIT: NumPy/SciPy/pandas (BSD), Pint (BSD), Matplotlib (PSF-based), and openpyxl (MIT). See pyproject.toml for the declared dependency set and CONTRIBUTING.md for the scientific contribution policy.
