Closes #999.

The ● N pill and the session card's count could read 3 while the card listed no subagent at all. Claude Code tags more traffic than a chat's own spawns: a forked skill runs under its Skill call's id, the agents a subagent starts run under their own Agent ids, and a /skill typed as the prompt runs under forked-command-<name>. The engine opened a subagent doc for every tagged id, and the pill counts open docs. Now it opens one only for a spawn chip of the chat, and a forked skill becomes such a chip.

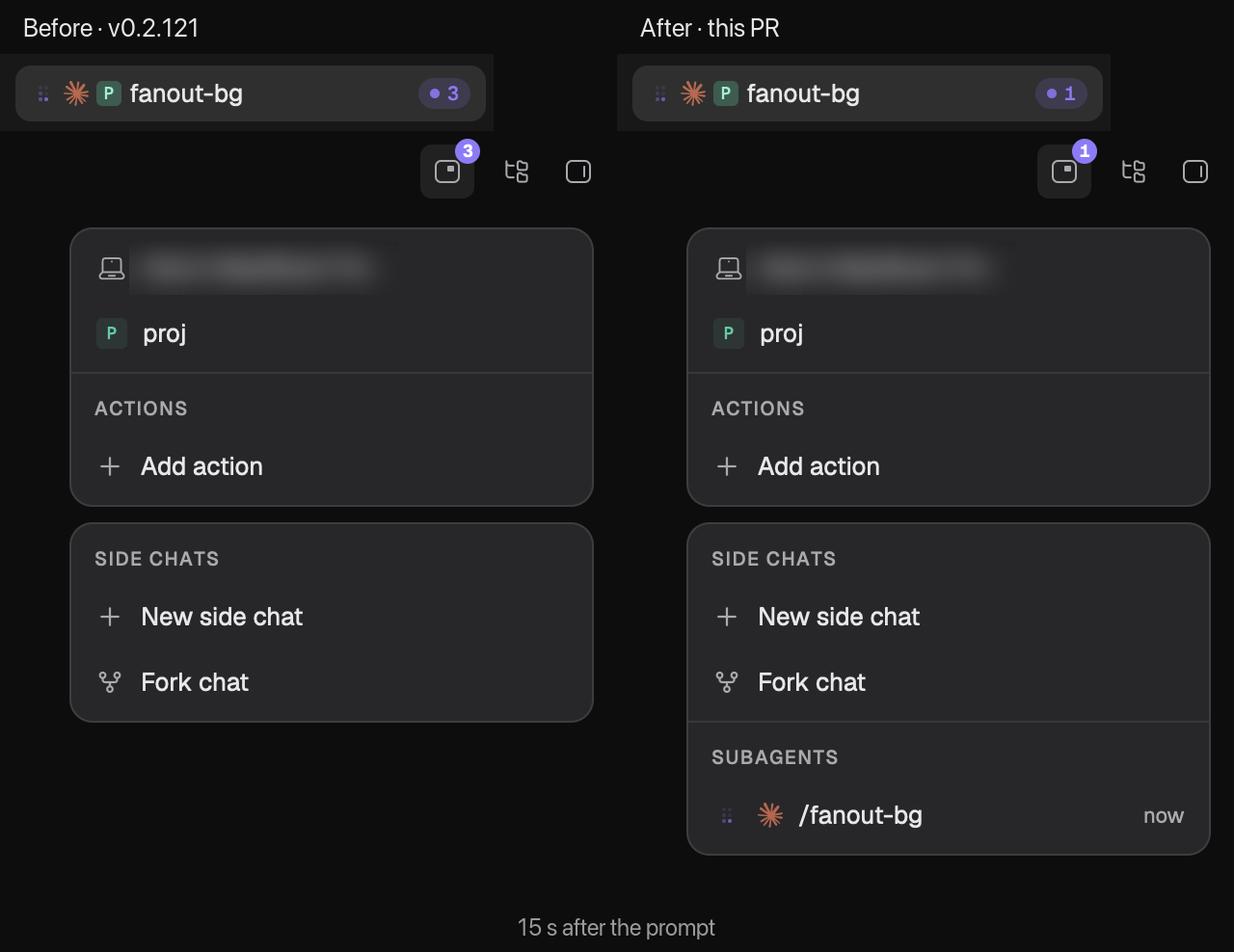

The same prompt, Run the fanout-bg skill., sent at once to v0.2.121 and to this branch, 15 s in. From 5 to 50 s: fanout-bg-live.gif.

What changes

• Engine. drive_run opens a subagent sink only for an id that is_chat_spawn accepts: a spawn chip of the chat, folded in this run or already in the doc (SessionDoc::has_subagent_spawn) (crates/engine/src/sessions.rs:3026, checked at :4176). Any other tagged id is remembered as foreign until a tool call with that id folds (:4483). Its traffic stays in the run journal, and nothing counts it. The gate is engine-wide: the other drivers already emit their chip before the child's traffic, and Devin's synthetic owners for a missing replayed spawn (crates/harness/src/acp/subagent_devin.rs:55, :73) now stay journal-only and uncounted.
• Claude adapter. Each parent-feed Skill call is set aside (crates/harness/src/claude/normalize.rs:761). A forked skill runs as a subagent under that call's id, and its task_started comes before any of its traffic. That start now re-decodes the call as a spawn named Agent: /<skill> (normalize.rs:575). The skill then gets what an Agent call gets: a chip that opens its tab, a row in the card, a unit on the pill, and its task_notification settles it. A skill whose result arrives with no task start ran inline: it's dropped (normalize.rs:902) and stays a tool.
• Doc. has_subagent_spawn reuses the spawn check update_subagent_chip already made (crates/doc/src/schema.rs:888). The AgentEvent::Subagent docs now say the spawn ToolCall must come first (crates/proto/src/agent.rs:840).

Testing

• macOS 27.0, rustc 1.99.0, cargo test --locked:
  • -p zeron-doc --lib: 151 passed.
  • -p zeron-harness --lib --test claude --test codex: 446, 35 and 45 passed, 3 and 4 ignored as on main. Two timing tests in files this doesn't touch (acp/devin_models.rs, opencode) fail now and then under load, and pass alone.
  • -p zeron-engine --lib --test e2e --test codex_subagents --test subagent_idle_reap --test restart_resume --test side_chats: lib 631 passed (5 ignored), e2e 29 (2 ignored), codex_subagents 2, subagent_idle_reap 2, restart_resume 11 (1 ignored), side_chats 6.
• Each regression test fails with its fix reverted:
  • running_subagents_count_only_this_chats_spawn_chips (engine) scripts a forked skill that starts two agents, plus a forked-command-* stream, and checks that the session row counts the one chip the card lists. Without the gate it fails with left: Some(4) right: Some(1). A frame tagged before the re-decode waits in the journal until the spawn folds. Without that eviction (sessions.rs:4483) the skill's doc never opens, and the test's 10 s wait fails with "the script routed".
  • a_forked_skill_becomes_a_spawn_when_its_task_starts (adapter). Without the re-decode, the task start yields [] instead of the Agent: /fanout call. Without the drop, the inline skill stays set aside ({"toolu_inline": …}), and a late task start would re-decode it.
  • captured_live_forked_skill_frames_replay_correctly replays frames captured from Claude Code 2.1.310 (live-2.1.310-forked-skill.jsonl). The skill's chip becomes a spawn before any of its traffic, its two agents stay chips of its own transcript, and its task_notification settles it.
  • empty_subagent_events_commit_once_per_window_not_per_tick (Engine: stop the run loop spinning on empty subagent events #604's test) needs a spawn chip now, or no sink opens. It plays a background subagent: the spawn's turn ends, and the subagent speaks after the parent's commit window. It fails if an empty flush leaves the sink dirty (1114368 commits in 1 s), if the gate skips the doc (0), or if a waking sink doesn't arm its own window (12 commits for 12 events).
• Across 6 captured sessions (2.1.228 and 2.1.310), all 10 Skill and Agent calls with tagged traffic get their task_started before it. Only a /skill prompt's forked-command-* traffic has none, and it has no chip either.
• Live, Claude Code 2.1.310 with Haiku. The same four prompts went to the installed v0.2.122 and to this branch, each a headless engine with its own data dir. Between v0.2.122 and this branch's base, main changed only crates/harness/src/codex and crates/ui among the crates. The pill and the card's rows were sampled every 5 s, until 45 s after the session went idle:

Prompt	v0.2.122	This branch
Run the fanout skill. (2 foreground agents)	pill 1 over an empty card in 16 of 30 samples	card lists /fanout. Pill 1 over an empty card in 1 of 33 samples, taken the second the sink opened; the next one lists the row
Run the fanout-bg skill. (2 background agents)	pill up to 3 over an empty card in 58 of 90 samples; 3 docs, none listed	pill ≤ 1, card lists /fanout-bg, pill = running rows in all 17 samples
/fanout	idle for 45 s with the pill at 1; its forked-command-fanout doc left streaming	idle with the pill at 0, no doc
One background Agent call (control)	pill 1, one row	same

• Rebased onto v0.2.124 (c04e3749) after these runs, with no conflict. Merged there with the other five PRs of this series (Claude subagents: forward a foreground subagent's text and thinking #1042, Claude subagents: give a typed /skill's fork a chip and a tab #1043, Claude subagents: fill a typed fork's tab while the CLI holds it #1044, Fork: settle the running subagent chips a fork copies #1045, Providers: a switch to turn native subagents off #1046), it passes every suite above again, plus the rest of CI's selection, sync's mock-server tests, zeron-mcp and the UI's settings:: tests, each executable checked to be built from that merge. The one failure, preview's backgrounded_scrubbed_terminal_and_out_of_tree_servers_stay_attributed, fails the same way on v0.2.124 alone, on this Mac.
  • Live on that merged build: Run the fanout-bg skill. kept the pill equal to the card's running rows in all 20 samples, and the store held one subagent doc, the one the card lists.
• Not run: Windows and Linux, the full app by hand, Claude Code other than 2.1.310 live.

Known limits

• Claude: open each Workflow agent's live transcript #785 routes a tagged id whose chip lives in another subagent's transcript to a doc of its own. Rebased on this gate as is, its nested chips would link to docs that never open. It works only once the gate admits nested owners, the count excludes nested sinks, and a row's ref is stamped only once its doc opens.
• Agents a forked skill starts are chips in the skill's tab, not rows in the chat's card, and the pill doesn't count them. A background one can outlive the skill's chip ([Bug]: Claude harness: parent looks finished while background subagents run, and wake-turn thinking is dropped #984). A skill a subagent forks stays foreign the same way: only parent-feed Skill calls are set aside.
• A /skill typed as the prompt has no chip, so its run gets no tab, and its reply isn't shown either ([Bug]: A forked /skill typed as the prompt shows nothing while it runs, and no reply after #1040). Claude subagents: give a typed /skill's fork a chip and a tab #1043 gives it a chip and a tab, and Claude: show replies to local slash commands #787 shows the reply.
• Claude: stop doubling a foreground subagent's opening prompt #952 now conflicts in normalize.rs: both change the task_started branch. Claude: show Workflow runs as subagents with live progress #784 adds normalize.rs (the up-front tool_use loop) to wire.rs and scripts/ci/test-core.sh, where it already conflicts with main. Claude: open each Workflow agent's live transcript #785 adds sessions.rs (the gate) and normalize.rs to its conflicts with main.
• Merging Claude: stop doubling a foreground subagent's opening prompt #952: keep the re-decoded ToolCall ahead of its opening-prompt seed. Behind it, the seed would reach the gate while the chip is still Skill and stay in the journal (CLIs before 2.1.296, which don't say whether a task is backgrounded). Merging Claude: show Workflow runs as subagents with live progress #784: keep the "Skill" arm next to its is_spawn_tool check in the up-front loop.

Screenshots

Offscreen renders of the production Shell (Window::render_to_image), attached to each engine; docs/media/subagent-spawn-gate/README.md says how they were made. The media are in their own commit, 87e0b0fd, if you'd rather drop them before merging.

v0.2.121	This branch

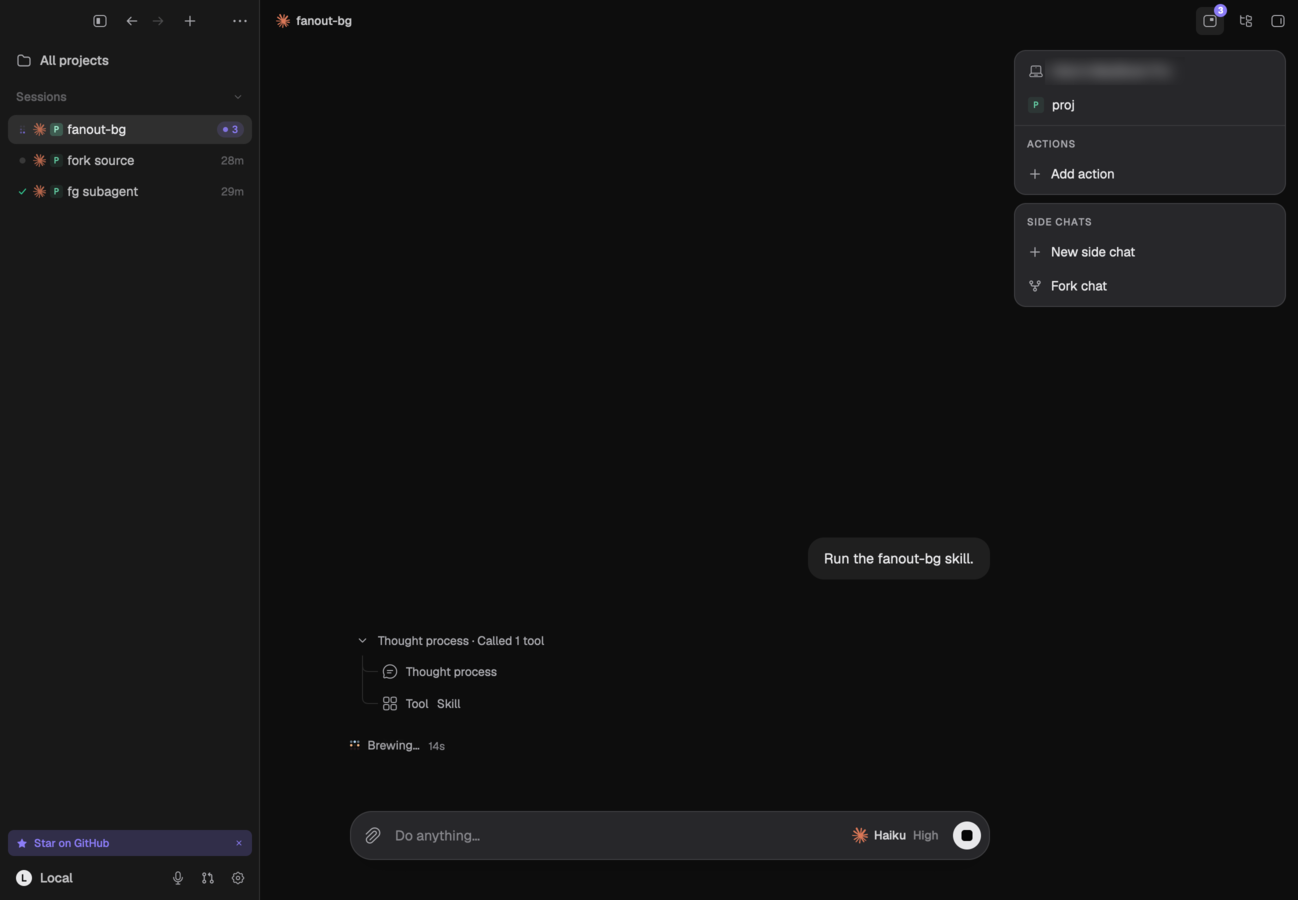

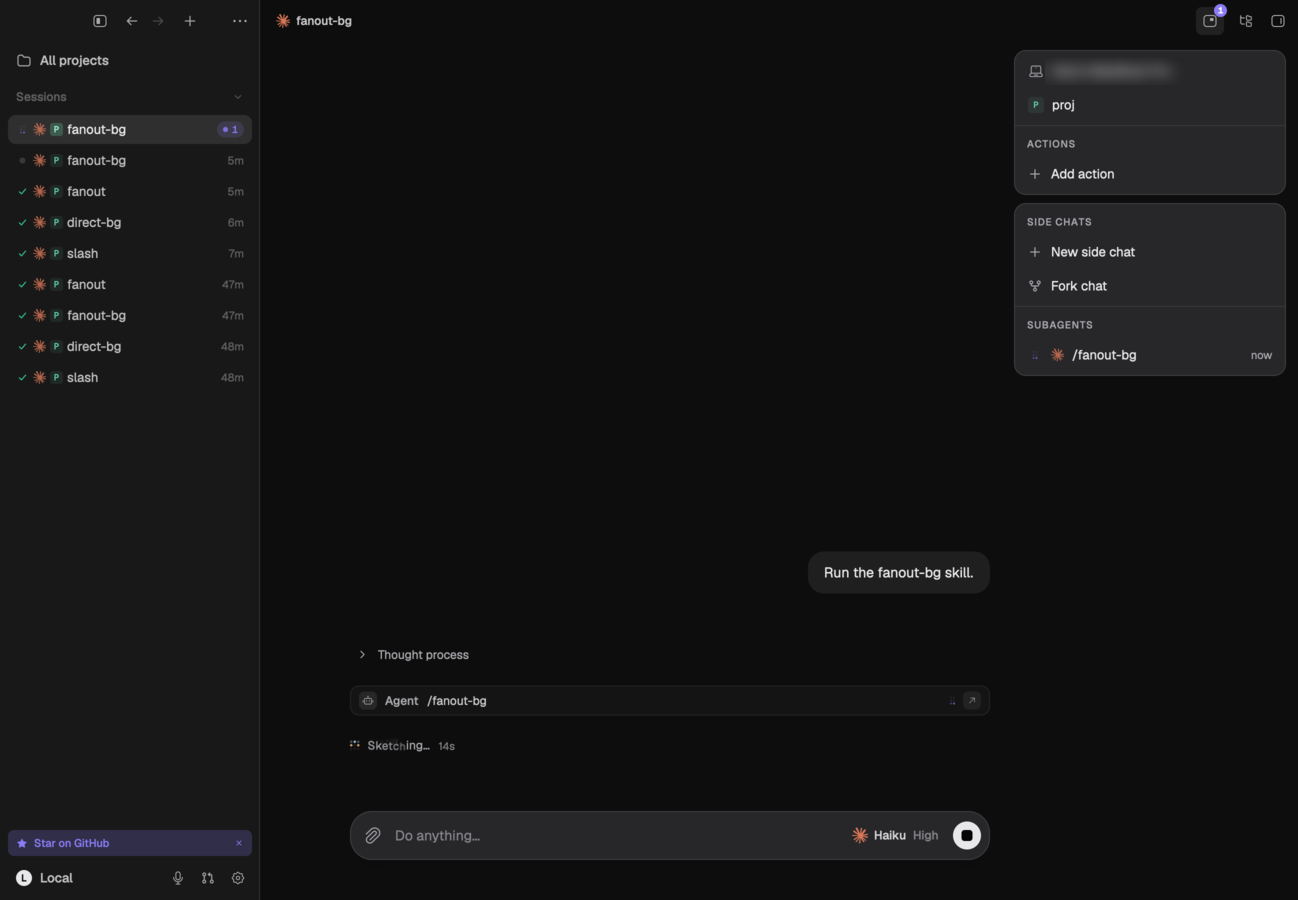

Full windows

v0.2.121	This branch

---

^{Need help on this PR? Tag @codesmith-bot with what you need.}

[zeronsh]

Security audit clean: Rust-only changes plus PNG/GIF/README demo media and a JSONL capture. No new dependencies, build scripts, workflow changes, network hosts or trailing data in the images. The spawn-gate code (engine is_chat_spawn, Claude forked-skill re-decode, SessionDoc::has_subagent_spawn) reviewed and verified locally on Linux: doc/proto/harness (lib, claude, codex) and engine (lib, e2e, codex_subagents, subagent_idle_reap, restart_resume, side_chats, session_publication) pass, apart from 4 engine lib tests that fail only because of this cloud machine's environment. Clippy is clean on touched files, and the engine regression test fails with the gate reverted. The shared commit landed on main with #1042, so after the rebase this PR carries only the demo media.
