Prevent explicit netlabels from expanding into long schematic traces

[rushabhcodes]

Summary

• add preExistingNetLabelPinIds to the schematic trace solver input
• prevent the long-distance fallback from routing across endpoints that already have user-placed netlabels
• skip duplicate automatic label placement for pins and routed islands already represented by explicit netlabels
• preserve existing long-distance routing for connections without explicit labels

Root cause

Normal MSP routing correctly rejects these connections because they exceed maxMspPairDistance. The long-distance fallback then reconnects the same endpoints with full-width schematic traces because it has no knowledge that one side is already represented by an explicit netlabel. Automatic netlabels are added later, but the unnecessary routes remain.

The new input field carries that intent into the solver. Long-distance candidates touching an explicitly labeled pin remain separate net islands, allowing the remaining endpoints to terminate at automatic netlabels without drawing wires across the schematic.

Cross-repository reproduction

The user-facing regression is reproduced in tscircuit/core#2725.

This PR also includes a minimal solver-level regression test and verifies that unlabeled endpoints still retain clear long-distance routes.

Before and after

Before	After

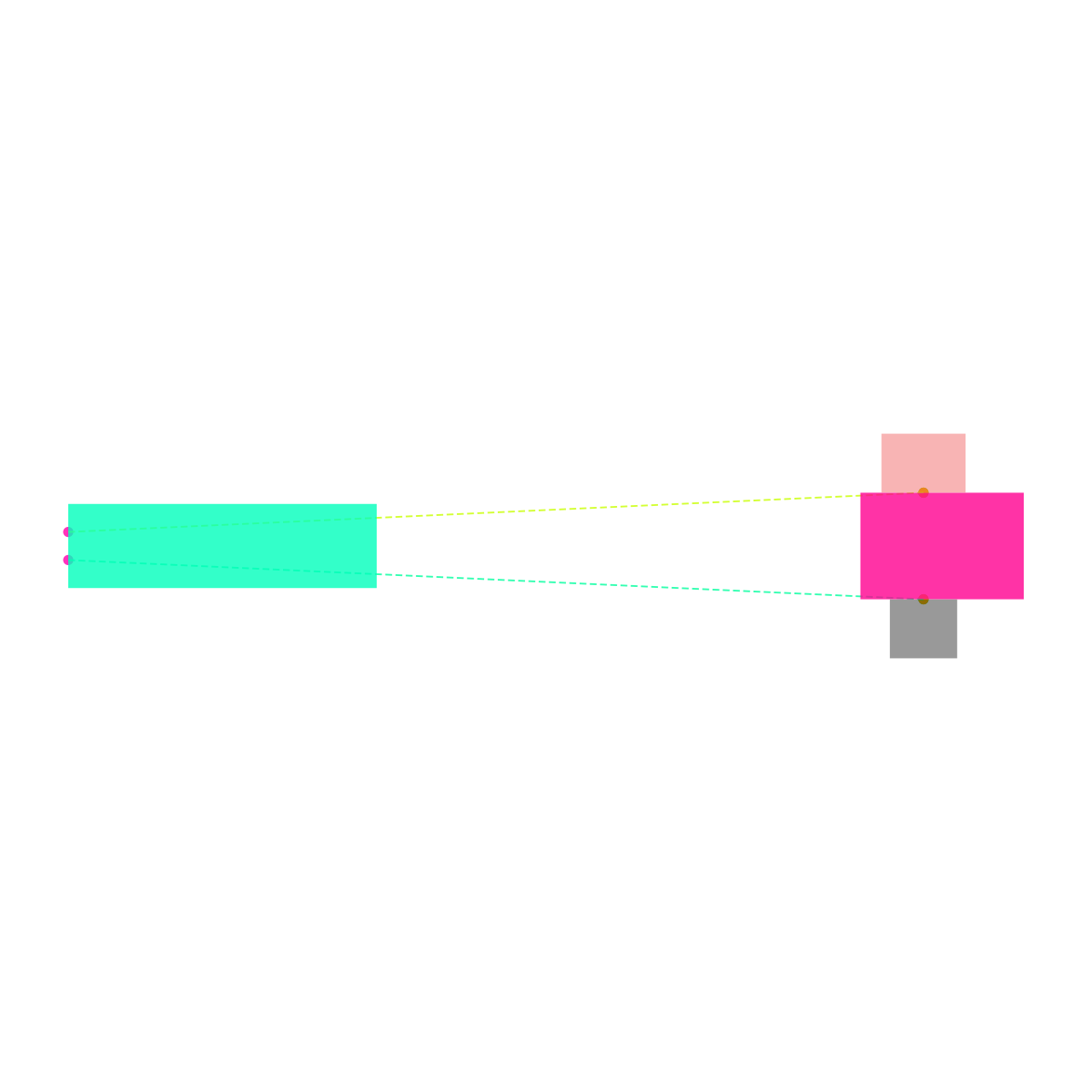

The dashed lines are connectivity guides in the solver visualization. The solid full-width routes visible before the fix are no longer emitted afterward.

Validation

• bun test tests/repros/repro152-explicit-netlabels-long-traces.test.ts tests/solvers/SchematicTracePipelineSolver tests/solvers/MspConnectionPairSolver tests/solvers/NetLabelPlacementSolver
• bunx tsc --noEmit
• normalized final-routing snapshot verification
