design-comments

A floating comment overlay for React apps — pin feedback to any UI element, sync with GitHub Issues, and link Jira tickets.

🚨 Important: Proper Uninstall Required

This package modifies your project files during setup. Before uninstalling, you MUST run:

npx design-comments remove
npm uninstall design-comments

Failure to run remove first will break your app. See Uninstalling for details.

Key Features

• React Component Detection - Automatically identifies React components with names, types, props, and component tree paths
• Smart Pin Positioning - Pins anchor to elements using CSS selectors and follow them on scroll/resize
• Hover Preview - Visual preview with dashed border before creating a comment
• Component Highlighting - Chrome DevTools-style blue border on selected components
• Resizable Widget - Adjustable panel size (300-800px width)
• Thread Discussions - Organized comment threads with replies
• GitHub Integration - Automatic sync with GitHub Issues including component metadata
• Jira Integration - Link tickets to specific pages or sections
• AI summaries (optional) - Summarize all threads, the current page, or the selected thread via an OpenAI-compatible API (local dev proxy or SUMMARIZE_API_URL in production)
• Missing Element Detection - Pins fade and show [deleted] when target is removed

Prerequisites

This package works best with React applications that have:

• Webpack-based setup with webpack.dev.js
• src/app/ directory structure
• React 18+
• Node.js 18+

The automated integration script (npx design-comments init) works best with PatternFly React Seed or projects with a similar structure. PatternFly React v5 or v6 is supported but not required.

Quick Start

# Install
npm install design-comments

# Run setup
npx design-comments init

# Start dev server
npm run start:dev

The interactive setup will guide you through configuring GitHub OAuth and Jira integration (both optional).

Uninstalling

Always remove integration before uninstalling:

# Step 1: Remove integration
npx design-comments remove

# Step 2: Uninstall package
npm uninstall design-comments

# Step 3: Restart
npm run start:dev

Already Uninstalled by Mistake?

If your app is broken after uninstalling without running remove:

npm install design-comments
npx design-comments remove
npm uninstall design-comments

What the removal script does

• Removes imports from src/app/index.tsx
• Removes imports from src/app/AppLayout/AppLayout.tsx
• Notifies about webpack middleware (may require manual removal)
• Keeps .env and .env.server files

Usage

Creating Comments

1. Hover over any component to see a preview with a dashed blue border and component label
2. Click to attach a comment pin - the system detects React components automatically
3. View component details in the panel including name, type, tree path, and props

Managing Comments

• Toggle visibility - Enable/disable comments or use "Show pins" to view without creating new ones
• Resize widget - Drag the resize handle (300-800px width, 200px to viewport height)
• Pin behavior - Pins follow elements on scroll/resize; fade to 40% opacity if element is deleted
• Thread discussions - Reply to comments, close/reopen threads, view all in sidebar
• Remove pins - Delete comment threads as needed

How It Works

The system uses a hybrid approach:

React Component Detection (Primary)

• Detects components using React fiber nodes
• Extracts name, type, props, and component tree path
• Works with all React component types including HOCs

CSS Selector Fallback

• Uses data-testid, id, or tag + class + aria attributes
• Stores coordinates as fallback if element is deleted

Integrations

GitHub (Optional)

• Comments sync as GitHub Issues with component metadata
• Replies sync as issue comments
• Status changes (open/closed) sync bidirectionally

Jira (Optional)

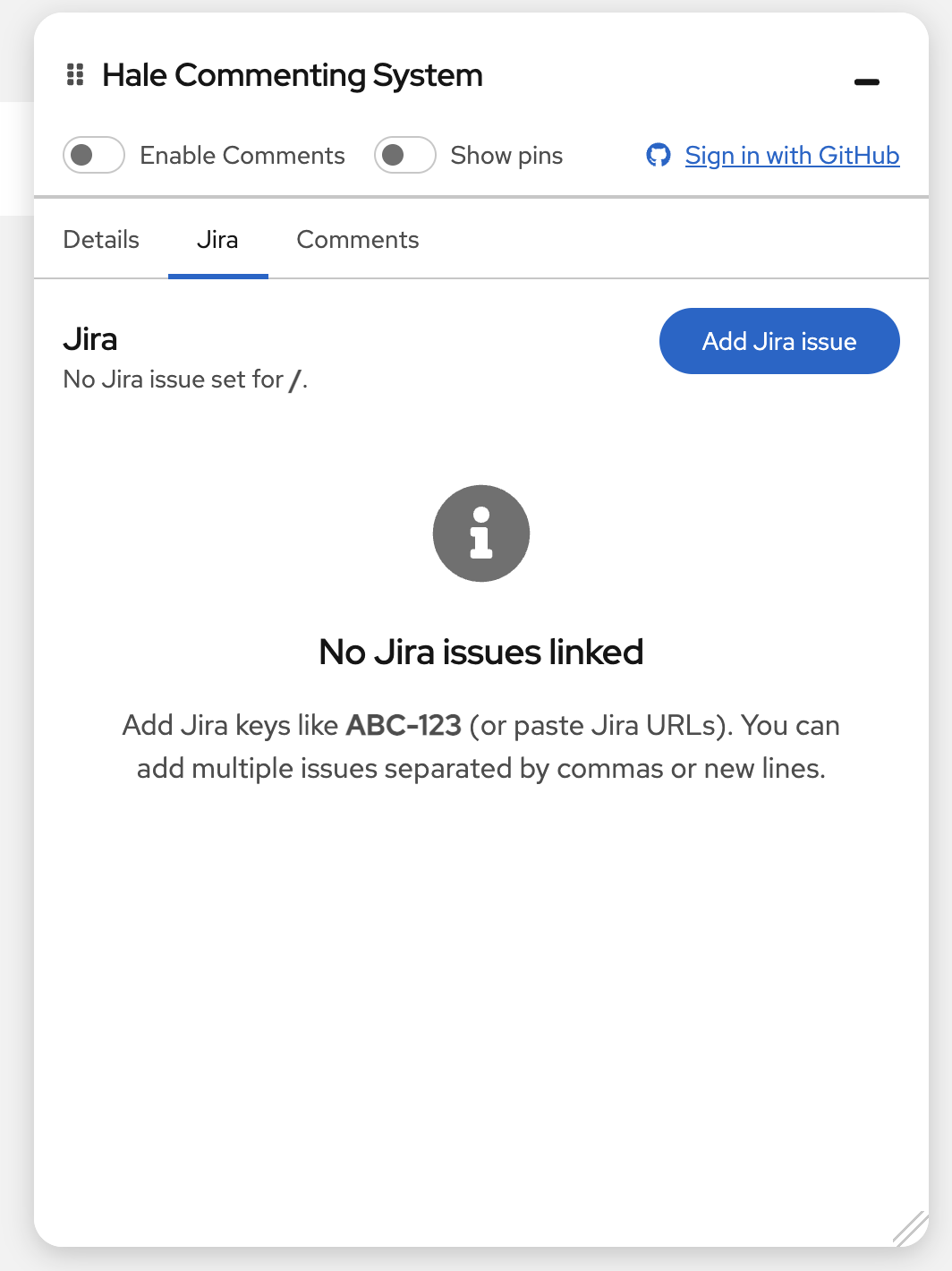

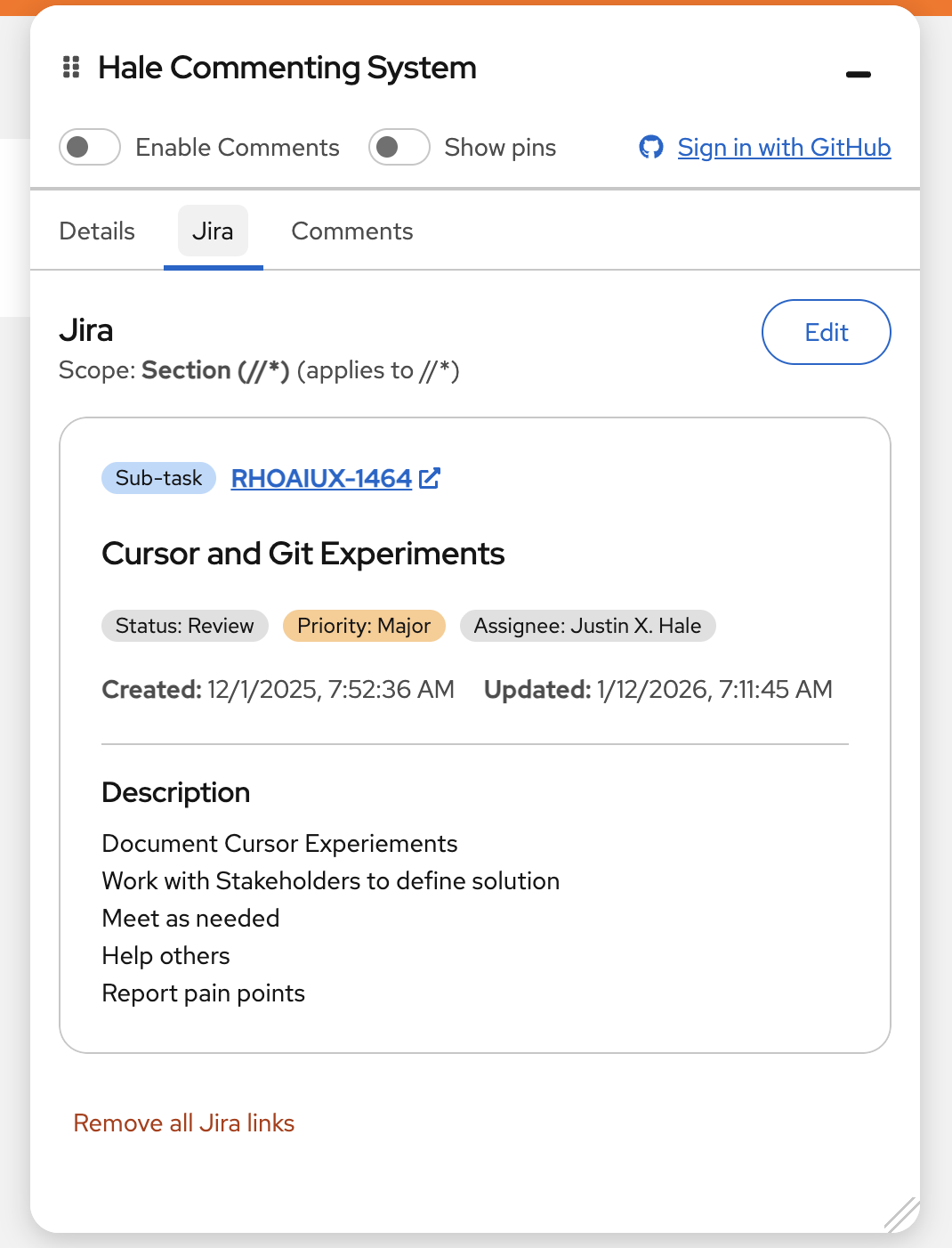

• Link Jira tickets to specific pages or sections
• View ticket details in the commenting panel
• Track design work alongside development

AI summaries (Optional)

• Use Summarize all threads, Summarize this page, or Summarize this thread in the Comments tab
• Local dev: webpack.dev.js exposes POST /api/discussions-summarize. Set MAAS_API_KEY and MAAS_ENDPOINT_URL (OpenAI-compatible base URL, e.g. https://api.openai.com) in .env or .env.server. Optional MAAS_MODEL (default gpt-4o-mini). If unset, the UI shows a friendly “not configured” message instead of failing hard.
• Production: build with SUMMARIZE_API_URL pointing to any HTTPS endpoint that accepts POST { "prompt": "..." } and returns JSON { "summary": "..." } (for example a small Cloudflare Worker or backend you host).

Configuration

.env (client-side, safe to commit)

• GitHub OAuth client ID, Jira base URL

.env.server (server-side secrets, auto-added to .gitignore)

• GitHub OAuth client secret, Jira API tokens
• Optional: MAAS_API_KEY, MAAS_ENDPOINT_URL, MAAS_MODEL for the local summarization proxy (see AI summaries above)

Production build

• Set SUMMARIZE_API_URL in the environment when running npm run build so the client calls your summarization backend (see webpack.common.js DefinePlugin). Do not put private API keys in .env if those values are bundled to the browser.

Requirements

• React 18+
• Node.js 18+ (for webpack middleware with native fetch())
• Webpack-based dev setup (for the init script and proxy middleware)

What Gets Modified

The init script automatically updates:

• src/app/index.tsx - Adds providers
• src/app/routes.tsx - Adds Comments route
• src/app/AppLayout/AppLayout.tsx - Adds panel and overlay components
• webpack.dev.js - Adds OAuth/Jira/summarize proxy middleware
• Creates src/app/Comments/Comments.tsx and config files

Local Testing

Click to expand testing instructions

Using npm link (Recommended)

# In package directory
npm run build && npm link

# In test app
npm link design-comments
npx design-comments init
npm run start:dev

# Clean up when done
npx design-comments remove
npm unlink design-comments && npm install

Using npm pack

# In package directory
npm run build && npm pack

# In test app
npm install /path/to/design-comments-*.tgz
npx design-comments init
npm run start:dev

Test Checklist

• Hover preview and pin creation
• Component detection (name, type, path, props)
• Pin positioning and dynamic tracking
• Widget resizing and toggles
• Element deletion handling
• Comments, replies, GitHub/Jira sync, and optional AI summaries

Development

npm install          # Install dependencies
npm run start:dev    # Start dev server
npm run build        # Production build

License

MIT

Support

For issues or questions, open an issue on GitHub.
