Return keyboard focus to terminal when pane context menu closes

[Mango Yen (mangokingTW)]

Note: English is not my native language; this PR description was written with the assistance of AI tools.

Summary of the Pull Request

When the pane context menu (opened via Menu/Apps key, Shift+F10, or Right-Click when rightClickContextMenu is enabled) is dismissed with Esc, keyboard focus currently remains trapped on the now-hidden menu item (AppBarButton or overflow MoreButton). Pressing Enter afterwards invokes the hidden command (e.g. reopening a flyout or splitting a pane) instead of sending input to the active shell.

This PR ensures keyboard focus is properly restored to the terminal (or active Find search box) when the context menu is dismissed.

References and Relevant Issues

• Closes [Windows Terminal - Context Menu]: Keyboard focus remains on the dismissed menu item after closing the context menu with the 'Esc' key. #20593
• References ESC from the Tab ContextMenu should return focus to the Terminal #5750 (tab context menu focus return)

Detailed Description of the Pull Request

Root Cause

CommandBarFlyout moves focus to its menu buttons or overflow toggle (MoreButton). When dismissed via Esc, XAML closes the flyout but does not restore focus to the underlying control, leaving focus trapped on the invisible element.

Proposed Changes

1. Top-Level Menu Dismissal (TermControl.cpp):
   • In Closed, checks if the currently focused element belongs to the closing menu (PrimaryCommands, SecondaryCommands, child flyouts, or internal MoreButton).
   • If Find (_searchBox) is open, restores focus to its textbox; otherwise restores focus to the terminal via Focus(FocusState::Programmatic).
   • Traversal is bounded to the menu's CommandBar ancestor to prevent cross-pane focus stealing in multi-pane layouts.
2. Submenu Dismissal (TerminalPage.cpp):
   • In handBackFocusOnClose, hands focus back to the parent button that opened the submenu using FocusState::Keyboard (falling back to FocusState::Programmatic).
   • Handles light-dismiss safely: if the parent button is detached, focus restoration defers cleanly to TermControl.
3. Shared Helper (Utils.h):
   • Extracted IsElementInCommandBarFlyout into WinRTUtils/inc/Utils.h to eliminate logic duplication across TermControl and TerminalPage.

Generative AI Disclosure

This pull request was developed with the assistance of Google Antigravity (Gemini Flash 3.8) for code exploration, edge-case analysis, and drafting this PR description. Problem investigation, focus contract definitions, manual testing, and final code verification were reviewed and directed by me.

Validation Steps Performed

Visual Demonstration

Both recordings capture the exact same top-level dismissal test (test_esc_from_the_top_level_hands_focus_back_to_the_terminal): navigating to Split pane, dismissing with Esc, then pressing Enter.

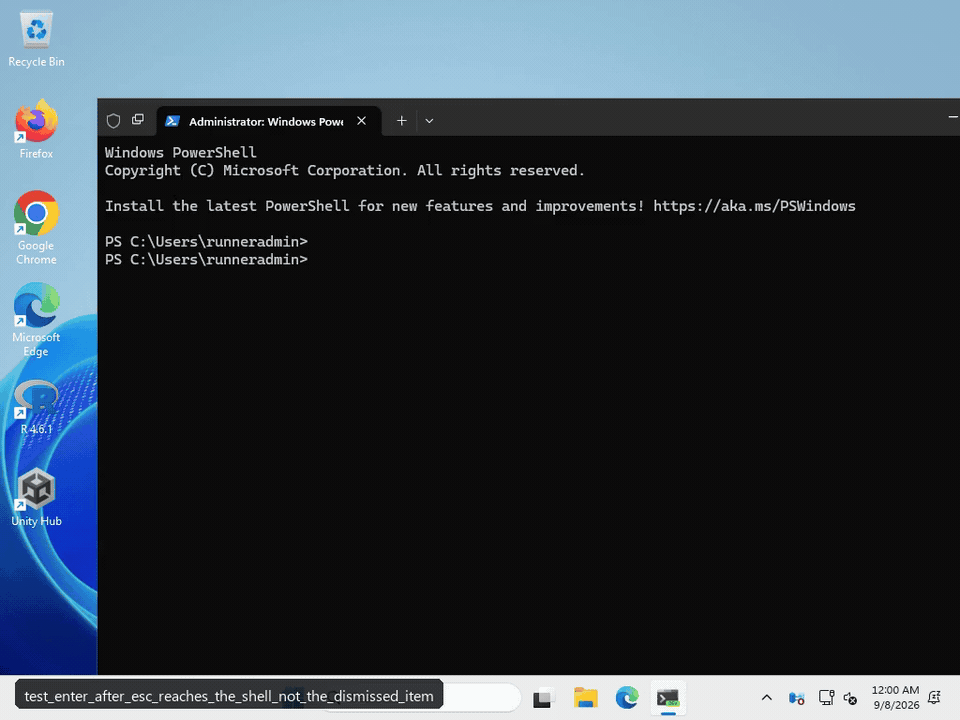

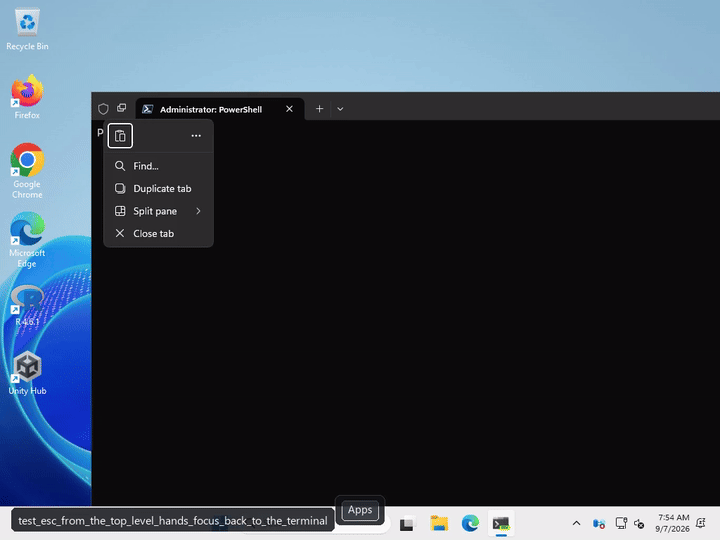

Unpatched (focus trapped on hidden button; Enter reopens menu)	Patched (focus returned to terminal; Enter reaches shell)
Clip: 39.4s – 48.0s of reproduction-20593-x64.mp4 From Run 34097704495 (verification-recording-windows-latest) • 39.5s - 41.5s: Menu opens, nav down to Split pane • 41.5s - 42.5s: Split pane entry highlighted • 42.6s: Esc pressed; menu disappears • 46.5s: Enter pressed • 46.9s: Submenu reopens in mid-air at (0, 0)	Clip: 27.0s – 34.0s of reproduction-20593-x64.mp4 From Run 34170503162 (verification-recording-windows-latest) • 27.0s - 29.2s: Menu opens, nav down to Split pane • 29.2s - 30.6s: Split pane entry highlighted • 30.7s: Esc pressed; menu disappears, focus returned to terminal • 32.0s: Enter pressed • 33.2s: Enter sends newline to shell prompt

Automated UI Testing & Key Edge Cases

Verification was conducted with an automated UI test harness running under wintegrate across Windows 11 x64 and ARM64 environments. wintegrate provides native Windows UI Automation drivers, process discovery, keyboard/mouse input injection, and automated screen recordings during CI and VM test runs.

The complete test suite (19 edge-case tests) and continuous screen recordings are maintained in companion PR #1 (fix/context-menu-focus-after-esc):

• CI Verification Run: Run 34170503162 (windows-latest x64 & windows-11-arm arm64)
• Continuous Screen Recordings:
  • verification-recording-windows-latest.zip (x64)
  • verification-recording-windows-11-arm.zip (arm64)
• Baseline (Unpatched) Run: Run 34097704495 with recording artifact verification-recording-windows-latest.zip

Key Test Scenario	Code Line	Unpatched Build (Observed Failure)	Patched Build	Result
Top-Level Context Menu Esc • Apps / Menu key (default trigger) • Shift+F10 (WCAG keybinding) • Mouse Right-Click (with rightClickContextMenu: true)	L396 L856 L886	❌ Failed (FocusStaysTrappedOnMenu) Focus remained trapped on invisible AppBarButton; pressing Enter re-opened the menu	✅ Passed Focus immediately returned to terminal; Enter sends newline to shell	Verified
Nested Submenu 2-Stage Esc • Split pane submenu	L345	❌ Failed (AssertionError) 1st Esc closed submenu but focus failed to return to parent button; 2nd Esc failed to return to terminal	✅ Passed 1st Esc returned focus to parent button; 2nd Esc returned focus to terminal	Verified
Overflow MoreButton (...) Esc	L665	❌ Failed (AssertionError) Focus trapped on invisible MoreButton; terminal cannot receive input	✅ Passed Single-pass ancestor traversal matched CommandBar; focus restored to terminal	Verified
Find Search Box Focus Return • Context menu Esc with Find open	L606	❌ Failed (AssertionError) Focus remained trapped on invisible menu item instead of returning to search box TextBox	✅ Passed Detects active _searchBox and accurately restores focus to search box TextBox	Verified
Multi-Pane Focus Isolation • Dismissing menu in split layout	L511 L767	❌ Failed (FocusStolenCrossPane) Dismissing Pane B menu left focus trapped on hidden item, terminal never received focus	✅ Passed Bounded tree search ensures each pane only handles its own menu without cross-pane interference	Verified
Rapid Input & Concurrency • Rapid Esc + Enter • Rapid typing after Esc	L950 L971	❌ Failed (AssertionError) Rapid keystrokes swallowed or triggered hidden actions; typed characters lost	✅ Passed Focus returned synchronously; subsequent keys and characters 100% delivered to shell	Verified
Submenu Light-Dismiss Safety • Clicking outside open submenu	L726	🛡️ Safety Invariant Test Verifies behavior when owner button is detached from Visual Tree during dismissal	✅ Passed (Safe Fallback) handBackFocusOnClose safely falls back without crash; focus returns cleanly	Verified

PR Checklist

• Closes [Windows Terminal - Context Menu]: Keyboard focus remains on the dismissed menu item after closing the context menu with the 'Esc' key. #20593
• Tests added/passed
• Documentation updated
• Schema updated (if necessary)
