fix(settings): link Settings mentions in prose and correct wrong destinations

[CrysisDeu]

Summary

The settings-redirect audit found 96 places where the product tells the user to go to Settings; only 21 were clickable and 7 frontend strings named a destination that does not exist. This PR lands the frontend half that needs no new infrastructure: (a) prose naming a real tab becomes a <SettingsLink>, (b) hand-written /settings/... literals go through the shared builder, (c) the 5 wrong-destination strings still on main are corrected in all 13 locale catalogs (the other 2, AWS Control's, were fixed upstream by #8471).

(a) Prose → <SettingsLink> (Trans idiom, <0>…</0> in catalogs)

InstancesViewport error footer → instances: SettingsLink fires onPlainClick and the viewport returns to its Local tab first, the same overlay rule the panel's hand-off button already follows (the link soft-navigates the local SPA underneath the opaque remote overlay). SettingsLink itself is now a guard-aware navigation surface: an unmodified primary click goes through useGuardedLeave (skipped when the target is the current address) and stays put when the page on screen vetoes, so a hand-authored Settings link can no longer unmount a dirty editor without the confirm the sidebar and palette already give; modified clicks are left to the browser. This makes SettingsLink a fourth wired exit on the leave-guard channel, on purpose: it is the one declarative Settings link, so asking there covers every prose link at once instead of per call site (NavigationLeaveGuard.tsx's inventory is updated to say so). The imperative navigate(settingsPath(...)) callers this PR only re-pointed at the builder (update modal and pill, mobile connect, approval-mode picker, chat voice branch) still do not ask — they are modal or menu actions the user just chose, and wiring them one by one is the per-caller model #8010 exists to retire, so they stay with #8010. SttSettings drops the "(Settings → About → Restart gateway)" parenthetical — the restart button is inline beside it.

Five audit sites are deliberately not migrated: OpsMissionControl/SettingsPanel's notifications note sits on a panel that holds unsaved provider secrets and registers no leave guard, so any new exit there discards a half-typed token — the sentence stays plain text (its de/es/fr/it/pt values still carry the English source, as on main — an audit leftover for a follow-up, not this fix); SessionColorPicker is mounted by no production component (dead code — a follow-up should delete it, not decorate it); UpdateFoundModal's update-failed sentence is unreachable (apiFailure guarantees a non-empty ApiError.message), so the pre-PR e.message || i18nT(...) shape stays; OnboardingFlow's "change anytime in Settings → Chat" sits inside a fixed inset-0 overlay whose open state is internal, so a link there would navigate underneath the overlay — and the copy says later, so it stays plain text; VoiceDisabledModal's "Settings → Voice" sentence sits two lines above a primary Open settings button that already makes the same call, so an inline link would duplicate it (the modal is unchanged).

(b) Hand-written literals → settingsPath() / <SettingsLink>

UpdateFoundModal, UpdatePill, MobileConnectModal, ChatPage voice branch (embedded branch untouched), TipCard (TIPS_SETTINGS_PATH deleted; no highlight yet — the Feature Tips toggle has no anchor). The two legacy <Navigate to="/settings/…"> redirects in App.tsx are left as literals on purpose: the feature-map gate reads any rewritten <Route> line as a route swap, and a builder call is not worth a feature-map edit for two redirects that never change.

(c) Copy fixes (en + 12 locales, en-XA regenerated via i18n:pseudo)

• Mochi mcp_empty / mcp_error_disabled / mcp_error_probe_failed: "Settings → MCP" → Agent Capabilities → Connections — the rail entry is labeled Agent Capabilities (nav.agent_capabilities) and the tab that hosts MCP servers is labeled Connections (CapabilitiesPage.tsx uses connections_label). The catalogs do not re-spell those words: every locale carries {{capabilities}} → {{tab}} and the call sites pass capabilitiesVars('connections') (destinationVars.ts), which reads the same label keys the Capabilities page renders — so a relabel cannot re-create the wrong-destination drift this PR fixes.
• AWS Control's two "Settings → Deploy" strings were superseded on main by aws-control: empty state points at "Settings -> Deploy", which does not exist #8471 (the empty state now registers profiles in place), so they are out of this PR.
• md-notebook connectHelp: "in Settings" → Agent Capabilities → Knowledge (capabilitiesVars('knowledge')).
• projectSkillsTrust.withdraw_hint: "the Skills settings page" → Agent Capabilities → Skills (capabilitiesVars('skills'); the withdraw list renders there, not in Settings).

SettingsLink.children becomes optional: react-i18next's <Trans components={[<SettingsLink … />]}> passes the element self-closing and injects the translated fragment at render time.

No linked issue: follow-up to the settings-redirect audit run in a dashboard session (parent: #8098).

Before / after

Same fixtured surface, same harness (website/scripts/capture-settings-redirects-{a,c}.mjs), run against a base-branch dist and this branch's dist. Each shot asserts the target sentence is visible before capturing.

#	Surface	Before	After

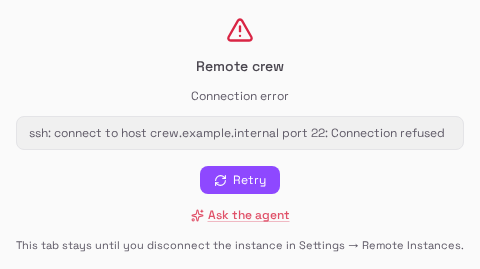

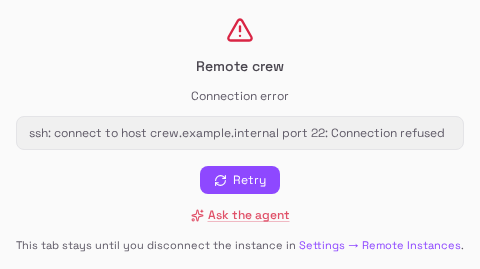

A2	Remote-instance viewport error footer

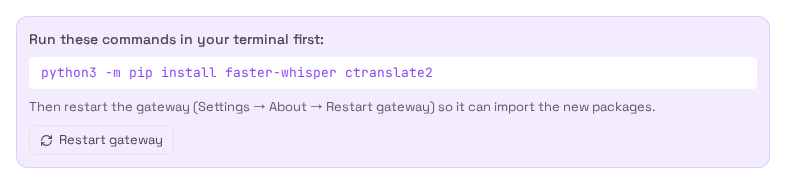

A7	STT prerequisites — redundant route parenthetical removed
C1	Mochi — MCP empty state (Settings → MCP ⇒ Agent Capabilities → Connections)

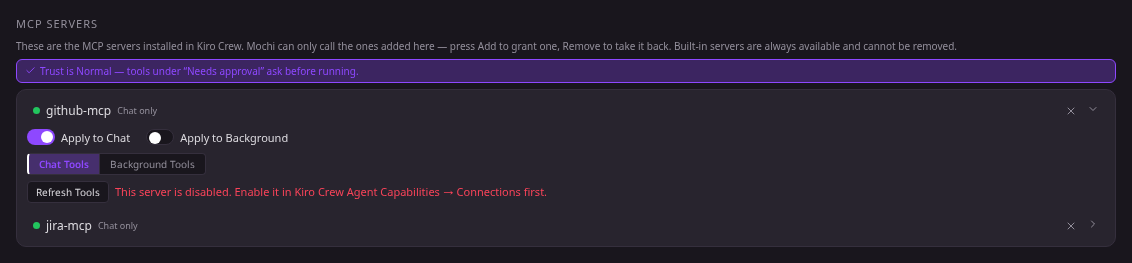

C2	Mochi — MCP server disabled error

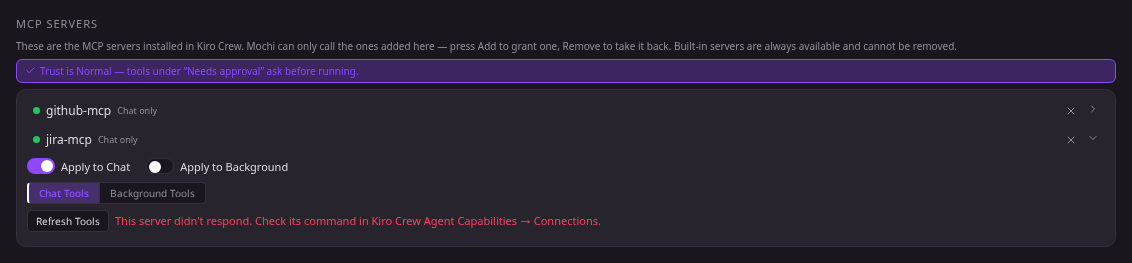

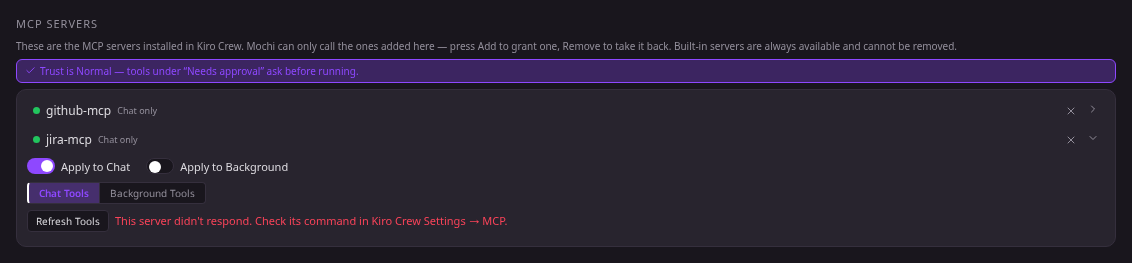

C3	Mochi — MCP probe failed error

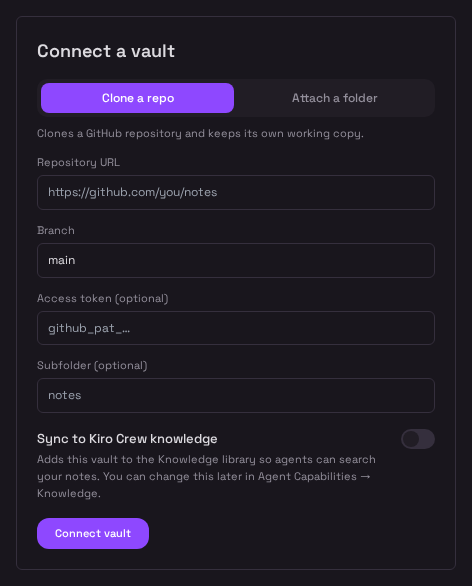

C6	md-notebook — Connect Vault help (Settings ⇒ Agent Capabilities → Knowledge)

Not captured (stated, not faked): C7 ProjectSkillsTrustDialog only opens from a live skill-picker selection.

Testing

• New settingsLinkMigrations.test.tsx (2): /settings/instances via catalog value + idiom; the three Capabilities sentences render exactly nav.agent_capabilities → <tab label> and carry only placeholders.
• SettingsLink.test.tsx (+3): a vetoing leave guard prevents the navigation and skips onPlainClick; onPlainClick runs only for an allowed unmodified primary click; a same-address target never asks the guard.
• Updated pinning test: InstancesViewport.test.tsx (link returns to Local on plain click, not on Cmd/Ctrl click).
• I18N_BASE_REF=origin/main node scripts/i18n-check.mjs: 19 checks PASS (changed-values, changed-passthrough at zero); every catalog shows exactly 7 modified lines and no new key.
• tsc -b clean, eslint 0 errors on changed files.

Pattern harvest

Rule candidate: lint
Pattern: a user-facing string that names a Settings tab ("Settings → X", "in Settings") without a <SettingsLink>, a hand-written /settings/ literal outside settingsPath.ts, or a catalog value that spells a rail / tab label (Agent Capabilities →, Capabilities →) instead of interpolating {{capabilities}} → {{tab}} — all three let the 7 wrong-destination strings drift unnoticed, and all three are greppable. The backend half (43 strings with no catalog path) needs a settings_target field convention first and is out of scope here.

[github-actions]

GPT 5.6 Review — ✅ human override accepted

Human judgment by @CrysisDeu overrides the GPT 5.6 finding for 0fdc5453aeeb81c66936740997b5eff603314215; the recorded reason is authoritative for this commit.

This comment is updated in place on each push.

The model was not re-run because an authorized human decision supersedes it.

False positive or not applicable? A repository writer can comment:
/ai-review override gpt 0fdc5453aeeb81c66936740997b5eff603314215: <one-sentence reason>

[github-actions]

Design Review (Fable 5) — ✅ PASS

Design-level review of 0fdc5453aeeb81c66936740997b5eff603314215 — updated in place on each push. A BLOCK verdict blocks PR readiness; PASS/CONCERNS are advisory.

All hunks are accounted for by the description, both temp-screenshots/ and capture scripts are established repo conventions, and the guard-wiring of SettingsLink is deliberate, documented in NavigationLeaveGuard.tsx's inventory, and pinned by tests. The one design-level signal: the PR builds destinationVars precisely so catalog values never re-spell rail/tab labels, yet the new instancesViewport catalog value hardcodes <0>Settings → Remote Instances</0> in all 13 locales — the same drift class, mitigated only by the fact that a stale-labeled link still lands correctly.

Design-Verdict: PASS

Guard-aware SettingsLink centralizes the leave-guard ask at the right layer; destination copy now reads live labels, closing the drift class it fixes.

Suggestions

• The new instancesViewport value spells <0>Settings → Remote Instances</0> literally in 13 catalogs — the drift class destinationVars.ts exists to prevent ("prose that names them must read the same keys instead of re-spelling the words"). A relabel leaves stale text (the link still lands right, so harm is confusion, not a dead end), and it is a built-in exception to the PR's own proposed lint. Interpolating label vars inside the <0>…</0> fragment closes it.

[DESIGN-REVIEWED] 0fdc545

[github-actions]

First Principles Review (Fable 5) — ✅ PASS

Premise-level review of 0fdc5453aeeb81c66936740997b5eff603314215 — why this exists and whether the shipped surface is the smallest honest version. Updated in place on each push. A BLOCK verdict blocks PR readiness; PASS/CONCERNS are advisory.

All checks are done. The change survives every lens: the copy fixes sit at cause level (labels interpolated from the same keys the Capabilities page renders), the deletions are real, the literal sweep is verifiably complete, and the evidence artifacts follow the repo's own recorded convention.

First-Principles-Verdict: PASS

A fix that lands at cause level — wrong destinations become label interpolations, prose becomes the one shared link, and two things get deleted.

What this change ships

Intent: stop telling users to go to Settings destinations they can't click or that don't exist — a FIX.

1. Remote-instance error footer's "Settings → Remote Instances" is now clickable and returns to Local first — justified
2. Every prose Settings link now asks the page's leave guard; modified clicks untouched — declared; derived (new exits must not discard drafts)
3. "Settings → MCP" / "in Settings" / "Skills settings page" corrected to Agent Capabilities → tab, 13 locales — justified, cause-level ({{capabilities}} → {{tab}} reads the rendering page's own label keys)
4. STT "(Settings → About → Restart gateway)" parenthetical removed — justified deletion (button is inline)
5. Update modal/pill, mobile connect, chat voice route through settingsPath() — justified; sweep verified complete (remaining literals: builder itself + 2 declared App.tsx redirects)
6. TipCard uses SettingsLink; TIPS_SETTINGS_PATH deleted — justified deletion (0 other importers)
7. SettingsLink.children optional for the <Trans> self-closing idiom — derived (react-i18next platform rule)
8. onPlainClick hook — one consumer (InstancesViewport), but the minimal seam for the overlay rule; no smaller shape exists in a shared component
9. Two capture scripts + 12 before/after PNGs — convention-mandated evidence (PR template names temp-screenshots/<feature>/; 422 sibling capture scripts; cleanup workflow prunes)
10. NavigationLeaveGuard exit inventory updated same-commit — mandated by the docs-in-same-commit rule

Watch

• CAPABILITIES_TAB_LABEL_KEY (destinationVars.ts) re-states the tab→label-key mapping CapabilitiesPage.tsx:50-65 defines inline (3 keys in each, counted). A value relabel can't drift, but swapping a tab to a different key on the page would — settingsLinkMigrations.test.tsx pins literals, not the page's defs. Having CapabilitiesPage read its three labels through this map would close it; the standalone module itself is correct (Mochi's separate Vite entry can't import the page).

[FIRST-PRINCIPLES-REVIEWED] 0fdc545

[github-actions]

UX Review (Fable 5) — ✅ PASS

UX-level review of 0fdc5453aeeb81c66936740997b5eff603314215 — updated in place on each push. A BLOCK verdict blocks PR readiness; PASS/CONCERNS are advisory.

UX-Verdict: PASS

Every rewritten pointer now names a destination that exists, and the one new link keeps its promise: it leaves the remote tab first, then navigates, or stays put when a draft is at stake.

Suggestions

• apps.mochi.settingsPanel.mcp_empty / mcp_error_disabled / mcp_error_probe_failed render as "…in Kiro Crew Agent Capabilities → Connections" (screenshot after/c2-mochi-mcp-disabled.png), which reads as one proper noun; insert the preposition — "in Kiro Crew, under {{capabilities}} → {{tab}}" — so the product name and the rail entry stay separable.

[UX-REVIEWED] 0fdc545

[github-actions]

Opus 4.8 Review — ✅ no blocking findings

Reviewed 0fdc5453aeeb81c66936740997b5eff603314215 — this comment is updated in place on each push.

Review details

No findings.

[OPUS-REVIEWED] 0fdc545

Verdict parsed from the review's SHA-scoped output markers for commit 0fdc5453aeeb81c66936740997b5eff603314215.

False positive or not applicable? A repository writer can comment:
/ai-review override fable 0fdc5453aeeb81c66936740997b5eff603314215: <one-sentence reason>

[CrysisDeu]

/ai-review override gpt 74c758f: ErrorNotice cannot be used here — Mochi's Settings window is a separate Vite entry (settings.html, bare createRoot) that ships no Tailwind stylesheet (its 20 renderer components use inline styles and hand-named classes only, and its own PanelErrorBoundary hand-rolls role="alert" for that reason), so ErrorNotice's Tailwind-class inline variant would render unstyled; this PR only interpolates the destination label into the existing live-region string and does not add or move the error surface (F1 span=SettingsPanel.tsx:851 / :1205).

[github-actions]

AI-review override not recorded: keep the reason to 500 characters or fewer.

[CrysisDeu]

Status at 74c758f53 (rebased onto main after #8471 superseded the AWS Control copy fixes; those two strings are out of this PR now). All 5 review lanes PASS; the two remaining reds are inherited from main, not from this diff:

• Bundle Size Gate — App chunk over budget by 1.5 KB. Pristine origin/main (d3e67b7e9) fails the same gate by 1.3 KB on its own; fix is the one-line ceiling re-measure in fix(ci): re-measure the drifted App-chunk bundle ceiling #8519.
• Backend Tests (Windows) (4) — test/test_slot_close_recreation_race.py ('_Req' object has no attribute 'can_read_body'), a file main gained via fix(dashboard): preserve concurrent same-key recreate during slot-close teardown (#7191) #7212 today; this PR has no Python changes and four other open PRs fail the identical shard. Fixes in flight: fix(test): feed read_bounded_json's stream contract in the slot-close race stub #8534 / test(dashboard): give the slot-close race double the body surface read_bounded_json reads #8536.

I will rebase once after those land and let CI re-run; no change to this branch is planned in the meantime.

[CrysisDeu]

/ai-review override gpt a0cb3db: ErrorNotice cannot be used here — Mochi's Settings window is a separate Vite entry (settings.html, bare createRoot) that ships no Tailwind stylesheet (its 20 renderer components use inline styles and hand-named classes only, and its own PanelErrorBoundary hand-rolls role="alert" for that reason), so ErrorNotice's Tailwind-class inline variant would render unstyled; this PR only interpolates the destination label into the existing live-region string and does not add or move the error surface (F1 span=SettingsPanel.tsx:851 / :1205).

[github-actions]

AI-review override not recorded: keep the reason to 500 characters or fewer.

[CrysisDeu]

/ai-review override gpt 0fdc545: ErrorNotice cannot render here: Mochi's Settings window is a separate Vite entry (settings.html, bare createRoot) with no Tailwind stylesheet, so ErrorNotice's Tailwind-class inline variant would be unstyled (Mochi's own PanelErrorBoundary hand-rolls role=alert for the same reason); the flagged span is pre-existing and this PR only interpolates the destination label into its string.

[github-actions]

Human judgment recorded

@CrysisDeu marked the gpt AI finding as false positive, not applicable, or explicitly accepted for 0fdc5453aeeb81c66936740997b5eff603314215.

ErrorNotice cannot render here: Mochi's Settings window is a separate Vite entry (settings.html, bare createRoot) with no Tailwind stylesheet, so ErrorNotice's Tailwind-class inline variant would be unstyled (Mochi's own PanelErrorBoundary hand-rolls role=alert for the same reason); the flagged span is pre-existing and this PR only interpolates the destination label into its string.

This decision applies only to this commit. A new push requires a new judgment.
