Add realistic 3D editor view

[BenJule]

Summary

Adds an optional realistic rendering mode to the normal 3D editor view.

The new mode uses Phong shading and can optionally apply screen-space ambient occlusion (SSAO) before the existing FXAA pass.

This work is based on the corresponding OrcaSlicer implementation from commit cf8bb38dc6af95d27fc85f37329ee542d2e76ac3, adapted to Bambu Studio's current rendering pipeline.

Screenshot

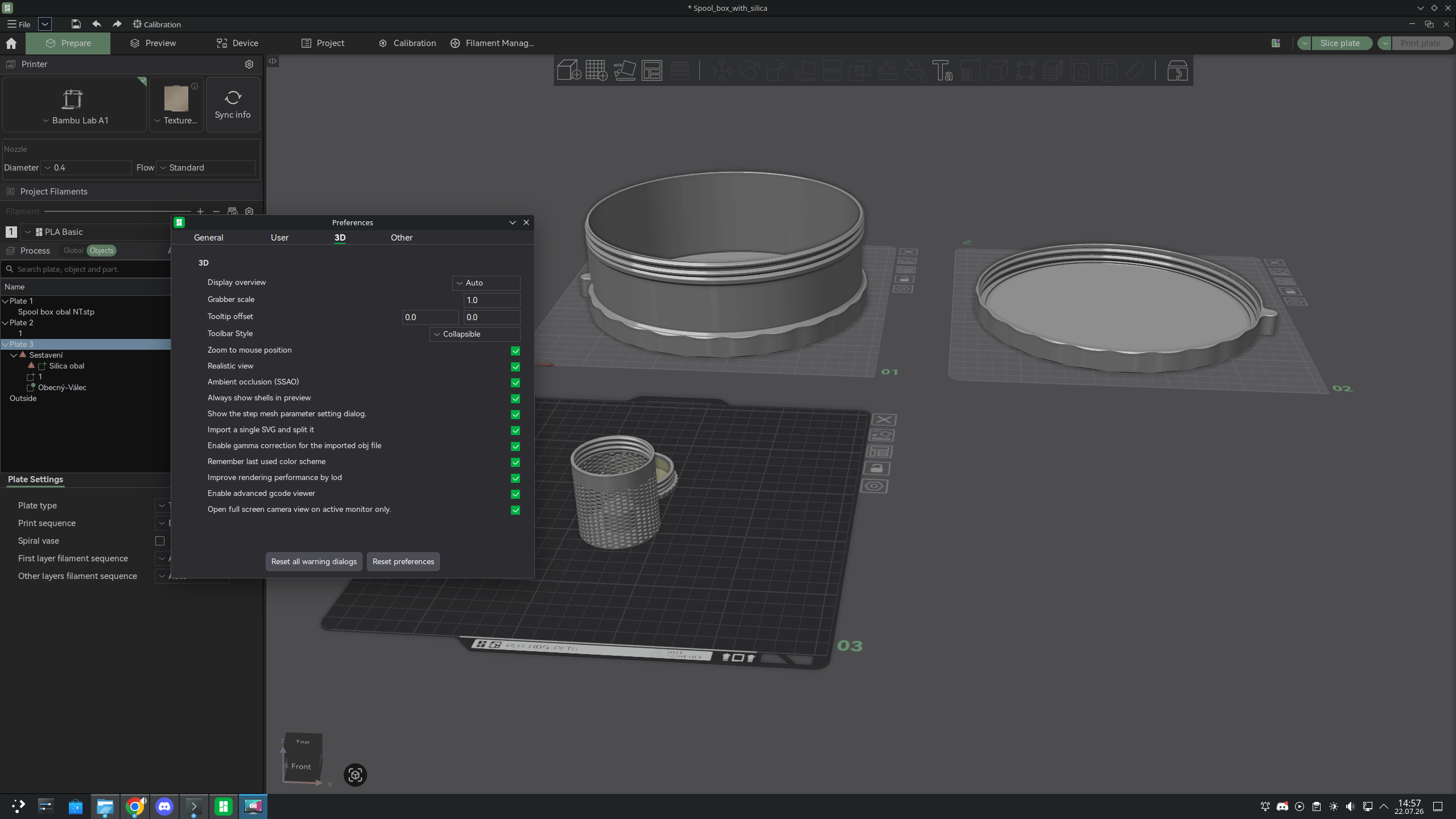

Realistic view with ambient occlusion enabled (Preferences → 3D), rendered on a graphical system:

Behavior

• disabled by default
• available only in the normal 3D editor view
• requires OpenGL 3.1 or newer
• falls back to the existing Gouraud shader when Phong is unavailable
• SSAO is enabled only when both the Phong and SSAO shaders are available
• disabled for painting, picking, assembly rendering and thumbnails
• preserves the existing FXAA post-processing path

Implementation

• adds GLSL 1.10 and 1.40 Phong shaders
• adds GLSL 1.10 and 1.40 SSAO shaders
• adds optional depth textures to the framebuffer implementation
• integrates SSAO before FXAA
• adds preferences for Realistic view and Ambient occlusion (SSAO)

Validation

• git diff --check passes
• targeted compilation of the modified C++ translation units passes
• a Linux CI build successfully compiled and linked src/bambu-studio
• the packaging stage subsequently failed because the generated BuildLinuxImage.sh lacked executable permission; this occurred after the application had linked

The final commit additionally contains null checks that prevent SSAO from being enabled when the Phong or SSAO shader is unavailable.

Pending validation

• runtime GLSL compilation on a graphical system
• visual comparison of Gouraud, Phong and Phong with SSAO
• interaction checks for selection, painting and other editor tools

[Haidiye00]

Hello, please merge it into one patch. Also, I noticed that the preference settings for Orca's realistic rendering are all grouped together, for a total of 4. Did you refer to Orca's code

[BenJule]

Thanks for the review.

Yes, this implementation is based on OrcaSlicer commit cf8bb38dc6af95d27fc85f37329ee542d2e76ac3. However, it was adapted to Bambu Studio's current rendering pipeline, OpenGL management and preferences layout rather than copied directly.

The main differences between the referenced Orca implementation and this Bambu Studio implementation are:

• Orca places these settings in a separate Graphics tab, while Bambu Studio keeps them in the existing 3D Settings tab.
• The referenced Orca commit exposes three individual realistic-view effects:
  • Phong shading
  • SSAO ambient occlusion
  • Shadows
• Bambu Studio instead uses a dedicated “Realistic view” master switch and groups four related options under “Realistic Rendering”:
  • Realistic view
  • Ambient occlusion (SSAO)
  • Plate shadow
  • Smooth normals
• Smooth normals are an additional Bambu Studio option and are not part of the referenced Orca commit.
• The SSAO implementation was adapted to Bambu Studio's current volume-rendering path and uses a world-space normal G-buffer aligned with the existing camera, object and depth transformations.
• The plate-shadow implementation uses a planar projection integrated into Bambu Studio's existing build-plate and volume-rendering stages.
• MSAA is connected to Bambu Studio's current OpenGLManager and can be updated through the existing canvas-refresh flow. In the referenced Orca implementation, changing the MSAA multiplier requires an application restart.
• Orca provides a freely adjustable FPS cap from 0 to 240 FPS. Bambu Studio currently provides predefined values for Unlimited, 30, 60, 90, 120, 144 and 240 FPS.
• Bambu Studio applies the frame-rate limit to the interactive 3D and Preview canvases without blocking the user interface, while assembly exports remain unlimited.
• The FPS overlay is integrated into Bambu Studio's existing ImGui overlay rendering and is omitted from the assembly view.

The complete change has now been squashed into a single signed commit.

The resulting source tree is unchanged from the version successfully compiled, linked, packaged and archived by the previous Linux Jenkins build. I will also run the final Jenkins validation against the new squashed commit hash.

Thanks again for reviewing the implementation.

[BenJule]

The final Linux Jenkins validation has now also completed successfully against the squashed commit. It configured, compiled, linked, packaged and archived Bambu Studio successfully.

[Haidiye00]

Hello, please provide the latest GIF recording video. We would like to see the preference settings and the actual rendering effect now

[BenJule]

@Haidiye00 Thanks for the feedback.

Attached is the latest GIF recording from the current PR build. It shows:

• the grouped rendering preference settings
• the actual rendering effect on the model

Please let me know if you would like any additional test coverage.
