Home

Welcome to the SPSA wiki!

The purpose of this package is to provide multivariable optimizers using SPSA. Although other optimizers exist, not many implement SPSA, which has various pros and cons. Additionally, SPSA has few requirements so that you don't have to install large packages like scipy just to optimize a function.

Getting Started

PIP Install

Unix/macOS:

python3 -m pip install spsa

Windows:

py -m pip install spsa

Usage

import spsa

def f(x):
    return ...

x = spsa.minimize(f, ...)

Sphere

The sphere function is a simple test function for optimization. It is the squared norm of the input, which is minimal when x = 0.

import numpy as np

def sphere(x: np.ndarray) -> float:
    """Returns the square of the norm."""
    return np.linalg.norm(x) ** 2

Trying to find its minima starting from [1, 2, 3] may give something similar to the following output.

>>> import spsa
>>> spsa.minimize(sphere, [1, 2, 3])
array([ 3.23484811e-26, -2.33465190e-24,  1.04123278e-25])
>>> # Results may vary.

Let's try it in 100 dimensions and see what the largest component is.

>>> np.abs(spsa.minimize(sphere, range(100))).max()
0.0004725157858277078
>>> # Results may vary.

This is pretty good considering the furthest component (the last one) starts at 99 and converges to ~ 4.7e-4.

Regression

We can do polynomial regression using numpy.polyomial's Polynomial.fit on a dataset, but what if we want to apply it to an entire interval of points? Let's try using spsa to match a polynomial function to exp(x) from -1 to 1.

First, we need to define the objective function, the error between the polynomial and exp(x). However, we cannot define it over every point from -1 to 1. Instead, we can sample a random point from -1 to 1 instead, using an rng generator.

from math import exp
from typing import Iterator

import numpy as np
from numpy.polynomial import Polynomial

def error(coef: np.ndarray, rng: Iterator[float]) -> float:
    """Computes the error between `Polynomial(coef)` and `exp` at a random point."""
    poly = Polynomial(coef)
    x = next(rng)
    return (poly(x) - exp(x)) ** 2

We can then minimize the error using spsa.minimize. To fill in for the rng, we can use spsa.random.iterator.regression(-1, 1) to generate random points from -1 to 1.

Let's try matching a quadratic polynomial.

from functools import partial

import spsa
from spsa.random.iterator import regression

coef = spsa.minimize(partial(error, rng=regression(-1, 1)), [0, 0, 0])
poly = Polynomial(coef)

To see how well we actually did, we will need the matplotlib package to graph our results.

import matplotlib.pyplot as plt

def plot(poly: Polynomial) -> None:
    """Plot the results."""
    x = np.linspace(-1, 1)
    plt.plot(x, np.exp(x), label="exp")
    plt.plot(x, poly(x), label="poly")
    plt.legend(loc="upper left")
    plt.xlabel("x")
    plt.ylabel("y")
    plt.title("Polynomial Regression for exp(x)")
    plt.show()

plot(poly)

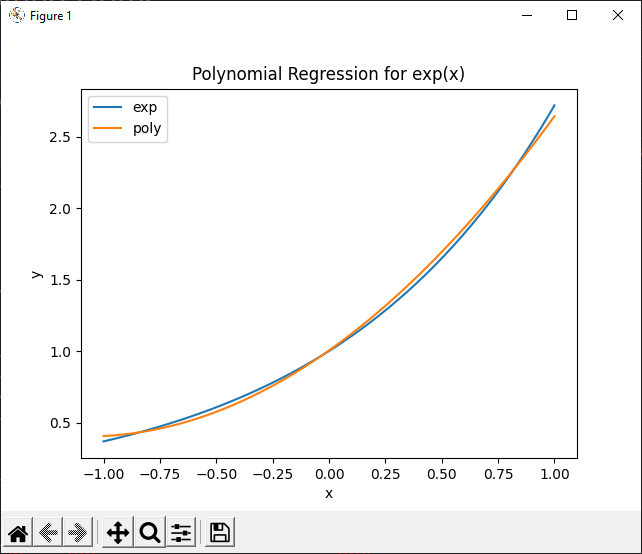

You should end up with a graph similar to this:

Despite the fact that we've only provided an interval and the error at a random point, the polynomial regression turned out really well.

Let's try bumping up the polynomial degree by one.

coef = spsa.minimize(partial(error, rng=regression(-1, 1)), [0, 0, 0, 0])
poly = Polynomial(coef)

plot(poly)

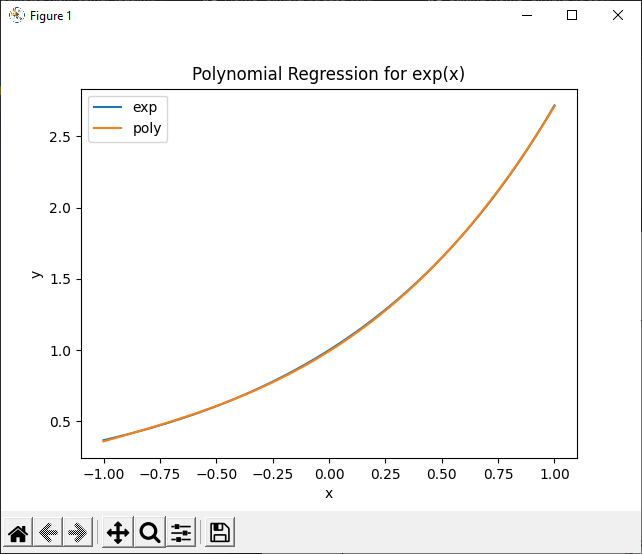

You should end up with a graph similar to this:

Amazing! Apparently it turns out a cubic polynomial is a pretty solid estimate for exp(x) from -1 to 1.
