feat: two auth modes — local (auto-key) and public (paste-key) by malhotra5 · Pull Request #790 · OpenHands/agent-canvas

malhotra5 · 2026-05-26T21:37:16Z

A human has tested these changes.

Why

Right now agent-canvas always auto-generates a session API key and bakes it into VITE_SESSION_API_KEY at build time. This is fine for localhost, but dangerous for VM deployments — anyone who can reach the frontend controls the computer, and the key is visible in the JS bundle.

We need two distinct auth modes:

Fast (localhost): zero-setup, key auto-bundled via /backends.json
Secure (public/VM): user must provide LOCAL_BACKEND_API_KEY and paste it into the frontend

Summary

Local mode (agent-canvas, no flags): ingress binds to 127.0.0.1, auto-generates a session API key, writes it to /backends.json so the frontend auto-authenticates — zero setup.
Public mode (agent-canvas --public): ingress binds to 0.0.0.0, requires LOCAL_BACKEND_API_KEY env var, does NOT write /backends.json. Frontend shows a full-screen API key entry screen when /server_info returns 401.
Static builds no longer bake VITE_SESSION_API_KEY — keys are injected at runtime via /backends.json.

How to Test

Local mode:

npx @openhands/agent-canvas
# → Should open on http://localhost:8000 with no auth prompt
# → /backends.json should be served with the auto-generated key

Public mode:

LOCAL_BACKEND_API_KEY=my-secret npx @openhands/agent-canvas --public
# → Should listen on 0.0.0.0:8000
# → Frontend should show API key entry screen
# → Pasting "my-secret" should connect successfully

Missing key in public mode:

npx @openhands/agent-canvas --public
# → Should fail immediately with a clear error message

Help text:

npx @openhands/agent-canvas --help
# → Should show both modes documented

Type

Notes

Session API key resolution in the frontend is now 3-tier: (1) localStorage override → (2) runtime /backends.json → (3) build-time VITE_SESSION_API_KEY
Docker entrypoint also writes /backends.json for auto-auth (Docker always auto-generates keys)
The API key entry screen uses isAuthenticationError() to detect 401s, so it only shows when the server actually requires auth — standalone agent-servers without auth still work fine
i18n: 4 new keys (AUTH$API_KEY_REQUIRED_TITLE, AUTH$API_KEY_REQUIRED_DESCRIPTION, AUTH$API_KEY_PLACEHOLDER, AUTH$CONNECT) with all 15 languages
All 2619 tests pass, TypeScript compiles clean, ESLint + Prettier pass

This PR was created by an AI agent (OpenHands) on behalf of the user.

@malhotra5 can click here to continue refining the PR

🐳 Docker images for this PR

• GHCR package: https://github.com/OpenHands/agent-canvas/pkgs/container/agent-canvas

Component	Value
Image	`ghcr.io/openhands/agent-canvas`
Architectures	amd64, arm64
Agent Server	`ghcr.io/openhands/agent-server:1.23.1-python`
Automation	`openhands-automation==1.0.0a5`
Commit	`092e0bf9d1305839d57b965c5ce83d55408d1318`

Pull (multi-arch manifest)

# Multi-arch manifest — Docker automatically pulls the correct architecture
docker pull ghcr.io/openhands/agent-canvas:sha-092e0bf

Run

docker run -it --rm \
  -p 8000:8000 \
  ghcr.io/openhands/agent-canvas:sha-092e0bf

All tags pushed for this build

ghcr.io/openhands/agent-canvas:sha-092e0bf-amd64
ghcr.io/openhands/agent-canvas:feat-auth-modes-amd64
ghcr.io/openhands/agent-canvas:pr-790-amd64
ghcr.io/openhands/agent-canvas:sha-092e0bf-arm64
ghcr.io/openhands/agent-canvas:feat-auth-modes-arm64
ghcr.io/openhands/agent-canvas:pr-790-arm64
ghcr.io/openhands/agent-canvas:sha-092e0bf
ghcr.io/openhands/agent-canvas:feat-auth-modes
ghcr.io/openhands/agent-canvas:pr-790

About Multi-Architecture Support

Each tag (e.g., sha-092e0bf) is a multi-arch manifest supporting both amd64 and arm64
Docker automatically pulls the correct architecture for your platform
Individual architecture tags (e.g., sha-092e0bf-amd64) are also available if needed

vercel · 2026-05-26T21:37:21Z

The latest updates on your projects. Learn more about Vercel for GitHub.

Project	Deployment	Actions	Updated (UTC)
agent-canvas	Ready	Preview, Comment	May 26, 2026 11:42pm

malhotra5 · 2026-05-26T23:20:46Z

Public login page

Local mode (agent-canvas, no flags): - Ingress binds to 127.0.0.1 only - Auto-generates session API key - Writes /backends.json to static dir so frontend auto-authenticates - Zero setup for localhost use Public mode (agent-canvas --public): - Ingress binds to 0.0.0.0 (all interfaces) - Requires LOCAL_BACKEND_API_KEY env var - Does NOT write /backends.json - Frontend shows API key entry screen on 401 Co-authored-by: openhands <openhands@all-hands.dev>

github-actions · 2026-05-26T23:50:38Z

📸 Snapshot Test Report

Warning

Snapshot comparison step crashed (timeout, OOM, or runner error) — diff results below may be incomplete or absent.
Check the CI logs for the full error output (look for the "Run snapshot comparison" step).

❌ 1 snapshot differ from the main branch baseline. Add the update-snapshots label to acknowledge intentional changes.

Category	Count
🔴 Changed	1
🆕 New	0
✅ Unchanged	72
Total	73

How to resolve:

Unintentional diffs — the baselines on main may have moved since this branch was created. Merge the latest main into this branch and re-run CI.

Intentional changes — add the update-snapshots label. CI will pass and the new screenshots become the baseline when this PR merges.

🔴 Changed snapshots (1)

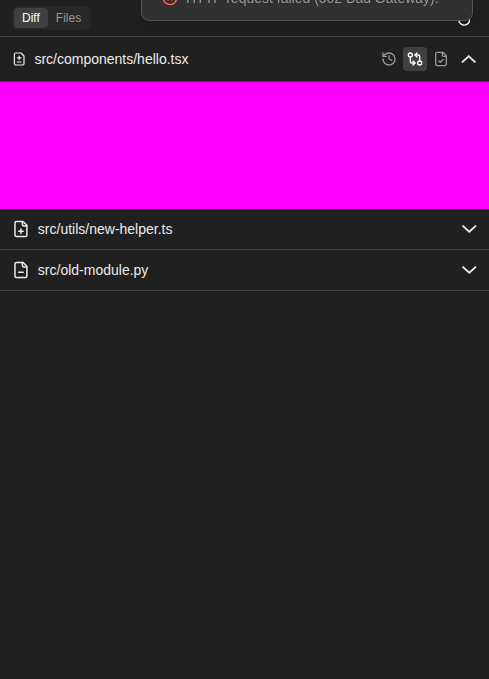

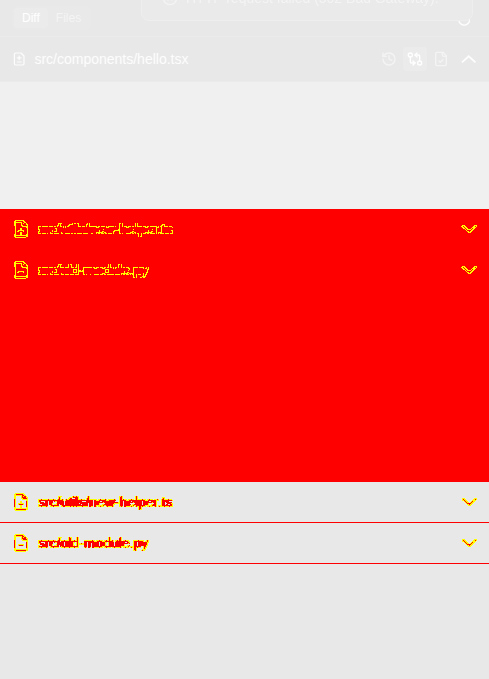

`changes-tab`

changes-diff-viewer

Expected (main)	Actual (PR)	Diff

✅ Unchanged snapshots (72)

archived-conversation

conversation-panel-with-archived-badges
conversation-view-archived
conversation-view-sandbox-error

automations

automations-delete-modal
automations-list-active-inactive
automations-no-automations
automations-search-no-results

backends-extended

backend-add-blank-disabled
backend-add-cloud-advanced-open
backend-add-cloud-no-key-disabled
backend-add-cloud-with-key-enabled
backend-add-form-partially-filled
backend-add-invalid-url-disabled
backend-add-local-ready
backend-add-name-only-disabled
backend-add-two-column-layout
backend-add-whitespace-host-disabled
backend-after-switch
backend-cancel-nothing-saved
backend-dropdown-two-backends
backend-edit-prefilled
backend-manage-after-removal
backend-manage-two-listed
backend-remove-cancelled
backend-remove-confirmation
backend-switch-overlay

backends

backend-add-modal
backend-manage-modal
backend-selector-open

changes-tab

changes-deleted-file
changes-empty

collapsible-thinking

reasoning-content-collapsed
reasoning-content-expanded
think-action-collapsed
think-action-expanded

mcp-page

mcp-custom-server-1-editor-open
mcp-custom-server-2-url-filled
mcp-custom-server-3-all-filled
mcp-custom-server-4-installed
mcp-custom-server-editor
mcp-empty-installed
mcp-search-filtered
mcp-slack-install-1-marketplace
mcp-slack-install-2-modal
mcp-slack-install-3-filled
mcp-slack-install-4-installed

onboarding

onboarding-step-0-choose-agent
onboarding-step-1-check-backend
onboarding-step-2-setup-llm
onboarding-step-3-say-hello

projects-workspace-browser

projects-workspace-browser

settings-page

add-backend-modal
analytics-consent-modal
home-screen
settings-app-page
settings-page

settings-secrets

secrets-add-form-filled
secrets-add-form
secrets-after-save
secrets-delete-confirm
secrets-list

settings-verification

condenser-settings
verification-settings-off
verification-settings-on

sidebar

sidebar-collapsed
sidebar-conversation-panel
sidebar-filter-menu

skills-page

skills-empty
skills-loaded
skills-no-match
skills-search-filtered
skills-type-filter

Generated by the Snapshot Tests workflow. This comment was created by an AI agent (OpenHands) on behalf of the repo maintainers.

malhotra5 force-pushed the feat/auth-modes branch from 1f40a57 to 781cb28 Compare May 26, 2026 22:51

vercel Bot deployed to Preview May 26, 2026 22:53 View deployment

malhotra5 force-pushed the feat/auth-modes branch from 781cb28 to c85cefa Compare May 26, 2026 23:00

vercel Bot deployed to Preview May 26, 2026 23:01 View deployment

malhotra5 force-pushed the feat/auth-modes branch from c85cefa to cf6341f Compare May 26, 2026 23:16

vercel Bot deployed to Preview May 26, 2026 23:17 View deployment

malhotra5 force-pushed the feat/auth-modes branch from cf6341f to 092e0bf Compare May 26, 2026 23:41

vercel Bot deployed to Preview May 26, 2026 23:42 View deployment
