ObexDNS

Privacy-First Protective DNS Resolver & DoH / DoT Server

Protect your first hop on the internet · Dual-Engine: Cloudflare Workers Edge or Standalone Server (VPS / Linux / macOS / Windows)

English | 中文 (简体) | 中文 (正體)

📖 Introduction

ObexDNS (formerly DNS Worker) is a high-performance, privacy-first protective DNS resolution system built with a Dual-Engine Architecture. It can be deployed either as a zero-maintenance serverless application on Cloudflare Workers edge network, or run completely independent of Cloudflare as a standalone server on your own VPS, home server, or bare-metal machine (Linux, macOS, Windows) with native SQLite storage.

Whether you need global edge resolution across 300+ cities or 100% self-hosted data sovereignty with classic UDP 53 and native Android Private DNS (DoT 853), ObexDNS provides an enterprise-grade resolver with granular filtering, instant local-first analytics, and post-quantum end-to-end encrypted query logs.

⚖️ Dual-Engine Architecture & Deployment Matrix

Feature / Capability	🖥️ Standalone Server / VPS (Cloudflare-Free)	☁️ Cloudflare Workers Edge
Primary Use Case	Complete data sovereignty, home lab, direct router DNS, Android DoT	Zero-maintenance, global low-latency edge resolution
Hosting & Runtime	Linux / VPS / macOS / Windows (`Node.js >= 22.5.0`)	Cloudflare Workers Edge Network (300+ PoPs worldwide)
Storage Backend	Native Node.js SQLite (`node:sqlite`) on local NVMe/SSD	Cloudflare D1 (Global distributed serverless database)
Supported Protocols	UDP 53 (RFC 1035) + DoT 853 (RFC 7858) + DoH (RFC 8484)	DoH (RFC 8484 over HTTPS)
Data Sovereignty	100% Self-Sovereign — zero cloud vendor lock-in	Edge-encrypted; hosted on Cloudflare infrastructure
Router & LAN DNS	Direct UDP 53 listener (point router/LAN DNS directly to server)	Requires a DoH client, proxy, or stub resolver upstream
Android Private DNS	Native DoT 853 with SNI Profile routing (`<profile_key>.dns.example.com`)	Supported via DoH URL or third-party DNS app
Zero-Knowledge PQC E2EE	✅ NIST FIPS 203 P256-MLKEM768 + Passkey WebAuthn	✅ NIST FIPS 203 P256-MLKEM768 + Passkey WebAuthn
Local-First Web UI	✅ In-browser SQLite WASM + OPFS 0ms instant analysis	✅ In-browser SQLite WASM + OPFS 0ms instant analysis
Maintenance & Scaling	Simple systemd service (`npm run service-create:linux`)	Zero server maintenance; scales automatically
Cost	Runs on existing VPS or home server hardware	Free tier for personal usage

What is DNS over HTTPS (DoH) & DNS over TLS (DoT)?

DNS over HTTPS (DoH / RFC 8484): Performs DNS queries over encrypted HTTPS connections. ObexDNS exposes DoH endpoints compatible with all modern browsers, operating systems, and stub resolvers.
DNS over TLS (DoT / RFC 7858): Encrypts DNS queries directly over TLS on dedicated port 853. ObexDNS Standalone mode natively routes incoming DoT requests to isolated user profiles using TLS Server Name Indication (SNI), making it ideal for Android 9+ native Private DNS.
Classic UDP DNS (RFC 1035): Standard plaintext DNS on port 53. ObexDNS Standalone mode provides ultra-low latency LAN resolution directly compatible with home routers and legacy network equipment.

✨ Core Features

🌐 Dual-Engine Deployment: Run serverless on Cloudflare Workers edge, or run standalone on any VPS / home server with zero Cloudflare dependency.
⚡ Full-Stack Protocol Support:
- Classic UDP 53: Standard RFC 1035 DNS for routers and LAN devices.
- DoT 853 (DNS over TLS): RFC 7858 encrypted DNS with TLS SNI profile routing (<profile_key>.dns.example.com), natively compatible with Android Private DNS.
- DoH (DNS over HTTPS): RFC 8484 encrypted DNS over HTTP/2 and HTTP/3.
🚀 Ultra-fast Resolution: Edge-accelerated caching and multi-tier memory pipelines for sub-millisecond query responses.
🗒️ Multi-Profile Management: Create independent configurations with isolated endpoints, rules, and upstream settings.
🛡️ Granular Filtering:
- Allow/Block Lists: Exact domain and wildcard subdomain matching.
- Third-Party Rule Sets: Subscribe to external blocklists (AdGuard, EasyList, hosts syntax) with fast Bloom filter matching.
- Custom Redirections: Override A, AAAA, TXT, and CNAME records with custom answers.
📊 Real-time Stats & Logs: Visual dashboard recording query type, hit reason, client geo-location, and upstream latency.
🔐 Privacy Controls: Flexible ECS (EDNS Client Subnet) management (Forward, Custom, or Hidden).
🔒 Rewrite ECH & ECH Fronting: Automatically injects/rewrites Encrypted Client Hello (ECH) parameters and outer SNI for HTTPS (Type 65) / SVCB (Type 64) queries to eliminate plaintext SNI leakage (Note: ECH rewriting is supported for domains proxied by Cloudflare).
⚡ Local-First Architecture: Embedded in-browser SQLite (WASM + OPFS) and Web Workers deliver instant 0ms log filtering and aggregation without cloud queries. Background bidirectional sync keeps data aligned while saving database read quotas.
🛡️ Post-Quantum Zero-Knowledge E2EE: Hardware Passkey (WebAuthn) and Recovery Key protected End-to-End Encryption for query logs. Implements NIST FIPS 203 P256-MLKEM768 hybrid lattice cryptography with hourly rotating KEM DEKs. Persistent storage holds only irreversible ciphertexts; decryption occurs strictly on your authorized client devices.
🌗 Modern UI: High-density management panel with dark mode, built with React + BlueprintJS.

🔐 Advanced Privacy: Local-First & Post-Quantum E2EE

DNS Worker redefines personal DNS observability by combining local-first browser computation with cutting-edge post-quantum cryptography:

⚡ Local-First Browser SQLite (OPFS + WASM)

Instantaneous 0ms Queries: Resolution logs and analytical charts render immediately from an in-browser SQLite database powered by Origin Private File System (OPFS) and Dedicated Web Workers.
Quota Preservation & Offline Analytics: High-frequency filtering, pagination, and multi-dimensional analytics run locally without issuing remote D1 read queries, drastically reducing Cloudflare D1 quota consumption and enabling full offline inspection.
Smart Bidirectional Sync: Automatically reconciles local storage with remote D1 in the background with zero UI freeze.

🛡️ Post-Quantum End-to-End Encryption (P256-MLKEM768)

Zero-Knowledge Cloud Storage: Sensitive log fields (domains, client IPs, answers, geo locations, and upstream servers) are encrypted before reaching persistent cloud storage. Cloudflare Workers and D1 database store only ciphertexts.
Quantum-Resistant Hybrid Lattice KEM: Adopts the NIST FIPS 203 standardized P256-MLKEM768 (ML-KEM-768 + ECDH P-256) hybrid algorithm, defending user query logs against future "Harvest Now, Decrypt Later" quantum attacks.
Decoupled Hourly Envelope Encryption: Automatically encapsulates and provisions hourly Data Encryption Keys (DEK), compressing KEM database overhead by ~80% while sustaining hot-path pipeline encryption throughput of 20,000+ queries/second.
Hardware Passkey Protection: The private key seed is wrapped with hardware Passkeys (WebAuthn PRF) and single-use self-rotating Recovery Keys; no plaintext secret ever touches the server.

🖼️ Quick Look

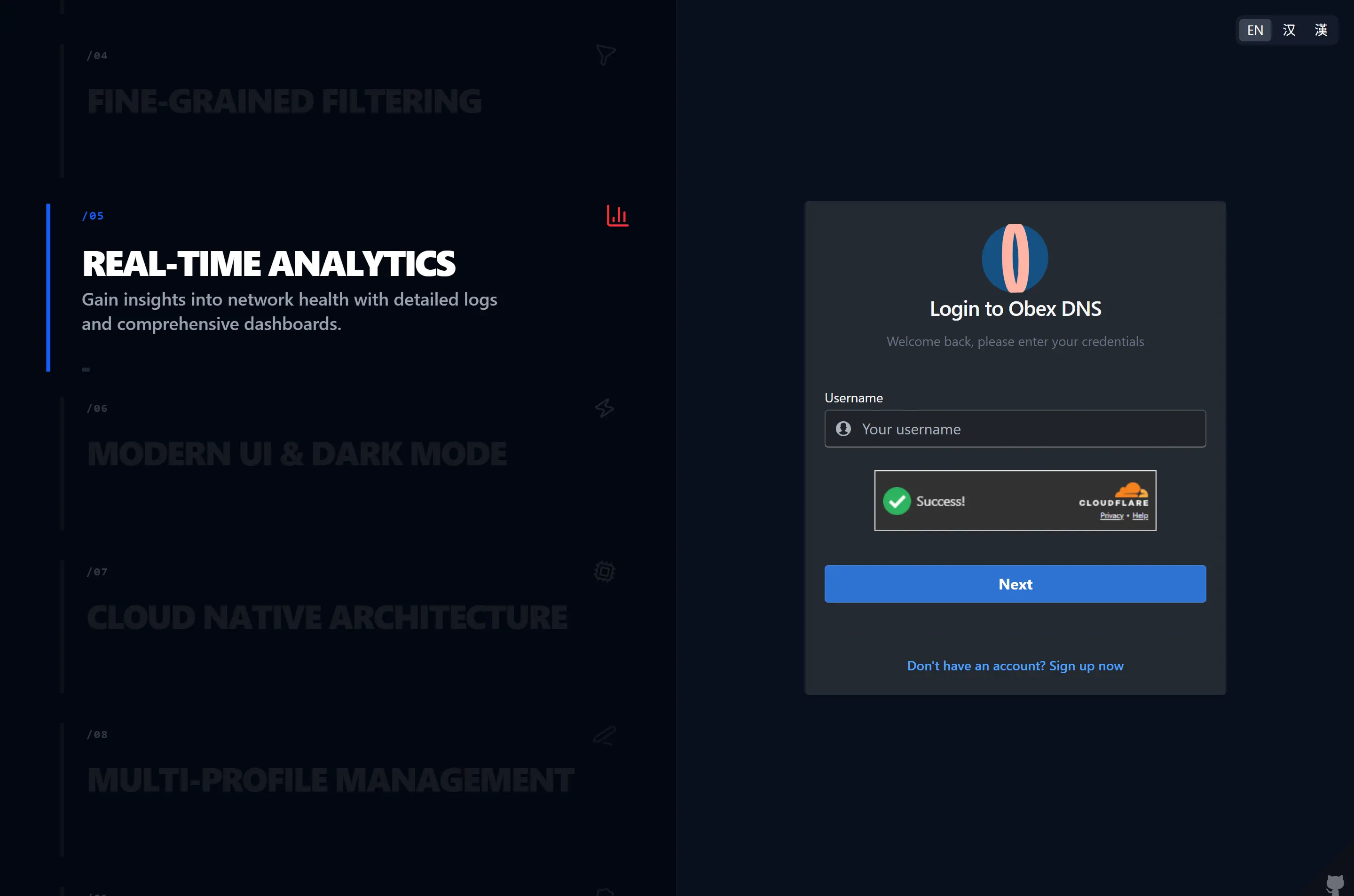

User Login

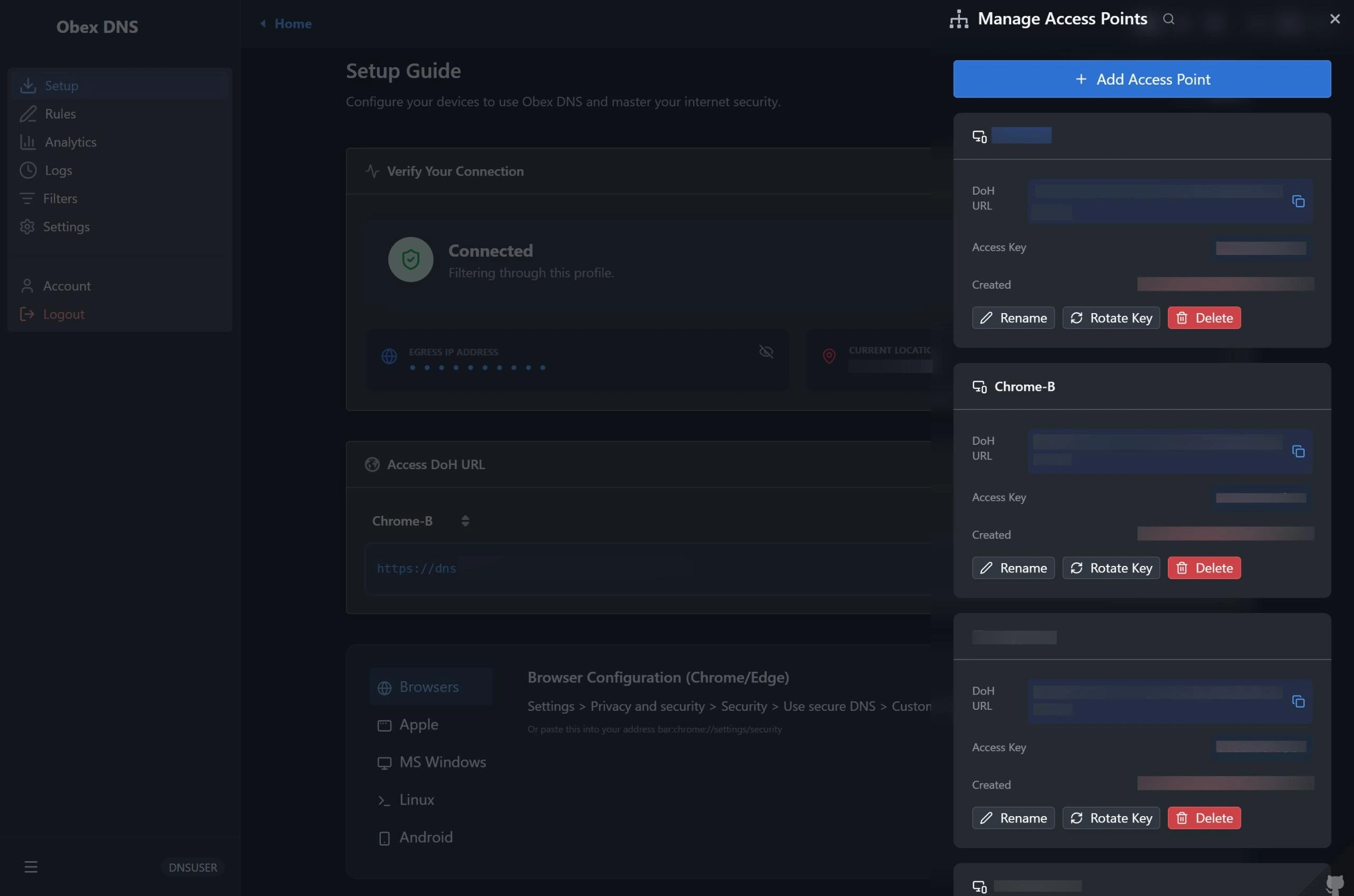

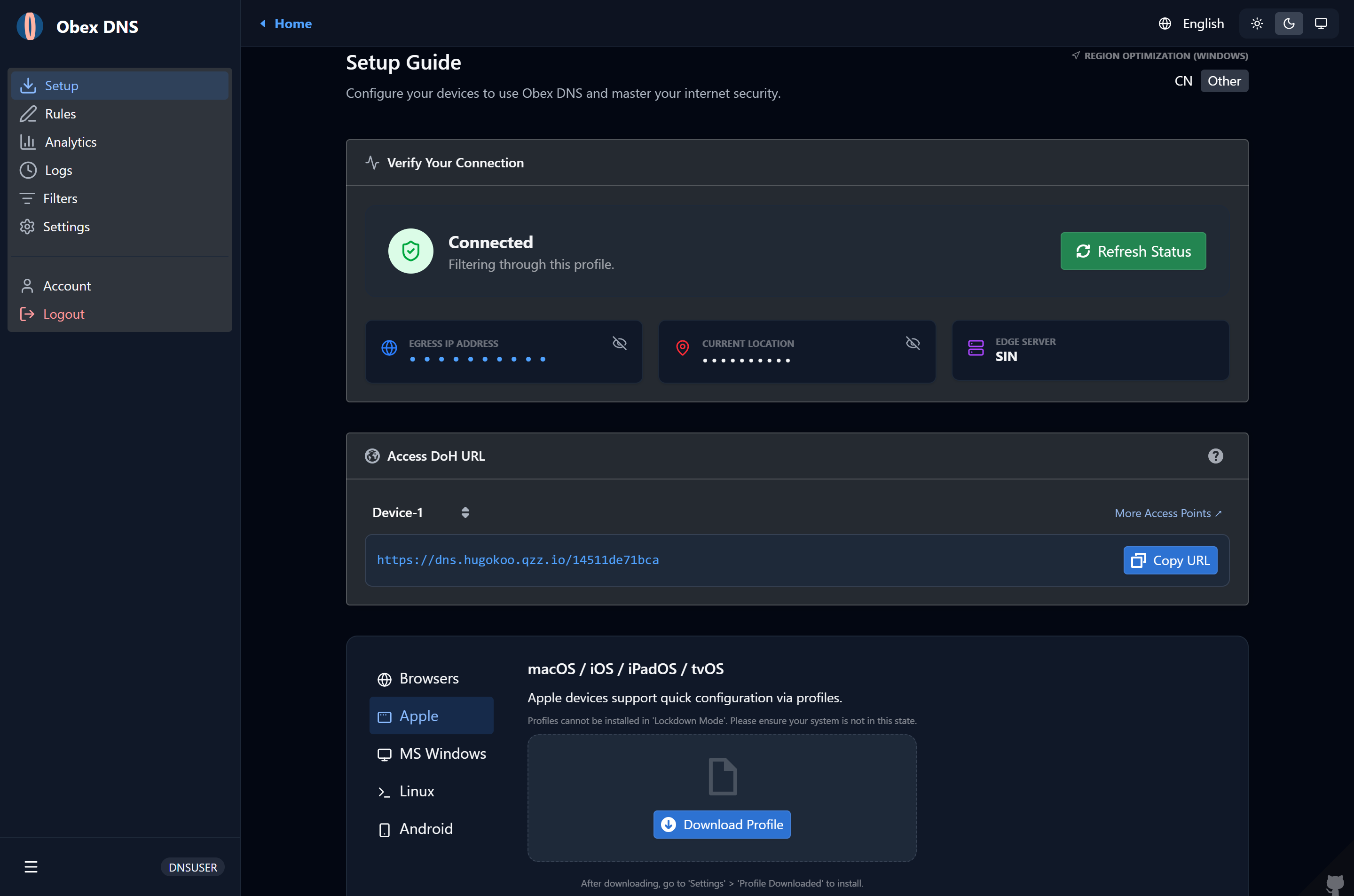

Setup Guide	Endpoints

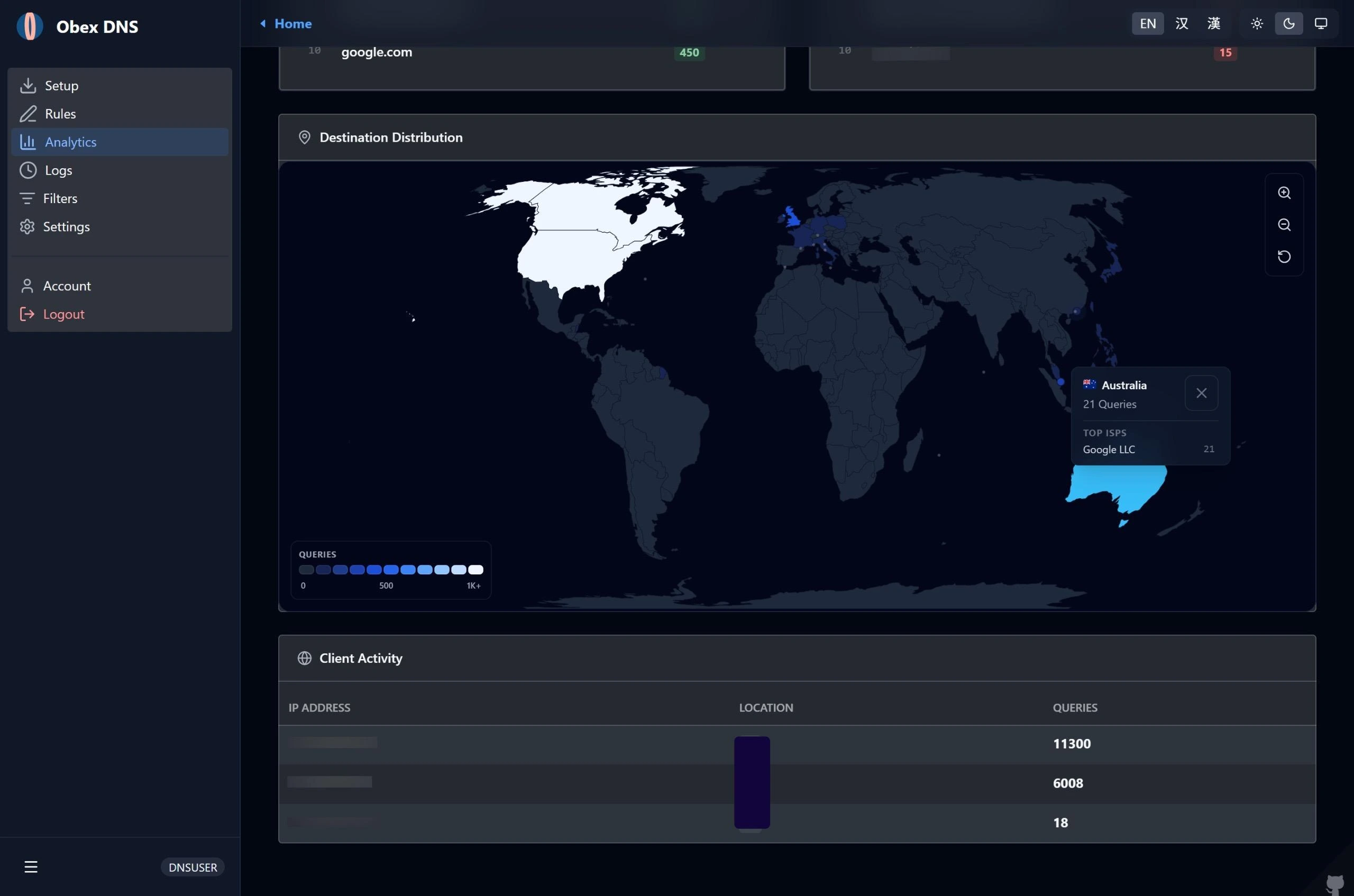

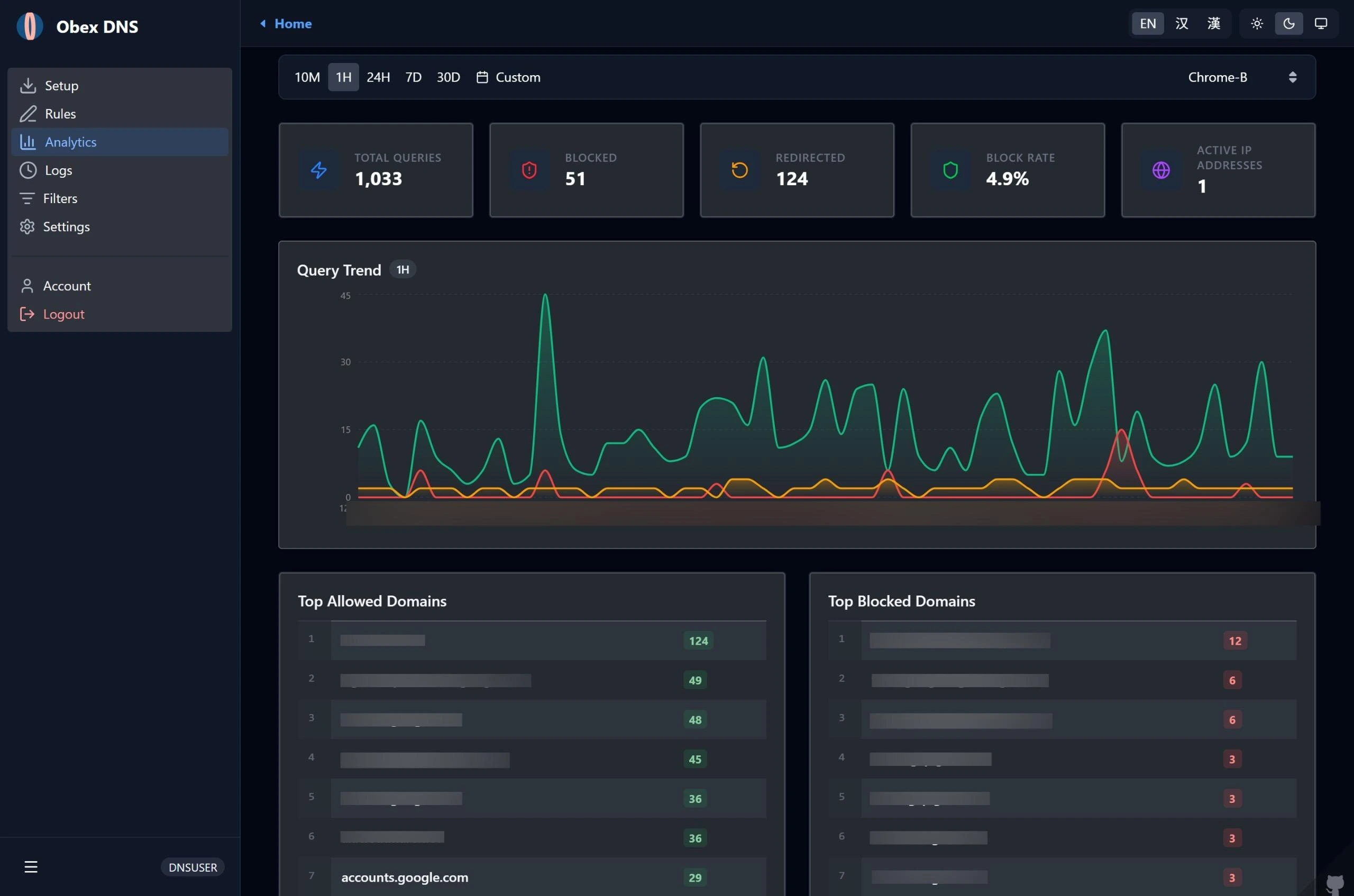

Real-time Analytics	Request Destinations

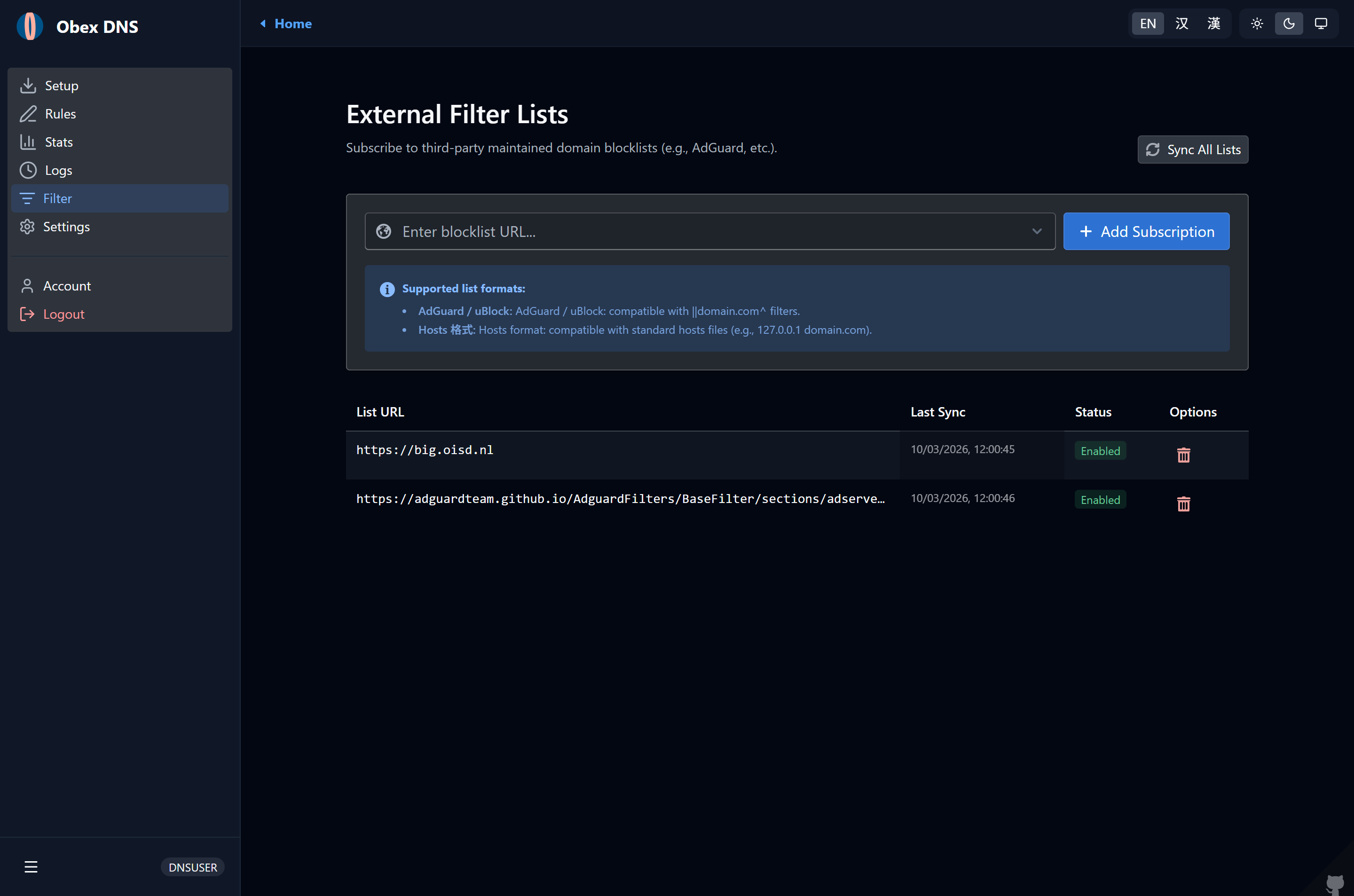

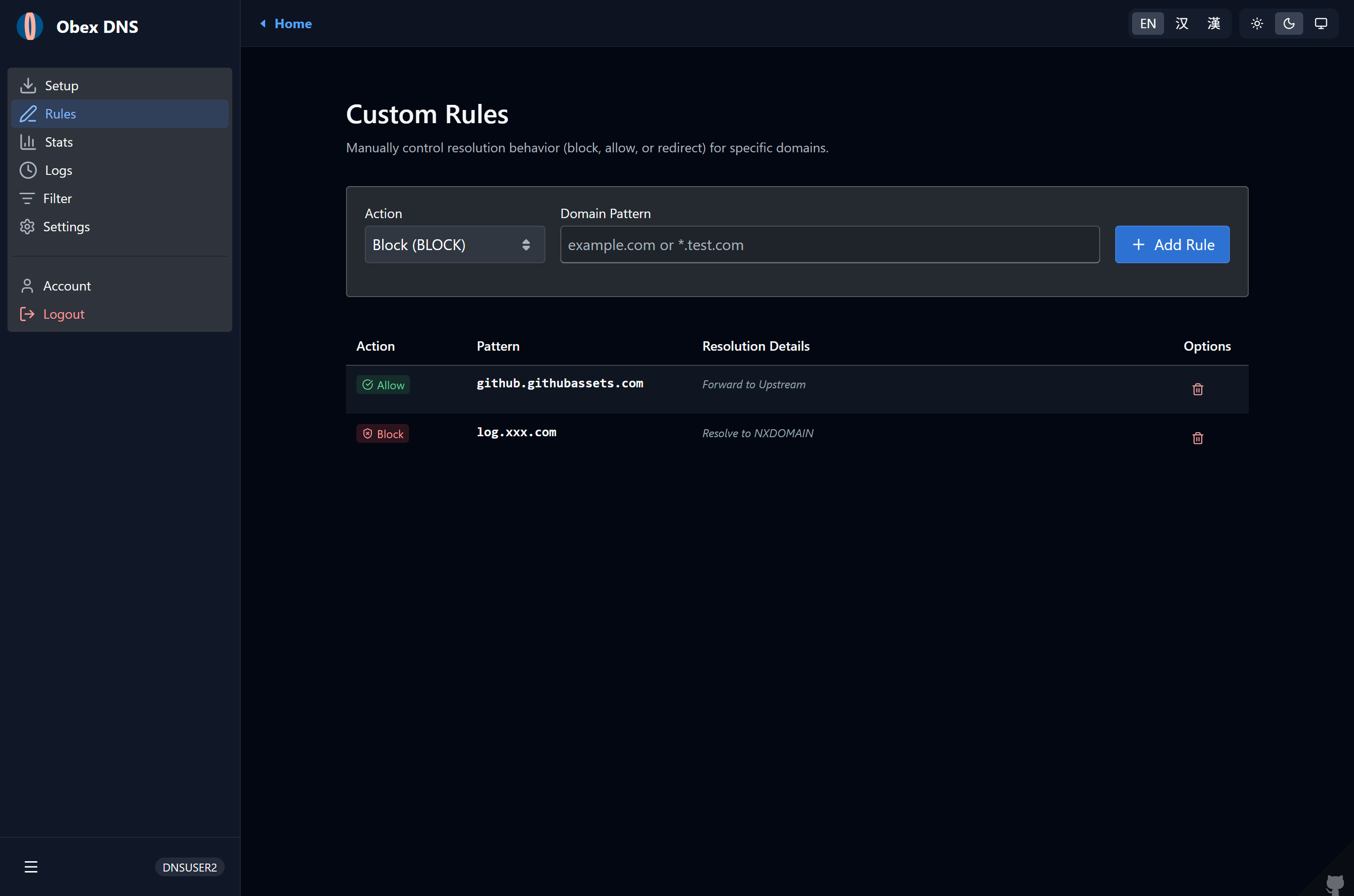

Rule Management	External Filters

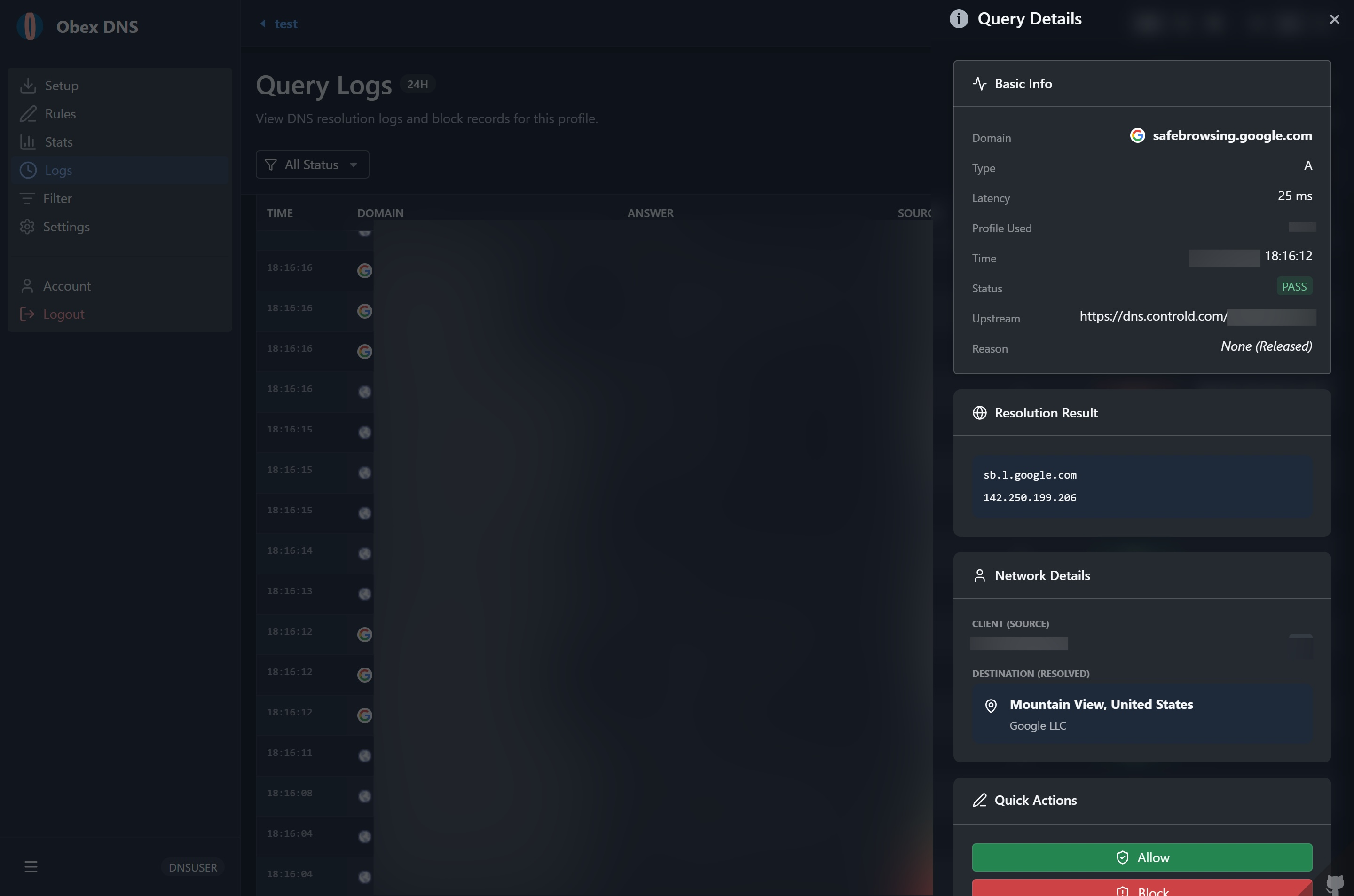

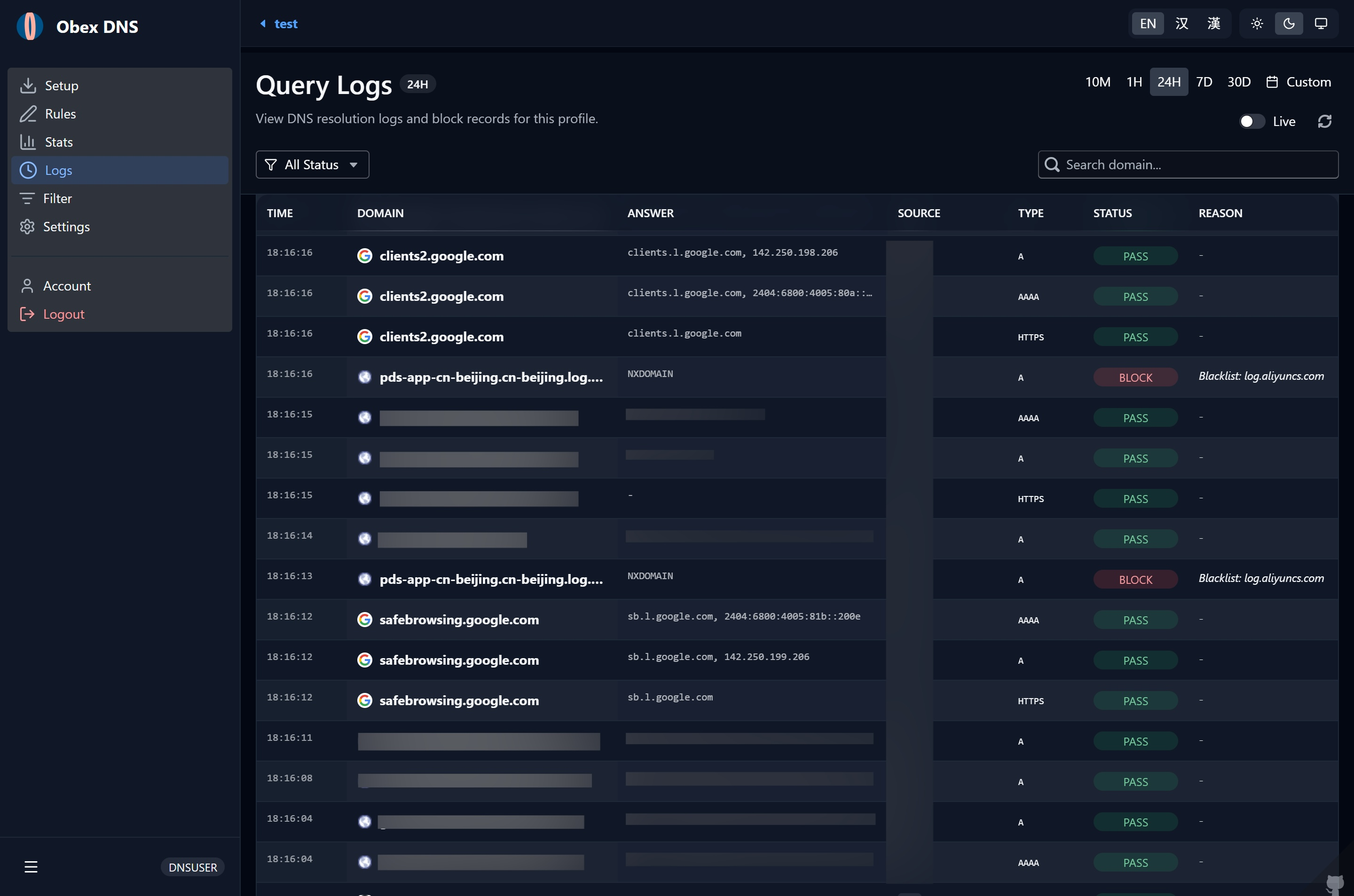

Resolution Logs	Log Detail

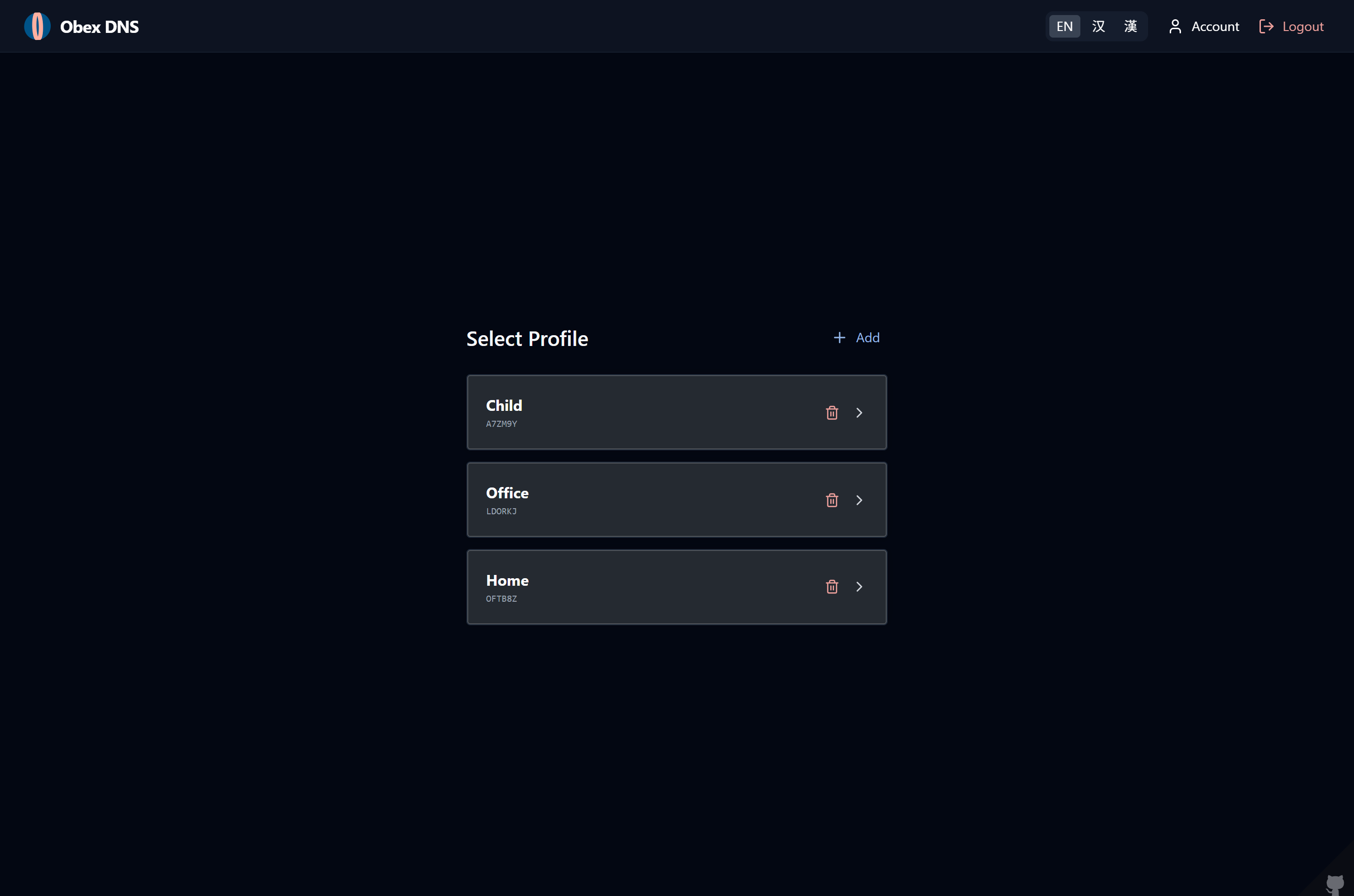

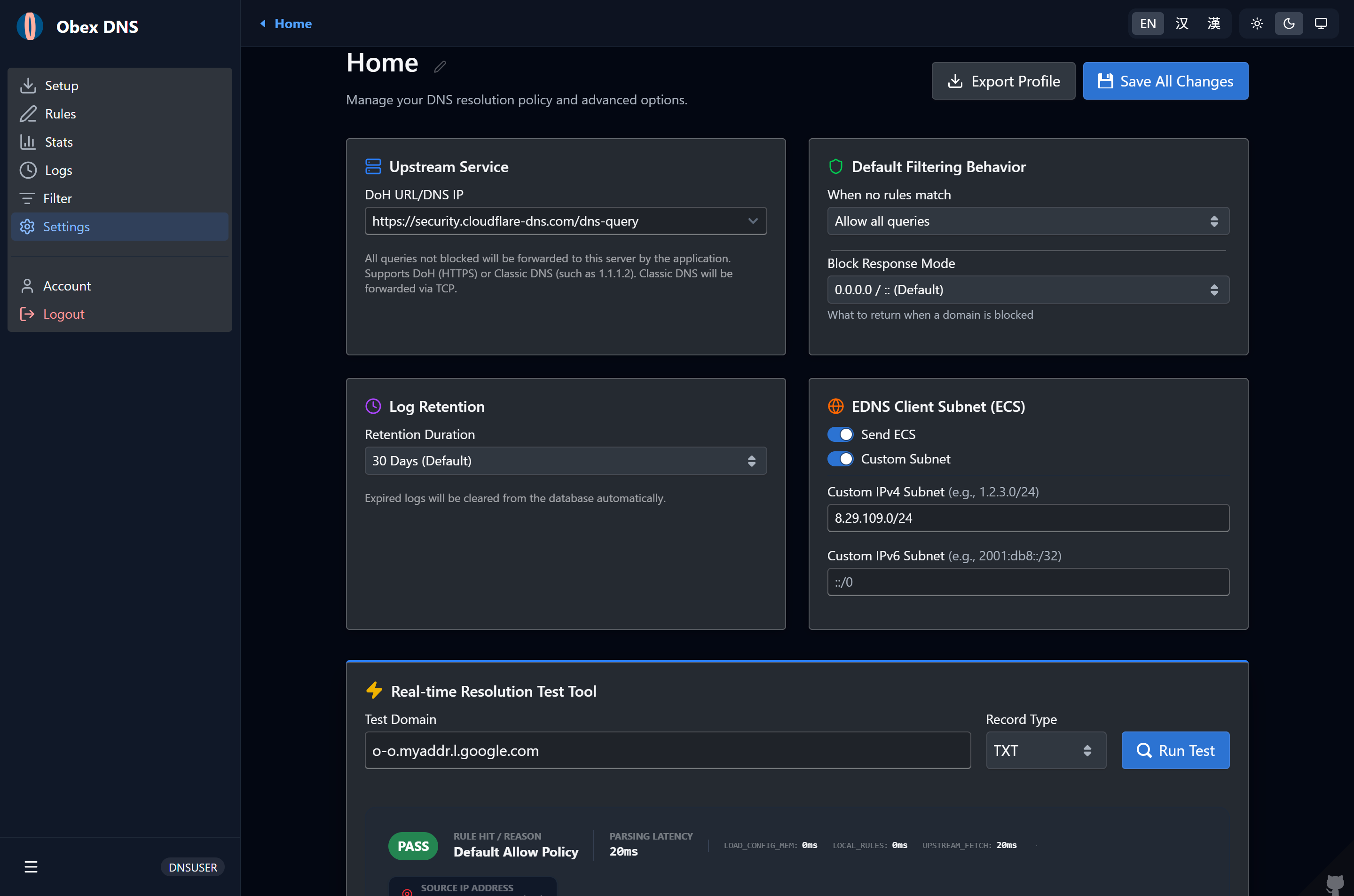

Profile Settings	Profile Select

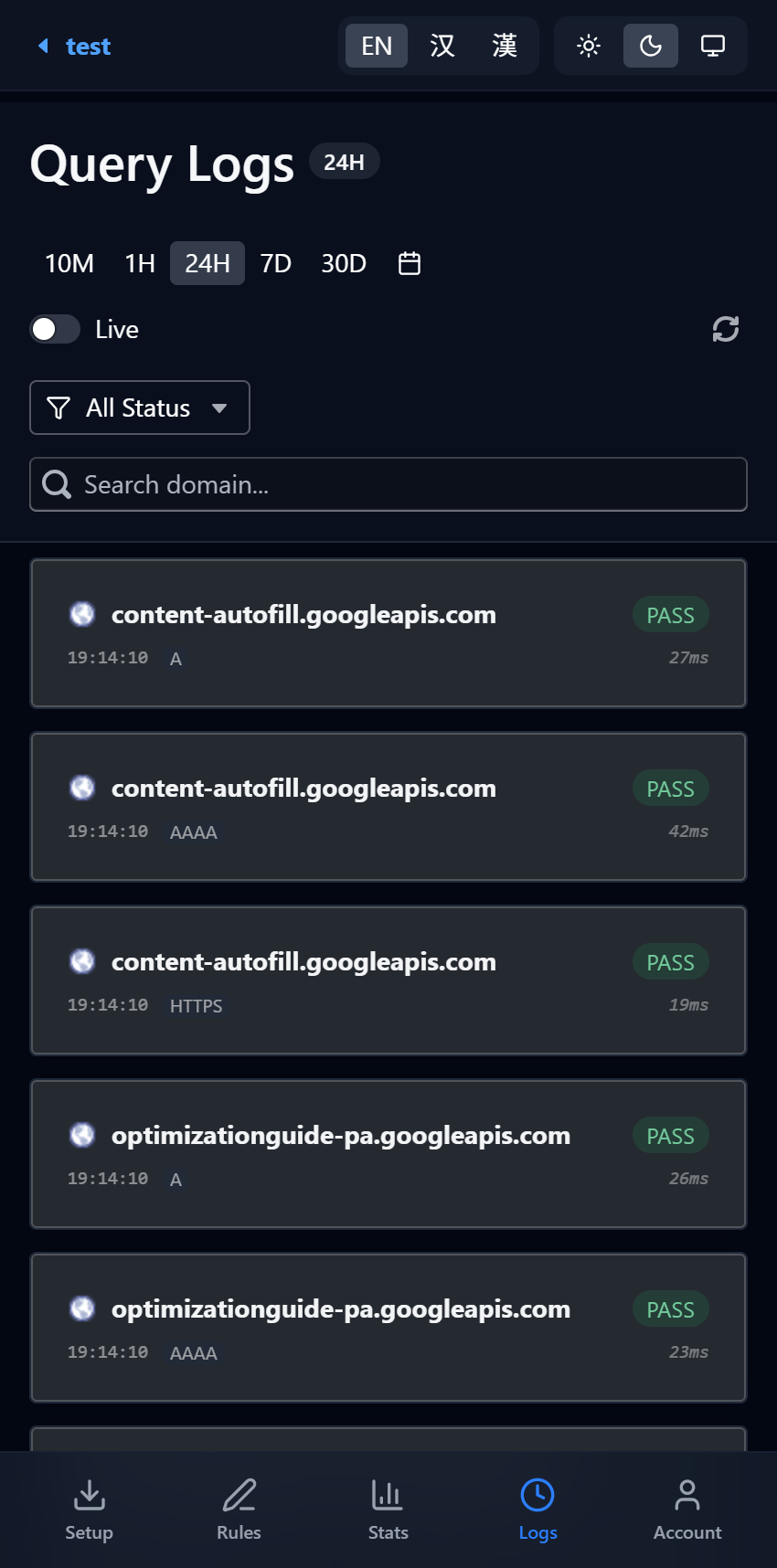

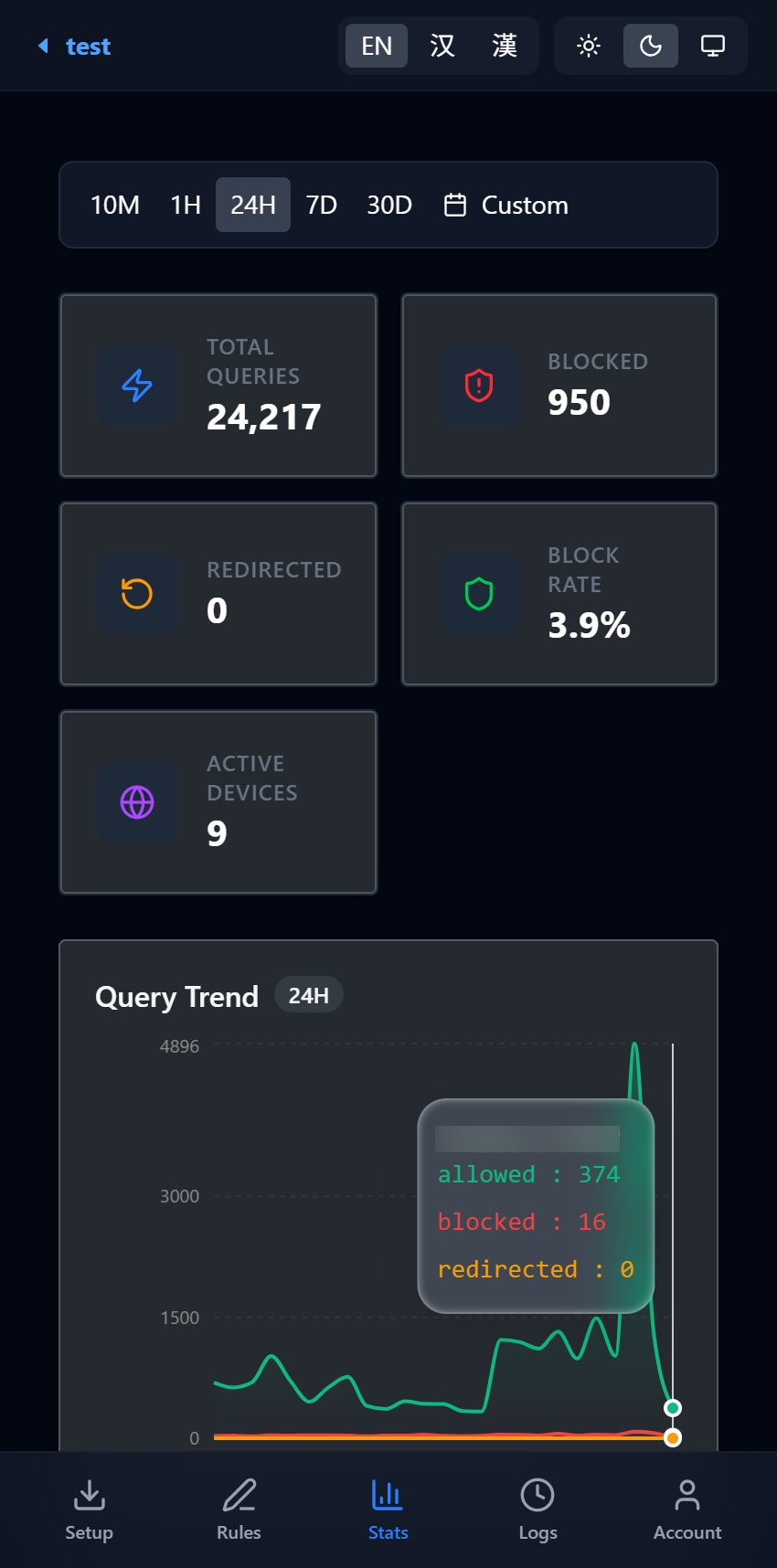

Mobile Logs	Mobile Stats

🛠️ Technical Architecture

Code Structure

├── src/
│   ├── index.ts          # Cloudflare Worker entry point, handles HTTP routing & DoH
│   ├── serverfull/       # Standalone Server entry point (UDP 53, DoT 853, HTTP 3000)
│   │   ├── index.ts      # Serverfull CLI & Master bootstrap
│   │   ├── udp.ts        # Classic RFC 1035 UDP 53 DNS Server
│   │   ├── dot.ts        # RFC 7858 DoT 853 Server with SNI Profile routing
│   │   ├── http.ts       # Web Dashboard & DoH HTTP server
│   │   └── db.ts         # Native Node.js SQLite (node:sqlite) adapter & migrator
│   ├── types.ts          # Type definitions
│   ├── api/              # API Controllers (Auth, Account, Profiles)
│   ├── lib/              # Core logic (RBAC, Rule filtering, PQC Crypto, DEK manager)
│   ├── models/           # Database models (Unified D1 & SQLite)
│   ├── pipeline/         # DNS Resolution Pipeline (Unified core business logic)
│   └── utils/            # Utilities (Cache, GeoIP, DNS Codec, Bloom Filter)
├── web/                  # React/BlueprintJS UI frontend (Local-First WASM + OPFS)
│   ├── public/           # Public static files
│   ├── src/              # Frontend source code
│   │   ├── assets/       # Static assets (images, icons, etc.)
│   │   ├── components/   # Reusable UI components
│   │   ├── i18n/         # Internationalization (i18n) configuration
│   │   ├── layouts/      # Layout components (dashboard layout, etc.)
│   │   ├── routes/       # Frontend routing configuration
│   │   ├── services/     # Centralized API service wrappers (Auth, Account, Profiles, etc.)
│   │   ├── views/        # Main pages / views (dashboard, logs, settings, setup, etc.)
│   │   └── utils/        # Utility helpers and functions
│   └── package.json      # Frontend dependencies configuration
├── static/               # Compiled static resources
├── scripts/              # Automation scripts (e.g., Linux systemd service generator)
├── migrations/           # Unified SQL Database migration scripts
└── wrangler.toml         # Cloudflare deployment configuration

Resolution Pipeline

When a DNS request arrives, it goes through the following processing stages:

Memory Cache Check: Checks if a valid response for the query exists in the edge node's memory.
Config Loading: Layers profile settings loading from Memory -> Cache API -> Database (D1 or SQLite).
Local Rule Matching:
- Whitelist: If hit, forwards directly to upstream and returns.
- Redirection: If hit, returns custom records.
- Blacklist: If hit, returns NXDOMAIN, 0.0.0.0, or a custom result.
External List Filtering:
- Use a Bloom filter for fast filtering.
Upstream Resolution: If none of the above hit, requests the upstream DoH server based on configuration, with optional ECS support.
Async Logging & Caching: Asynchronously records resolution logs (with optional PQC E2EE encryption), fetches target GeoIP, and writes results to various cache levels.

🚀 Deployment Guide

ObexDNS offers two deployment methods tailored to different operational needs:

Option A: 🖥️ Standalone Server / VPS (Cloudflare-Free, Full Sovereignty) — Best if you want complete control, classic UDP 53 for routers, and native Android DoT 853 on your own machine.
Option B: ☁️ Cloudflare Workers Edge (Serverless, Zero Maintenance) — Best if you want a globally distributed, zero-cost, zero-maintenance DoH resolver on 300+ edge PoPs.

Option A: 🖥️ Standalone Server / VPS (Cloudflare-Free, Full Sovereignty)

Run ObexDNS directly on any Linux, Windows, or macOS host with Node.js >= 22.5.0 (using built-in node:sqlite). No Cloudflare account, tokens, or external databases required.

Features in Standalone Mode

Classic UDP DNS (Port 53): Standard RFC 1035 UDP DNS resolution service for routers or system DNS settings.
DNS over TLS / DoT (Port 853): RFC 7858 encrypted DNS, natively supported by Android 9+ "Private DNS", with SNI-based Profile routing (e.g. <profile_key>.dns.example.com).
Web Dashboard & DoH (Default Port 3000): Full-featured React management dashboard and REST API.
Local SQLite Database: Automatically executes schema migrations out-of-the-box without cloud dependencies.

Environment Variables (Configure in `.env.serverfull`, `.env`, or system environment)

Environment Variable	Description	Default / Example
`SERVERFULL_TLS_KEY_PATH`	Absolute path to TLS private key file (PEM format, alias: `SERFULL_TLS_KEY_PATH`)	`/etc/letsencrypt/live/example.com/privkey.pem`
`SERVERFULL_TLS_CERT_PATH`	Absolute path to TLS certificate chain file (PEM format, alias: `SERVERFULL_TLS_PUB_PATH`)	`/etc/letsencrypt/live/example.com/fullchain.pem`
`SERVERFULL_UDP_PORT`	Classic UDP DNS listening port	`53`
`SERVERFULL_DOT_PORT`	DoT (TLS) listening port	`853`
`SERVERFULL_HTTP_PORT`	HTTP Web Dashboard & DoH listening port	`3000`
`SERVERFULL_HOST`	Listening host IP	`0.0.0.0`
`SERVERFULL_DB_PATH`	Local SQLite database file path	`./data/dns_worker.sqlite`
`SERVERFULL_DEFAULT_PROFILE_KEY`	Default Profile key when no SNI or profile identifier is provided	First created profile
`JWT_SECRET`	Session authentication token secret key	Auto-generated secure random string

Quick Start

Clone repository and install dependencies:

git clone https://github.com/Obein/DNS-Worker.git obexdns
cd obexdns
npm install

Configure environment variables: The project provides an out-of-the-box configuration template .env.serverfull. You can modify it directly or copy it to .env:

cp .env.serverfull .env
nano .env

Build frontend and start Standalone Server:

npm run start:serverfull

Production deployment as a Linux systemd background service:

sudo npm run service-create:linux
sudo systemctl start dns-worker
sudo systemctl status dns-worker

This generates /etc/systemd/system/dns-worker.service configured with CAP_NET_BIND_SERVICE privileges to bind privileged ports 53 and 853 without running as root, with automatic restart on reboot.

Option B: ☁️ Cloudflare Workers Edge (Serverless, Zero Maintenance)

Run ObexDNS across 300+ edge locations worldwide on Cloudflare Workers and D1 database.

1. Online Deployment (Cloudflare Dashboard)

Fork this repo: Click the Fork button at the top right to clone the repository to your own GitHub account.
Create D1 Database: Log in to the Cloudflare dashboard, go to Workers & Pages > D1, and create a new database (e.g., named dns_worker_db), and copy the created database ID.
Configure Database ID: In your forked repository, edit the wrangler.toml file and replace database_id with the ID of the database you just created.
Create Worker: Go to Cloudflare dashboard Workers & Pages > Create application.
Import from GitHub & Complete Initial Deployment: On the deployment page, select Continue with GitHub, connect your forked project, and complete the authorized deployment. Under the Build & Deploy settings, configure as follows:
- Build command: npm run build
- Deploy command: npm run deploy
- Root directory (Path): /
⚠️ Note: Environment variables entered in the initial project setup wizard are only injected into the build container and will not take effect as runtime secrets. Proceed with the "Deploy" button directly, and configure runtime secrets in your Worker's settings after the initial deployment finishes.
Configure JWT Secret: After the initial deployment completes, go to Cloudflare Dashboard -> Workers & Pages -> click on your Worker -> Settings -> Runtime variables and secrets (or Variables and secrets) -> click Add. Set the Name to JWT_SECRET, choose type Secret, input a secure random string as Value, and click Deploy (or Save and Deploy).
Configure KEK for Envelope Encryption (Optional): In the same Settings > Runtime variables and secrets section after deployment, to enable server-side envelope encryption for sensitive credentials (such as TOTP keys and recovery keys) in D1, add a variable named KEK_v1, type Secret, and input a secure key value. When you need to rotate the KEK key, add a new secret KEK_v(N+1) (e.g. KEK_v2 -> KEK_v3, etc.) sequentially.

2. Local Development & CLI Deployment

Prerequisites

Node.js: v18.x or later (v22.5.0+ recommended)
Package Manager: npm
Cloudflare Account: Workers and D1 permissions required

Setup & Deployment Steps

# 1. Clone repository and install dependencies
npm install

# 2. Initialize and migrate local D1 database
npm run db:setup
npm run db:migrate:dev

# 3. Configure local environment variables (.dev.vars)
echo "JWT_SECRET=your_secure_random_string_here" > .dev.vars
echo "KEK_v1=your_secure_kek_v1_key_string" >> .dev.vars

# 4. Start local development server
npm run dev

# 5. Deploy to Cloudflare Workers
npm run deploy

Online Deployment to Cloudflare Pages (⚠️ Not Recommended)

If you wish to deploy the project using Cloudflare Pages (Advanced Mode):

Warning

Not Recommended: This project is primarily a DNS resolution service, which is highly sensitive to response latency. Workers, as lightweight edge functions, are much better suited for low-latency DoH resolution tasks compared to Pages Functions. Standard Worker deployment also offers simpler routing and binding management. We strongly suggest deploying via Workers instead.

Create a D1 Database, copy its ID, and paste it into the database_id field in wrangler.toml.
In the Cloudflare Dashboard, go to Workers & Pages > Create application > Pages > Connect to Git.
Select your forked repository, and configure the build settings:
- Framework preset: None
- Build command: npm run build:pages
- Build output directory: static
After the initial deployment, go to the Pages project's Settings > Functions > D1 database bindings, and add a binding:
- Variable name: DB
- D1 database: Select your dns_worker_db database.
Redeploy the Pages project for the bindings to take effect.

💪 Powered by

Cloudflare Workers & D1 Database
Node.js (Native node:sqlite Engine)

🚚 Dependencies & Technologies

React & Blueprint (Modern high-density UI)
Tailwind CSS
NIST FIPS 203 (ML-KEM-768 Post-Quantum Cryptography)
wa-sqlite (WebAssembly SQLite & OPFS Local-First Storage)

📄 License

This project is licensed under the AGPLv3 License.

📝 Summary

ObexDNS gives you full control over your DNS resolution — with zero compromises on privacy, performance, or flexibility. By supporting both a high-efficiency standalone Node.js server and Cloudflare Workers global edge, it delivers an enterprise-grade Protective DNS system that is:

Dual-Engine Versatility: Run completely Cloudflare-free on your own VPS with classic UDP 53 & DoT 853, or deploy globally on Cloudflare Workers edge for zero-maintenance DoH.
Full-Stack Protocol Support: Classic UDP 53 for routers, Android Private DNS (DoT 853 with SNI profile routing), and DoH (RFC 8484).
Post-Quantum E2EE: Protects sensitive DNS query logs using NIST FIPS 203 P256-MLKEM768 lattice cryptography and hardware Passkeys (WebAuthn).
Local-First Speed: Instant 0ms log filtering and analytics in your browser via SQLite WASM + OPFS, eliminating unnecessary database read quotas.
Granular Governance: Multi-profile isolation, custom record redirection, ECH parameter rewriting, and Bloom-filter-accelerated adblocking subscriptions.

Whether protecting a single device, an entire home network, or a distributed organization, ObexDNS provides an elegant, self-sovereign alternative to commercial DNS filtering services.

If ObexDNS is useful to you, please consider giving it a ⭐

Name		Name	Last commit message	Last commit date
.github		.github
docs/screenshots		docs/screenshots
migrations		migrations
scripts		scripts
src		src
test		test
web		web
.env.serverfull		.env.serverfull
.gitignore		.gitignore
LICENSE		LICENSE
README.md		README.md
README_zh-CN.md		README_zh-CN.md
README_zh-TW.md		README_zh-TW.md
package.json		package.json
tsconfig.json		tsconfig.json
wrangler.toml		wrangler.toml

Navigation Menu

Repository files navigation

ObexDNS

📖 Introduction

⚖️ Dual-Engine Architecture & Deployment Matrix

What is DNS over HTTPS (DoH) & DNS over TLS (DoT)?

✨ Core Features

🔐 Advanced Privacy: Local-First & Post-Quantum E2EE

⚡ Local-First Browser SQLite (OPFS + WASM)

🛡️ Post-Quantum End-to-End Encryption (P256-MLKEM768)

🖼️ Quick Look

🛠️ Technical Architecture

Code Structure

Resolution Pipeline

🚀 Deployment Guide

Option A: 🖥️ Standalone Server / VPS (Cloudflare-Free, Full Sovereignty)

Features in Standalone Mode

Environment Variables (Configure in `.env.serverfull`, `.env`, or system environment)

Quick Start

Option B: ☁️ Cloudflare Workers Edge (Serverless, Zero Maintenance)

1. Online Deployment (Cloudflare Dashboard)

2. Local Development & CLI Deployment

Prerequisites

Setup & Deployment Steps

Online Deployment to Cloudflare Pages (⚠️ Not Recommended)

💪 Powered by

🚚 Dependencies & Technologies

📄 License

📝 Summary

About

Releases

Packages

Used by

Contributors

Languages

Latest commit

History

Folders and files

Repository files navigation

ObexDNS

📖 Introduction

⚖️ Dual-Engine Architecture & Deployment Matrix

What is DNS over HTTPS (DoH) & DNS over TLS (DoT)?

✨ Core Features

🔐 Advanced Privacy: Local-First & Post-Quantum E2EE

⚡ Local-First Browser SQLite (OPFS + WASM)

🛡️ Post-Quantum End-to-End Encryption (P256-MLKEM768)

🖼️ Quick Look

🛠️ Technical Architecture

Code Structure

Resolution Pipeline

🚀 Deployment Guide

Option A: 🖥️ Standalone Server / VPS (Cloudflare-Free, Full Sovereignty)

Features in Standalone Mode

Environment Variables (Configure in .env.serverfull, .env, or system environment)

Quick Start

Option B: ☁️ Cloudflare Workers Edge (Serverless, Zero Maintenance)

1. Online Deployment (Cloudflare Dashboard)

2. Local Development & CLI Deployment

Prerequisites

Setup & Deployment Steps

Online Deployment to Cloudflare Pages (⚠️ Not Recommended)

💪 Powered by

🚚 Dependencies & Technologies

📄 License

📝 Summary

About

Topics

Resources

Stars

Watchers

Forks

Releases

Packages

Used by

Contributors

Languages

Environment Variables (Configure in `.env.serverfull`, `.env`, or system environment)
