polycss

A CSS polygon mesh engine. A 3D renderer for the DOM. Renders OBJ, glTF, GLB and VOX as real HTML elements transformed with CSS matrix3d(...). Supports colors, textures, lighting, shadows, controls, shapes and animations. Works with React, Vue, custom elements, or plain JavaScript.

Visit polycss.com for docs and model examples.

Installation

# React
npm install @layoutit/polycss-react

# Vue
npm install @layoutit/polycss-vue

# Vanilla / custom elements
npm install @layoutit/polycss

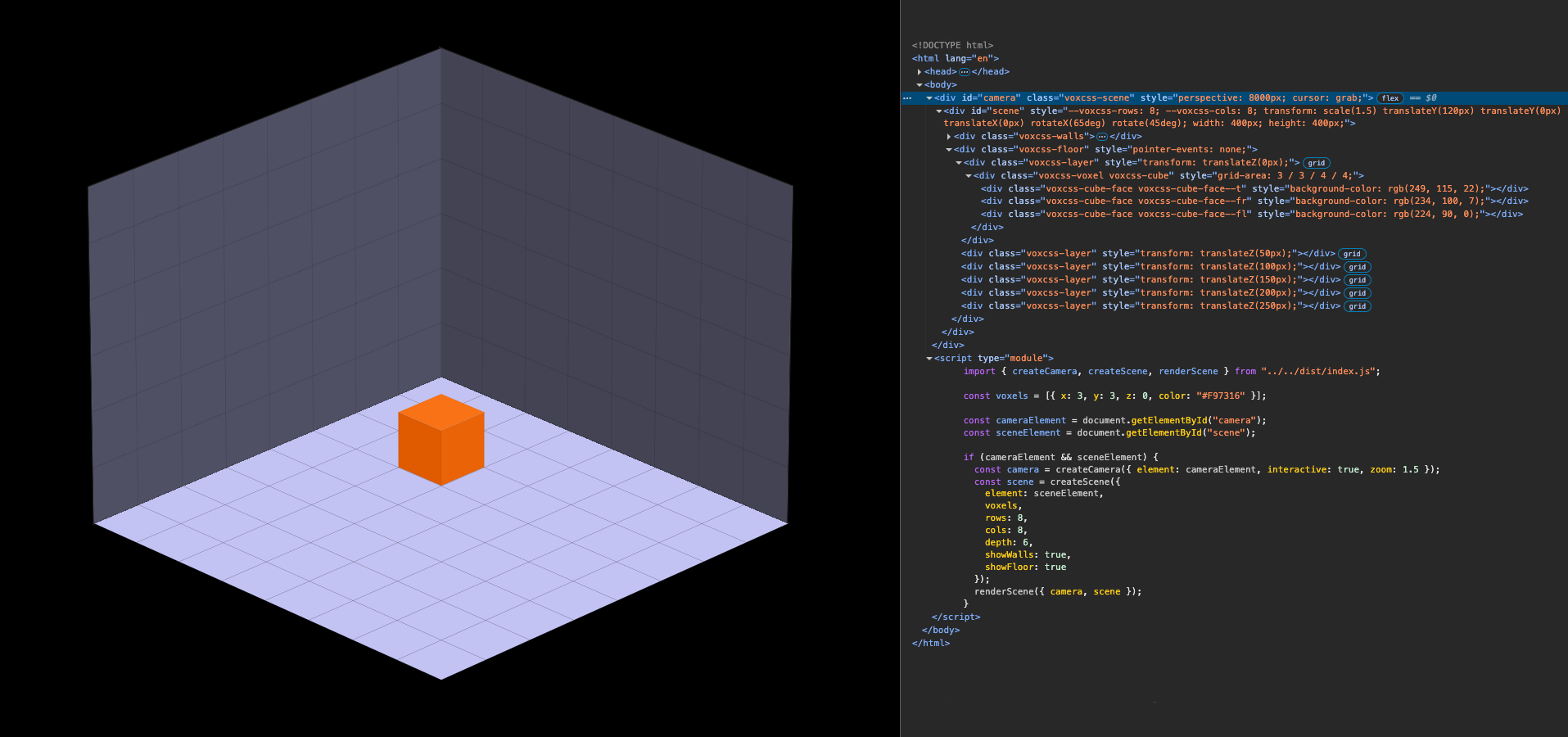

You can also load polycss directly from a CDN. Here is a minimal custom-element scene:

<script type="module" src="https://esm.sh/@layoutit/polycss/elements"></script>

<poly-camera rot-x="65" rot-y="45">
  <poly-scene>
    <poly-orbit-controls drag wheel></poly-orbit-controls>
    <poly-box size="100" color="#ffd166"></poly-box>
  </poly-scene>
</poly-camera>

Framework Components

React and Vue expose the same component model. <PolyCamera> owns the viewpoint, <PolyScene> owns lighting and atlas options, and <PolyMesh> loads or receives polygon data.

import { PolyCamera, PolyScene, PolyOrbitControls, PolyMesh } from "@layoutit/polycss-react";

export default function App() {
  return (
    <PolyCamera rotX={65} rotY={45}>
      <PolyScene textureLighting="dynamic">
        <PolyOrbitControls drag wheel />
        <PolyMesh src="/gallery/obj/cottage.obj" mtl="/gallery/obj/cottage.mtl" />
      </PolyScene>
    </PolyCamera>
  );
}

API Reference

PolyCamera

• rotX, rotY control the orbit angle in degrees.
• zoom scales the projected scene.
• target pans the camera target in world coordinates.
• distance adds dolly pull-back.
• PolyCamera is the orthographic default. Use PolyPerspectiveCamera when you want perspective depth.

PolyScene

• polygons renders a static Polygon[] directly.
• directionalLight and ambientLight control scene lighting.
• textureLighting chooses "baked" or "dynamic".
• textureQuality controls atlas raster budget.
• strategies can disable selected render strategies for diagnostics.
• autoCenter rotates around the rendered mesh bounds instead of world origin.

PolyMesh

• src loads .obj, .gltf, .glb, or .vox files.
• mtl loads companion OBJ materials.
• polygons accepts pre-parsed geometry.
• position, scale, and rotation transform the mesh wrapper.
• autoCenter shifts the mesh bbox center to local origin.
• meshResolution chooses "lossy" (default) or "lossless" optimization.
• castShadow emits CSS-projected shadows in dynamic lighting mode.

Controls

• <PolyOrbitControls> adds drag orbit, shift-drag pan, wheel zoom, and optional auto-rotate.
• <PolyMapControls> uses pan-first map-style input.
• <PolyFirstPersonControls> provides keyboard and pointer-look navigation.
• <PolyTransformControls> adds translate/rotate gizmos for selected mesh handles.

Polygon Data Model

Each polygon describes one renderable face:

const polygons = [
  {
    vertices: [[0, 0, 0], [60, 0, 0], [0, 60, 0]],
    color: "#f97316",
  },
  {
    vertices: [[0, 0, 0], [60, 0, 0], [60, 60, 0], [0, 60, 0]],
    texture: "/texture.png",
    uvs: [[0, 0], [1, 0], [1, 1], [0, 1]],
  },
];

Render polygons directly when you need per-face DOM events or custom styling:

<PolyCamera>
  <PolyScene>
    {polygons.map((polygon, index) => (
      <Poly
        key={index}
        {...polygon}
        onClick={() => console.log("clicked polygon", index)}
        className="my-polygon"
      />
    ))}
  </PolyScene>
</PolyCamera>

Loading Mesh Files

Use loadMesh() to parse supported model formats:

import { createPolyCamera, createPolyScene, loadMesh } from "@layoutit/polycss";

const host = document.getElementById("polycss")!;
const camera = createPolyCamera({ rotX: 65, rotY: 45 });
const scene = createPolyScene(host, { camera });

const mesh = await loadMesh("https://polycss.com/gallery/obj/cottage.obj", {
  mtlUrl: "https://polycss.com/gallery/obj/cottage.mtl",
});

scene.add(mesh);

Supported formats:

• OBJ + MTL, including map_Kd textures and UV coordinates.
• glTF / GLB, including embedded images and TEXCOORD_0.
• MagicaVoxel .vox, with direct voxel fast paths when eligible.
• Generated primitives: box, plane, ring, sphere, torus, cylinder, cone, and Platonic solids.

Performance

polycss renders in the DOM, so performance is mostly determined by how many polygons are mounted and how much texture atlas area they consume. The renderer uses several CSS strategies so simple surfaces stay cheap and textured or irregular surfaces fall back to atlas slices.

• One visible polygon becomes one leaf DOM element.
• Flat rectangles and stable quads use solid CSS leaves.
• Textured polygons are packed into generated texture atlases.
• Dynamic lighting runs through CSS custom properties instead of per-frame JavaScript.
• Voxel-shaped meshes mount only camera-facing leaves when the mesh is eligible.
• meshResolution: "lossy" can merge compatible polygons to reduce DOM node count.

Packages

Package	Description
@layoutit/polycss-core	Pure math, parsers, lighting, camera helpers, mesh optimization. Zero browser globals.
@layoutit/polycss	Vanilla custom elements and imperative createPolyScene API.
@layoutit/polycss-react	React components, hooks, controls, and core re-exports.
@layoutit/polycss-vue	Vue 3 components, composables, controls, and core re-exports.

Made with polycss

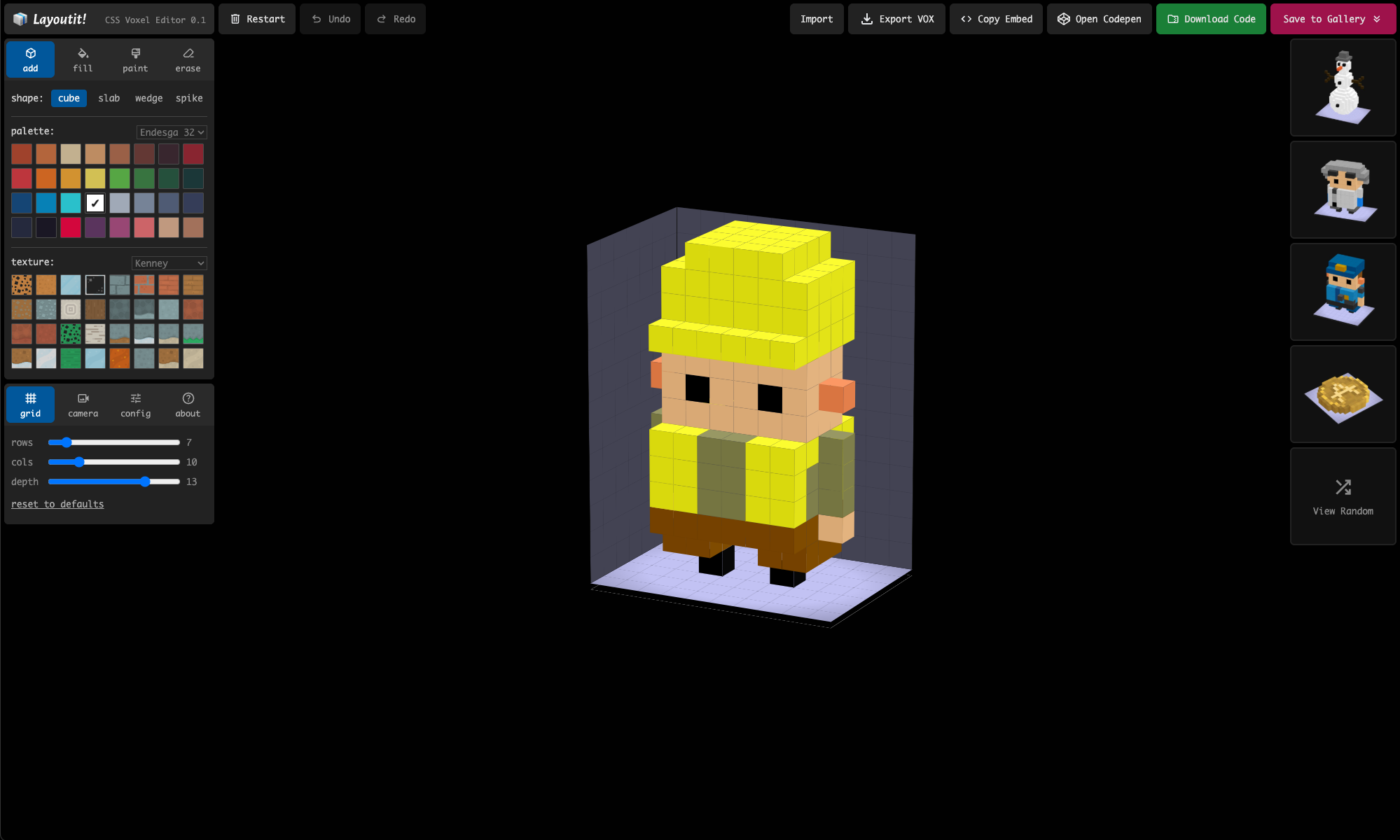

Layoutit Voxels -> A CSS Voxel editor

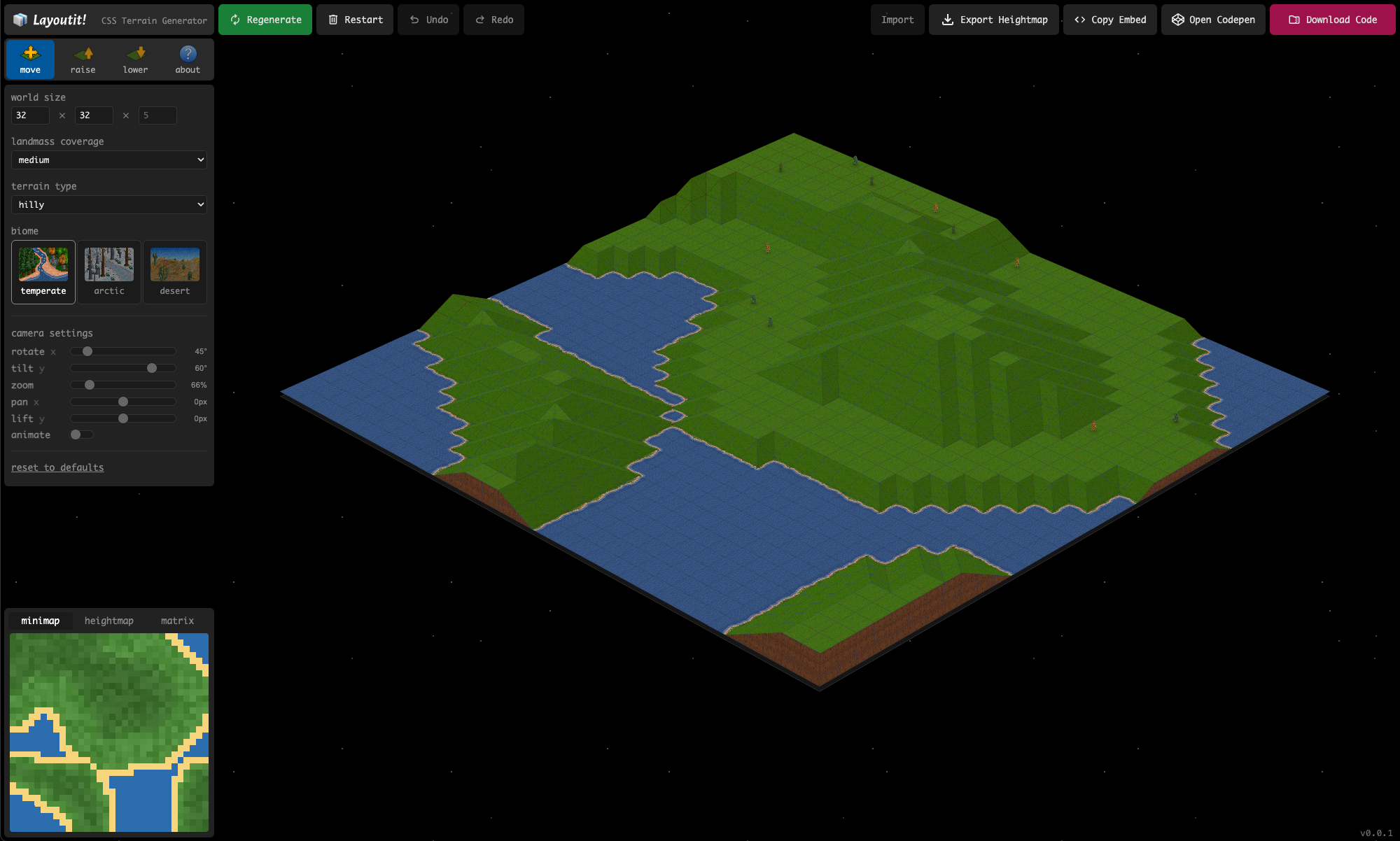

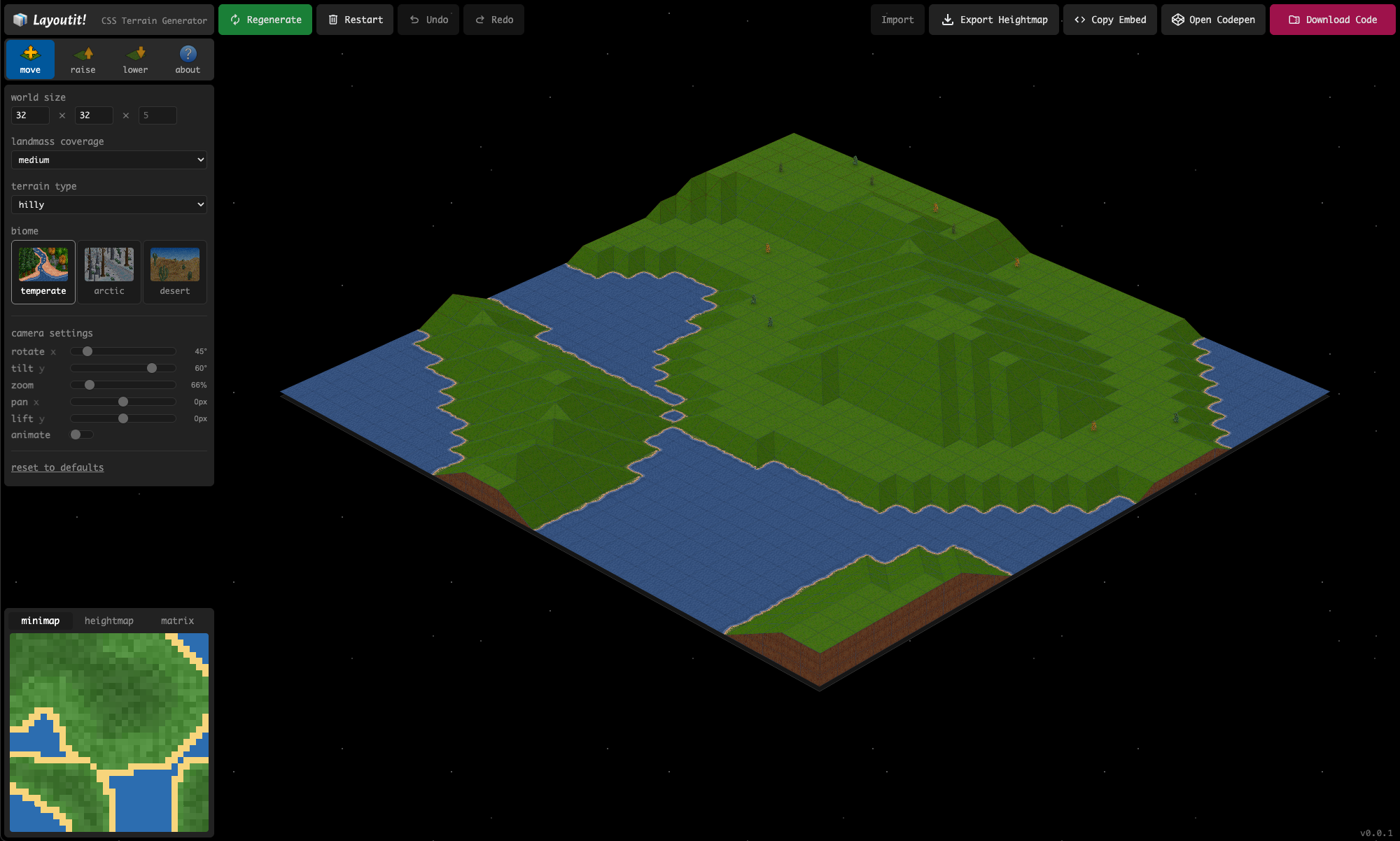

Layoutit Terra -> A CSS Terrain Generator

License

MIT.
