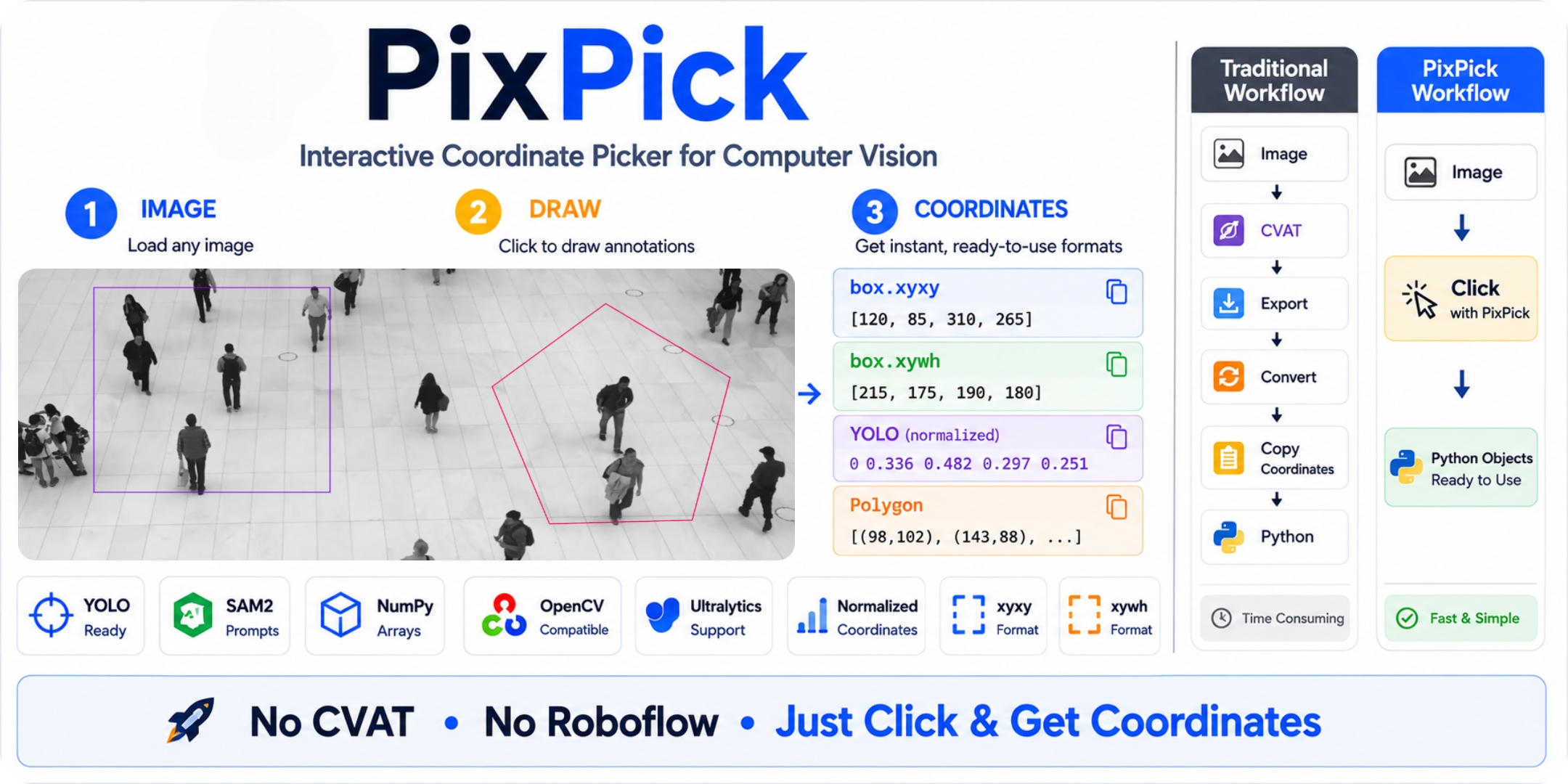

PixPick

Draw on the frame. Get the coordinates back in Python.

Boxes, polygons, lines and points — picked interactively, returned as objects that drop straight into YOLO, SAM and Supervision.

---

The problem

Every CV pipeline starts with coordinates you don't have yet.

# YOLO
counter = RegionCounter(region=[(120, 80), (640, 80), (640, 480), (120, 480)])   # where do these come from?

# SAM2 / SAM3
masks = predictor.predict(box=np.array([120, 80, 640, 480]))                     # same question

So you do one of three things:

• Guess and rerun. Type some numbers, run, squint at the output, nudge, run again.
• Write the throwaway script. cv2.setMouseCallback, print(x, y), copy from the terminal, paste into the real code, delete the script. Next project — write it again.
• Open an annotation tool just to read pixel values off the cursor.

None of that is the work. It's the step everyone hates and nobody automated.

The fix

import pixpick

region = pixpick.box("video.mp4", frame=10)  # drag a box on a specific video frame
zone   = pixpick.polygon("image.jpg")        # click polygon vertices

# coordinates are ready — unpack directly into any framework
# YOLO:
regioncounter = RegionCounter(
     region=zone.yolo_region,  # pass region points
     model="yolo26n.pt",
 )

# same for YOLOE
model.predict("image.jpg", visual_prompts=dict(bboxes=region.yolo_prompt, cls=classes))

# SAM/SAM2/SAM3:
predictor.predict(box=region.sam)

A window opens on your image or video frame. You draw. The coordinates come back as Python objects, already in the shape each framework wants. No terminal copy-paste, no throwaway scripts.

All selectors accept a frame= argument when the source is a video file.

---

Install

pip install pixpick

---

Selectors

Selector	How to use	Returns
pixpick.box()	Left-click + drag	Box
pixpick.polygon()	Click vertices	Polygon
pixpick.line()	Click start → click end	Line
pixpick.point()	Click points (fg / bg)	Point / MultiPoint

Make several selections in one pass and you get the matching wrapper — Multibox, MultiPolygon, MultiLine or MultiPoint — each holding a list of the singular objects.

For more information on controls, see Getting Started.

---

Output formats

Every selection object carries all the formats you'll ever need.

# ── Box ──────────────────────────────────────────────────────
region = pixpick.box("frame.jpg")

region.xyxy              # [x1, y1, x2, y2]            absolute pixels
region.xywh              # [x, y, w, h]                absolute pixels
region.cxcywh            # [cx, cy, w, h]              absolute pixels (YOLO format)
region.center            # (cx, cy)
region.area              # pixels²


# ── Polygon ───────────────────────────────────────────────────
zone = pixpick.polygon("frame.jpg")

zone.points              # [(x0,y0), (x1,y1), ...]     absolute pixels
zone.as_numpy            # np.array shape (N, 2)
zone.norm                # [(x0n,y0n), ...]             0.0 – 1.0
zone.bbox                # [x1, y1, x2, y2]  tight bounds around the polygon
zone.npoints             # int


## ── Line ─────────────────────────────────────────────────────
line = pixpick.line("frame.jpg")

line.points              # [(x0,y0), (x1,y1)]           absolute pixels
line.as_numpy            # np.array shape (2, 2)
line.norm                # [(x0n,y0n), (x1n,y1n)]       0.0 – 1.0
line.center              # (cx, cy)
line.length              # pixels
line.vertical            # [(x,y), (x,y)]  same line re-drawn vertically


## ── Point ────────────────────────────────────────────────────
pick = pixpick.point("frame.jpg")        # one click → Point

pick.xy                  # (x, y)                       absolute pixels
pick.label               # 1 = foreground, 0 = background
pick.norm                # (xn, yn)                     0.0 – 1.0
pick.is_foreground       # bool
pick.rescale(640, 640)   # → Point remapped to another resolution

For more details, see Selectors.

---

Framework integration

Framework	Selector	Properties
Ultralytics YOLOE — visual prompt	Box	region.yolo_prompt
Ultralytics YOLO — region	Box/Polygon	region.yolo_region
SAM / SAM2 / SAM3 — box prompt	Box	region.sam
SAM / SAM2 / SAM3 — point prompt	Point / MultiPoint	picks.sam
Supervision PolygonZone — polygon	Polygon	zone.supervision
Supervision KeyPoints — points	Point / MultiPoint	picks.supervision
Any other format	all selectors	region.raw

---

Persistence

Pick once, reuse forever.

region.save("zone.json")
region = pixpick.load("zone.json")   # Box and Polygon both work

Production pattern — pick interactively the first time, load on every subsequent run:

from pathlib import Path
import pixpick

ZONE = "config/count_zone.json"

zone = pixpick.load(ZONE) if Path(ZONE).exists() else pixpick.polygon("frame.jpg")
zone.save(ZONE)

---

Docs

🚀 Getting Started	Installation, first selection, controls
🎯 Selectors	All properties and methods for Box and Polygon
🔌 Framework Integration	YOLO, SAM2/SAM3 and more
💾 Persistence	Save, load, JSON schema
🏗️ Architecture	How it's built and how to extend it
🗺️ Roadmap	What's coming next

---

Contributing

We welcome contributions! Please open a GitHub issue or submit a pull request. For more information, see Contribution Guidelines.
