Depot EICE - Database Project

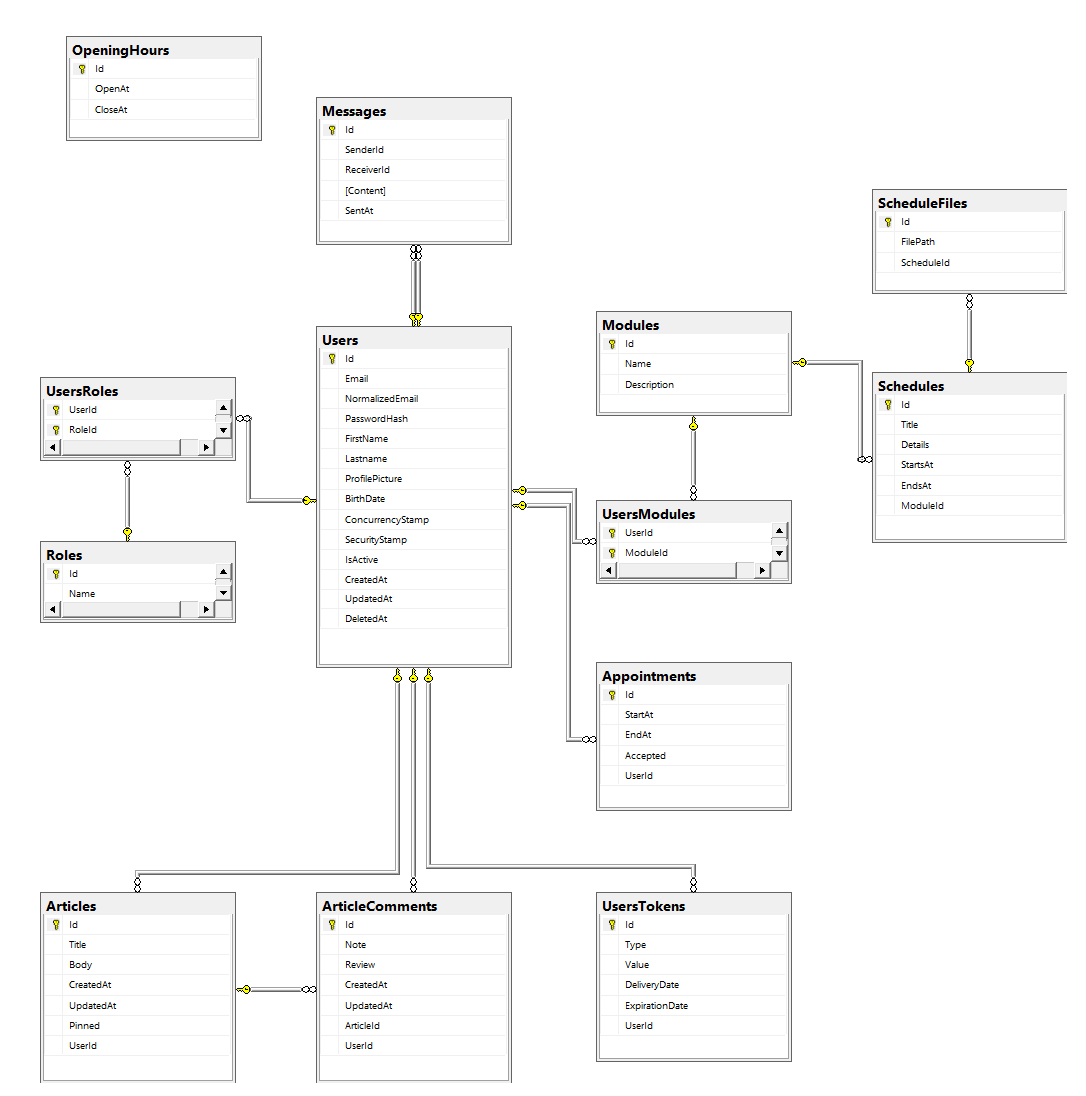

UML Diagram

Tables Descriptions

Appointments

Represent user's appointments. A User can have 0 or more appointment but an appointment must have 1 User

Relation

[Users] 0,n ------ 1,1 [Appointments]

Name	Data type	Nullable	Default Value
Id	INT	false
StartAt	DATETIME2(7)	false
EndAt	DATETIME2(7)	false
Accepted	BIT	false	0
UserId	UNIQUEIDENTIFIER	false

CONSTRAINTS

• FK_Appointments_User

FOREIGN KEYS

• [UserId]: Users

ArticleComments

Represent the comment written on an article by a user.

An Article can have 0 or more comments An User can have 0 or more comments

Relations

[Articles] 0,n ------- 1,1 [

Name	Data type	Nullable	Default Value
Note	INT	false
Review	NVARCHAR(500)	false
CreatedAt	DATETIME2(7)	false	GETDATE() 1
UpdatedAt	DATETIME2(7)	true
ArticleId	INT	false
UserId	UNIQUEIDENTIFIER	false

CONSTRAINTS

• FK_ArticleComments_Article
• FK_ArticleComments_User

FOREIGN KEYS

• [ArticleId]: Articles
• [UserId]: Users

Articles

Name	Data type	Nullable	Default Value
Id	INT	false
Title	NVARCHAR(100)	false
Body	TEXT		false
CreatedAt	DATETIME2(7)	false	GETDATE() 1
UpdatedAt	DATETIME2(7)	true
Pinned	BIT	false
UserId	UNIQUEIDENTIFIER	false

CONSTRAINTS

• FK_Articles_User

FOREIGN KEYS

• [UserId]: Users

Messages

Name	Data type	Nullable	Default Value
Id	INT	false
SenderId	UNIQUEIDENTIFIER	false
ReceiverId	UNIQUEIDENTIFIER	false
Content	TEXT	false
SentAt	DATETIME2(7)	false	GETDATE() 1

CONSTRAINTS

• FK_Messages_Sender
• FK_Messages_Receiver

FOREIGN KEYS

• SenderId : Users
• ReceiverId : Users

Modules

Name	Data type	Nullable	Default Value
Id	INT	false
Name	NVARCHAR(255)	false
Description	NVARCHAR(1000)	false

OpeningHours

Name	Data type	Nullable	Default Value
Id	INT	false
OpenAt	DATETIME2(7)	false
CloseAt	DATETIME2(7)	false

Roles

Name	Data type	Nullable	Default Value
Id	UNIQUEIDENTIFIER	false	NEWID() 2
Name	NVARCHAR(50)	false

ScheduleFiles

Name	Data type	Nullable	Default Value
Id	INT	false
FilePath	NVARCHAR(255)	false
ScheduleId	INT	false

CONSTRAINTS

• FK_ScheduleFiles_Schedule

FOREIGN KEYS

• ScheduleId: Schedules

Schedules

Name	Data type	Nullable	Default Value
Id	INT	false
Title	NVARCHAR(100)	true
Details	TEXT	true
StartsAt	DATETIME2(7)	false
EndsAt	DATETIME2(7)	false
ModuleId	INT	false

CONSTRAINTS

• FK_Schedules_Module

FOREIGN KEYS

• [ModuleId]: Modules

Users

Name	Data type	Nullable	Default Value
Id	UNIQUEIDENTIFIER	false	NEWID() 2
Email	NVARCHAR(320)	false
NormalizedEmail	NVARCHAR(320)	false
PasswordHash	BINARY(32)	false
FirstName	NVARCHAR(50)	false
LastName	NVARCHAR(100)	false
ProfilePicture	NVARCHAR(255)	false
BirthDate	DATE	false
ConcurrencyStamp	UNIQUEIDENTIFIER	false	NEWID() 2
SecurityStamp	UNIQUEIDENTIFIER	false	NEWID() 2
IsActive	BIT	false	0
CreatedAt	DATETIME2(7)	false	GETDATE() 1
UpdatedAt	DATETIME2(7)	true
DeletedAt	DATETIME2(7)	true

UsersModules

Name	Data type	Nullable	Default Value
UserId	UNIQUEIDENTIFIER	false
ModuleId	INT	false

PRIMARY KEY ([UserId], [ModuleId])

CONSTRAINTS

• FK_UsersModules_User
• FK_UsersModules_Module

FOREIGN KEYS

• UserId : Users
• ModuleId: Modules

UsersRoles

Name	Data type	Nullable	Default Value
UserId	UNIQUEIDENTIFIER	false
RoleId	UNIQUEIDENTIFIER	false

PRIMARY KEY ([UserId], [RoleId])

CONSTRAINTS

• FK_UsersRoles_User
• FK_UsersRoles_Role

FOREIGN KEYS

• UserId: Users
• RoleId: Roles

UsersTokens

Name	Data type	Nullable	Default Value
Id	UNIQUEIDENTIFIER	false	NEWID() 2
Type	NVARCHAR(100)	false
Value	NVARCHAR(64)	false
DeliveryDate	DATETIME2(7)	false	GETDATE() 1
ExpirationDate	DATETIME2(7)	false
UserId	UNIQUEIDENTIFIER	false

CONSTRAINTS

• FK_UsersTokens_User

PRIMARY KEYS

• [UserId]: Users

Footnotes

1. The GETDATE() function in MSSQL will return the current DATETIME2 value. Check here for more details ↩ ↩² ↩³ ↩⁴ ↩⁵

2. The NEWID() function in MSSQL will generated a new UNIQUEIDENTIFIER. Check here for more details ↩ ↩² ↩³ ↩⁴ ↩⁵
