OSC BOX 3 code info

[MLJ-ld]

Hi, thank you for your work.
I wanted to ask if I can use a virtule "SHIFT" key with the encoders (from pc or mac keyboard) and leave me the tree pin for other things. It's possible?
Then if I want to put 4 Ecoders and I have the pins available, can the library manage them? .. I was considering the exclusion of the display ... thank you for the advice
Giovanni.

[sstaub]

The shift button from the keyboard does not work, maybe you can use the encoder button as a shift button. The library is not limited in the number of the encoders.

[MLJ-ld]

Hi,
For the "load" on the faders, since the "load" key is not provided, does the pressure of "FIRE" + "STOP" generate the loading of the content on the fader?
Thank you!
Giovanni

[sstaub]

That can't I say because OSC command are sometimes different to console buttons (e.g. Shift), but it should easy to extend to Fader class.

[MLJ-ld]

I merged the sketch fader wing with sketch box3 and the ide gives no errors. As for the button debouncing I couldn't figure out where it's nested; in my first experience I used millis and set 5 MS for debouncing; how is this thought here? (I'm a newbie, thanks for your patience).
I am used to using simpler codes where I directly write the OSC message that I want to send from the button; this seems to me very evolved how does it send the specific oSC message to EOS? I can't "visualize" this thing .. because of my incompetence; thank you in advance for the answers.

[sstaub]

For debouncing us 100nF caps. For sending data only the is a small library https://github.com/sstaub/OSC
But you must do the handshake with SLIP manually.

[MLJ-ld]

Hi,
I would to like modify FADER Wing sketch, I like remove stop and play buttons; i need only fader controls, but if I modify sketch without #define buttons and modify hardware constructor without play and stop, the sketch throws an error... does I make a wrong procedure or isn't possible esclude play and stop?
Regards.. I need only farder to control global FX from arduino.

[sstaub]

You should post the code and the error messages, without I can't help you. The next version will allow you that you can only use the fader, but the release will need some time.

[MLJ-ld]

Tomorrow I post code and error message, thank you.

[MLJ-ld]

Hi,
follow 1st sketch without errors...(i think...i hope...)
follow 2nd sketch with errors and errors message..
( i used ctrl + e but the code is always white..)
`/**************************************************************************************************************
Includes
*************************************************************************************************************/
#include <OSCBoards.h>
#include "eOS.h"
#include "Arduino.h"
#include <OSCBundle.h>
#include <OSCData.h>
#include <OSCMatch.h>
#include <OSCMessage.h>
#include <OSCTiming.h>
#ifdef BOARD_HAS_USB_SERIAL

#include <SLIPEncodedUSBSerial.h>
SLIPEncodedUSBSerial SLIPSerial(thisBoardsSerialUSB);
#else
#include <SLIPEncodedSerial.h>
SLIPEncodedSerial SLIPSerial(Serial);
#endif
#include <string.h>

/**************************************************************************************************************
DEfiniamo i pin dei fader
*************************************************************************************************************/

#define FADER_1_LEVELER A0
#define FADER_1_FIRE_BUTTON 2
#define FADER_1_STOP_BUTTON 3
#define FADER_2_LEVELER A1
#define FADER_2_FIRE_BUTTON 4
#define FADER_2_STOP_BUTTON 5
#define FADER_3_LEVELER A2
#define FADER_3_FIRE_BUTTON 6
#define FADER_3_STOP_BUTTON 7
#define FADER_4_LEVELER A3
#define FADER_4_FIRE_BUTTON 8
#define FADER_4_STOP_BUTTON 9
#define FADER_5_LEVELER A4
#define FADER_5_FIRE_BUTTON 10
#define FADER_5_STOP_BUTTON 11
#define FADER_6_LEVELER A5
#define FADER_6_FIRE_BUTTON 12
#define FADER_6_STOP_BUTTON 13

/**************************************************************************************************************
Macro e Costanti
*************************************************************************************************************/
#define PING_AFTER_IDLE_INTERVAL 2500
#define TIMEOUT_AFTER_IDLE_INTERVAL 5000

#define FADER_PAGE 30 // fader page on EOS / Nomad
#define NUMBER_OF_FADERS 10 // size of the faders per page on EOS / Nomad
#define FADER_BANK 30 // virtuell OSC bank

const String HANDSHAKE_QUERY = "ETCOSC?";
const String HANDSHAKE_REPLY = "OK";

/**************************************************************************************************************
Variabili Globali
**************************************************************************************************************/
bool connectedToEos = false;
unsigned long lastMessageRxTime = 0;
bool timeoutPingSent = false;

/**************************************************************************************************************
Costruiamo l'Hardware
**************************************************************************************************************/

EOS eos;
Fader fader1(FADER_1_LEVELER, FADER_1_FIRE_BUTTON, FADER_1_STOP_BUTTON, 1, FADER_BANK);
Fader fader2(FADER_2_LEVELER, FADER_2_FIRE_BUTTON, FADER_2_STOP_BUTTON, 2, FADER_BANK);
Fader fader3(FADER_3_LEVELER, FADER_3_FIRE_BUTTON, FADER_3_STOP_BUTTON, 3, FADER_BANK);
Fader fader4(FADER_4_LEVELER, FADER_4_FIRE_BUTTON, FADER_4_STOP_BUTTON, 4, FADER_BANK);
Fader fader5(FADER_5_LEVELER, FADER_5_FIRE_BUTTON, FADER_5_STOP_BUTTON, 5, FADER_BANK);
Fader fader6(FADER_6_LEVELER, FADER_6_FIRE_BUTTON, FADER_6_STOP_BUTTON, 6, FADER_BANK);

/**************************************************************************************************************
Funzione di Handshake per fader e bottoni
**************************************************************************************************************/

void initEOS() {
SLIPSerial.print(HANDSHAKE_REPLY);
filter("/eos/out/ping");
initFaders(FADER_PAGE, NUMBER_OF_FADERS, FADER_BANK);
}
/**************************************************************************************************************
Setup Pin digitali Arduino creiamo array secondo l'ordine in cui li vogliamo
*************************************************************************************************************/

int buttonPins[40] =
{
45, 2, 3, 4, // X Y Z W
11, 12, 13, // A B C
8, 9, 10, // D E F
5, 6, 7, // G H I
22, 23, 24, // L M N
25, 26, 27, // J Q K
47, // s1
48, 49, // s2 s3
50, 51, 52, 53, // s4 s5 s6 s7
28, // 1
29, // 2
30, // 3
31, // 4
32, // 5
33, // 6
34, // 7
35, // 8
36, // 9
37, // 0
38, // -
39, // +
40, // back
41, // home

};

/**************************************************************************************************************
Stato Pin
inizializza tutti gli stati dei pulsanti come up con un array(si poteva scrivere anche true al posto di 1)
*************************************************************************************************************/

bool buttonState[40] =
{
1, 1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1,
1, 1,
1, 1, 1, 1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
};

/**************************************************************************************************************
Impostiamo un Array per il time del bottons timers usando millis
*************************************************************************************************************/

unsigned long buttonTimers[40]
{
millis(), millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(),
millis(), millis(),
millis(), millis(), millis(), millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
};

/**************************************************************************************************************
Scriviamo i messaggi OSC che vogliamo mandare alla pressione del pulsante, stesso ordine dei pin.
*************************************************************************************************************/

const String buttonDowns[40]
{
/X/"eos/sub/751/full",
/Y/"eos/sub/752/full",
/Z/"eos/sub/753/full",
/W/"eos/sub/754/full",

/A/"/eos/cue/50/1/fire",
/B/"/eos/cue/50/2/fire",
/C/"/eos/cue/50/3/fire",

/D/"/eos/cue/50/4/fire",
/E/"/eos/cue/50/5/fire",
/F/"/eos/cue/50/6/fire",

/G/"eos/key/go",
/H/"eos/key/back",
/I/"eos/key/offset",

/L/"/eos/cue/50/7/fire",
/M/"/eos/cue/50/8/fire",
/N/"/eos/cue/50/9/fire",

/J/"eos/sub/755/full",
/Q/"eos/sub/756/full",
/K/"eos/sub/757/full",

/s1/"eos/macro/9101/fire", //macro in background con snapshot

/s2/"eos/macro/9102/fire",
/s3/"eos/macro/9103/fire",

/s4/"eos/macro/9104/fire",
/s5/"eos/macro/9105/fire",
/s6/"eos/macro/9106/fire",
/s7/"eos/macro/9107/fire",

/*1 */"/eos/cue/22/1/fire",
/*2 */"/eos/cue/22/2/fire",
/*3 */"/eos/cue/22/3/fire",
/*4 */"/eos/cue/22/4/fire",
/*5 */"/eos/cue/22/5/fire",
/*6 */"/eos/cue/22/6/fire",
/*7 */"/eos/cue/22/7/fire",
/*8 */"/eos/cue/22/8/fire",
/9 /"/eos/cue/22/9/fire",
/0 /"/eos/cue/22/10/fire",
/-/"/eos/key/next",
/+/"/eos/key/last",
/BS/"/eos/key/undo",
/Home/"/eos/key/home",

};

/**************************************************************************************************************
Scriviamo i messaggi OSC che/se vogliamo mandare al rilascio dei pulsanti, nello stesso ordine dei pin
*************************************************************************************************************/

const String buttonUps[40]
{
/X/"eos/sub/751/out",/per submaster out in 0 secondi impostare SNEAK 0 in setup/
/Y/"eos/sub/752/out",
/Z/"eos/sub/753/out",
/W/"eos/sub/754/out",

/A/"eos/cue/50/0/fire",
/B/"eos/cue/50/0/fire",
/C/"eos/cue/50/0/fire",

/D/"eos/cue/50/0/fire",
/E/"eos/cue/50/0/fire",
/F/"eos/cue/50/0/fire",

/G/"",
/H/"",
/I/"",

/L/"eos/cue/50/0/fire",
/M/"eos/cue/50/0/fire",
/N/"eos/cue/50/0/fire",

/J/"eos/sub/755/out",
/Q/"eos/sub/756/out",
/K/"eos/sub/757/out",

/s1/"",

/s2/"eos/macro/9113/fire",
/s3/"eos/macro/9114/fire",

/s4/"",
/s5/"",
/s6/"",
/s7/"",

/*1 */"",
/*2 */"",
/*3 */"",
/*4 */"",
/*5 */"",
/*6 */"",
/*7 */"",
/*8 */"",
/9 /"",
/0 /"",
/-/"",
/+/"",
/BS/"",
/Home/"",

};

/**************************************************************************************************************
Impostiamo i millisecondi per il debouncing
*************************************************************************************************************/

int keyBounce = 5;

void parseOSCMessage(String& msg)
{
// check to see if this is the handshake string
if (msg.indexOf(HANDSHAKE_QUERY) != -1)
{
// handshake string found!
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
}
}

/*******************************************************************************
Here we prepare to communicate OSC with Eos by setting up SLIPSerial. Once
we are done with setup() we pass control over to loop() and never call
setup() again.
Parameters: none
Return Value: void
******************************************************************************/
void setup()
{
SLIPSerial.begin(115200);
// This is a hack around an Arduino bug. It was taken from the OSC library
// examples
#ifdef BOARD_HAS_USB_SERIAL
while (!SerialUSB);
#else
while (!Serial);
#endif

// this is necessary for reconnecting a device because it needs some time
// for the serial port to open, but meanwhile the handshake message was
// sent from Eos
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
// Inizializzazione di tutti i pulsanti input PULLUP mode

for (int i = 0; i < 40; i++) pinMode(buttonPins[i], INPUT_PULLUP);
//while (NoHandshake) HandShake();
initEOS();
}

/*******************************************************************************
Main loop: manage OSC I/O. Send a ping command to Eos every second.
Parameters: none
Return Value: void
******************************************************************************/
void loop()
{
for (int i = 0; i < 40; i++)
{
if (digitalRead(buttonPins[i]) != buttonState[i])
{
if ((millis() - buttonTimers[i]) > keyBounce)// misura il tempo di arduino e si assicura che siano passati 5 millisecondi
{
if (buttonState[i]) sendOSCString(buttonDowns[i]);//invia messaggo con pressione bottone verso il basso
else sendOSCString(buttonUps[i]);
buttonState[i] = !buttonState[i];//capovolge lo stato della variabile
buttonTimers[i] = millis();
}
}
}
static String curMsg;
static unsigned long lastTimeSent;
static int32_t pingNum;
unsigned long curTime;
int size;

fader1.update();
fader2.update();
fader3.update();
fader4.update();
fader5.update();
fader6.update();

// Check to see if any OSC commands have come from Eos that we need to respond to.
size = SLIPSerial.available();
if (size > 0)
{
// Fill the msg with all of the available bytes
while (size--) curMsg += (char)(SLIPSerial.read());
}
if (SLIPSerial.endofPacket())
{
parseOSCMessage(curMsg);
curMsg = String();
}

// Send a ping every second.
curTime = millis();
if (curTime - lastTimeSent > 1000)
{
OSCMessage ping("/eos/ping");
ping.add(pingNum++);
SLIPSerial.beginPacket();
ping.send(SLIPSerial);
SLIPSerial.endPacket();
lastTimeSent = curTime;
}
}
void sendOSCString(String buttonMessage)
{
OSCMessage buttonMsg(buttonMessage.c_str());//Cambia la stringa in un messaggio OSC
SLIPSerial.beginPacket(); // Processo per iniziare un messaggio OSc
buttonMsg.send(SLIPSerial); // invia il nostro messaggio OSC
SLIPSerial.endPacket(); // invia il nostro messaggio OSC
}`

code with errors
`/**************************************************************************************************************
Includes
*************************************************************************************************************/
#include <OSCBoards.h>
#include "eOS.h"
#include "Arduino.h"
#include <OSCBundle.h>
#include <OSCData.h>
#include <OSCMatch.h>
#include <OSCMessage.h>
#include <OSCTiming.h>
#ifdef BOARD_HAS_USB_SERIAL

#include <SLIPEncodedUSBSerial.h>
SLIPEncodedUSBSerial SLIPSerial(thisBoardsSerialUSB);
#else
#include <SLIPEncodedSerial.h>
SLIPEncodedSerial SLIPSerial(Serial);
#endif
#include <string.h>

/**************************************************************************************************************
DEfiniamo i pin dei fader
*************************************************************************************************************/

#define FADER_1_LEVELER A0

#define FADER_2_LEVELER A1

#define FADER_3_LEVELER A2

#define FADER_4_LEVELER A3

#define FADER_5_LEVELER A4

#define FADER_6_LEVELER A5

/**************************************************************************************************************
Macro e Costanti
*************************************************************************************************************/
#define PING_AFTER_IDLE_INTERVAL 2500
#define TIMEOUT_AFTER_IDLE_INTERVAL 5000

#define FADER_PAGE 30 // fader page on EOS / Nomad
#define NUMBER_OF_FADERS 10 // size of the faders per page on EOS / Nomad
#define FADER_BANK 30 // virtuell OSC bank

const String HANDSHAKE_QUERY = "ETCOSC?";
const String HANDSHAKE_REPLY = "OK";

/**************************************************************************************************************
Variabili Globali
**************************************************************************************************************/
bool connectedToEos = false;
unsigned long lastMessageRxTime = 0;
bool timeoutPingSent = false;

/**************************************************************************************************************
Costruiamo l'Hardware
**************************************************************************************************************/

EOS eos;
Fader fader1(FADER_1_LEVELER, 1, FADER_BANK);
Fader fader2(FADER_2_LEVELER, 2, FADER_BANK);
Fader fader3(FADER_3_LEVELER, 3, FADER_BANK);
Fader fader4(FADER_4_LEVELER, 4, FADER_BANK);
Fader fader5(FADER_5_LEVELER, 5, FADER_BANK);
Fader fader6(FADER_6_LEVELER, 6, FADER_BANK);

/**************************************************************************************************************
Funzione di Handshake per fader e bottoni
**************************************************************************************************************/

void initEOS() {
SLIPSerial.print(HANDSHAKE_REPLY);
filter("/eos/out/ping");
initFaders(FADER_PAGE, NUMBER_OF_FADERS, FADER_BANK);
}
/**************************************************************************************************************
Setup Pin digitali Arduino creiamo array secondo l'ordine in cui li vogliamo
*************************************************************************************************************/

int buttonPins[40] =
{
45, 2, 3, 4, // X Y Z W
11, 12, 13, // A B C
8, 9, 10, // D E F
5, 6, 7, // G H I
22, 23, 24, // L M N
25, 26, 27, // J Q K
47, // s1
48, 49, // s2 s3
50, 51, 52, 53, // s4 s5 s6 s7
28, // 1
29, // 2
30, // 3
31, // 4
32, // 5
33, // 6
34, // 7
35, // 8
36, // 9
37, // 0
38, // -
39, // +
40, // back
41, // home

};

/**************************************************************************************************************
Stato Pin
inizializza tutti gli stati dei pulsanti come up con un array(si poteva scrivere anche true al posto di 1)
*************************************************************************************************************/

bool buttonState[40] =
{
1, 1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1,
1, 1,
1, 1, 1, 1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
};

/**************************************************************************************************************
Impostiamo un Array per il time del bottons timers usando millis
*************************************************************************************************************/

unsigned long buttonTimers[40]
{
millis(), millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(),
millis(), millis(),
millis(), millis(), millis(), millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
};

/**************************************************************************************************************
Scriviamo i messaggi OSC che vogliamo mandare alla pressione del pulsante, stesso ordine dei pin.
*************************************************************************************************************/

const String buttonDowns[40]
{
/X/"eos/sub/751/full",
/Y/"eos/sub/752/full",
/Z/"eos/sub/753/full",
/W/"eos/sub/754/full",

/A/"/eos/cue/50/1/fire",
/B/"/eos/cue/50/2/fire",
/C/"/eos/cue/50/3/fire",

/D/"/eos/cue/50/4/fire",
/E/"/eos/cue/50/5/fire",
/F/"/eos/cue/50/6/fire",

/G/"eos/key/go",
/H/"eos/key/back",
/I/"eos/key/offset",

/L/"/eos/cue/50/7/fire",
/M/"/eos/cue/50/8/fire",
/N/"/eos/cue/50/9/fire",

/J/"eos/sub/755/full",
/Q/"eos/sub/756/full",
/K/"eos/sub/757/full",

/s1/"eos/macro/9101/fire", //macro in background con snapshot

/s2/"eos/macro/9102/fire",
/s3/"eos/macro/9103/fire",

/s4/"eos/macro/9104/fire",
/s5/"eos/macro/9105/fire",
/s6/"eos/macro/9106/fire",
/s7/"eos/macro/9107/fire",

/*1 */"/eos/cue/22/1/fire",
/*2 */"/eos/cue/22/2/fire",
/*3 */"/eos/cue/22/3/fire",
/*4 */"/eos/cue/22/4/fire",
/*5 */"/eos/cue/22/5/fire",
/*6 */"/eos/cue/22/6/fire",
/*7 */"/eos/cue/22/7/fire",
/*8 */"/eos/cue/22/8/fire",
/9 /"/eos/cue/22/9/fire",
/0 /"/eos/cue/22/10/fire",
/-/"/eos/key/next",
/+/"/eos/key/last",
/BS/"/eos/key/undo",
/Home/"/eos/key/home",

};

/**************************************************************************************************************
Scriviamo i messaggi OSC che/se vogliamo mandare al rilascio dei pulsanti, nello stesso ordine dei pin
*************************************************************************************************************/

const String buttonUps[40]
{
/X/"eos/sub/751/out",/per submaster out in 0 secondi impostare SNEAK 0 in setup/
/Y/"eos/sub/752/out",
/Z/"eos/sub/753/out",
/W/"eos/sub/754/out",

/A/"eos/cue/50/0/fire",
/B/"eos/cue/50/0/fire",
/C/"eos/cue/50/0/fire",

/D/"eos/cue/50/0/fire",
/E/"eos/cue/50/0/fire",
/F/"eos/cue/50/0/fire",

/G/"",
/H/"",
/I/"",

/L/"eos/cue/50/0/fire",
/M/"eos/cue/50/0/fire",
/N/"eos/cue/50/0/fire",

/J/"eos/sub/755/out",
/Q/"eos/sub/756/out",
/K/"eos/sub/757/out",

/s1/"",

/s2/"eos/macro/9113/fire",
/s3/"eos/macro/9114/fire",

/s4/"",
/s5/"",
/s6/"",
/s7/"",

/*1 */"",
/*2 */"",
/*3 */"",
/*4 */"",
/*5 */"",
/*6 */"",
/*7 */"",
/*8 */"",
/9 /"",
/0 /"",
/-/"",
/+/"",
/BS/"",
/Home/"",

};

/**************************************************************************************************************
Impostiamo i millisecondi per il debouncing
*************************************************************************************************************/

int keyBounce = 5;

void parseOSCMessage(String& msg)
{
// check to see if this is the handshake string
if (msg.indexOf(HANDSHAKE_QUERY) != -1)
{
// handshake string found!
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
}
}

/*******************************************************************************
Here we prepare to communicate OSC with Eos by setting up SLIPSerial. Once
we are done with setup() we pass control over to loop() and never call
setup() again.
Parameters: none
Return Value: void
******************************************************************************/
void setup()
{
SLIPSerial.begin(115200);
// This is a hack around an Arduino bug. It was taken from the OSC library
// examples
#ifdef BOARD_HAS_USB_SERIAL
while (!SerialUSB);
#else
while (!Serial);
#endif

// this is necessary for reconnecting a device because it needs some time
// for the serial port to open, but meanwhile the handshake message was
// sent from Eos
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
// Inizializzazione di tutti i pulsanti input PULLUP mode

for (int i = 0; i < 40; i++) pinMode(buttonPins[i], INPUT_PULLUP);
//while (NoHandshake) HandShake();
initEOS();
}

/*******************************************************************************
Main loop: manage OSC I/O. Send a ping command to Eos every second.
Parameters: none
Return Value: void
******************************************************************************/
void loop()
{
for (int i = 0; i < 40; i++)
{
if (digitalRead(buttonPins[i]) != buttonState[i])
{
if ((millis() - buttonTimers[i]) > keyBounce)// misura il tempo di arduino e si assicura che siano passati 5 millisecondi
{
if (buttonState[i]) sendOSCString(buttonDowns[i]);//invia messaggo con pressione bottone verso il basso
else sendOSCString(buttonUps[i]);
buttonState[i] = !buttonState[i];//capovolge lo stato della variabile
buttonTimers[i] = millis();
}
}
}
static String curMsg;
static unsigned long lastTimeSent;
static int32_t pingNum;
unsigned long curTime;
int size;

fader1.update();
fader2.update();
fader3.update();
fader4.update();
fader5.update();
fader6.update();

// Check to see if any OSC commands have come from Eos that we need to respond to.
size = SLIPSerial.available();
if (size > 0)
{
// Fill the msg with all of the available bytes
while (size--) curMsg += (char)(SLIPSerial.read());
}
if (SLIPSerial.endofPacket())
{
parseOSCMessage(curMsg);
curMsg = String();
}

// Send a ping every second.
curTime = millis();
if (curTime - lastTimeSent > 1000)
{
OSCMessage ping("/eos/ping");
ping.add(pingNum++);
SLIPSerial.beginPacket();
ping.send(SLIPSerial);
SLIPSerial.endPacket();
lastTimeSent = curTime;
}
}
void sendOSCString(String buttonMessage)
{
OSCMessage buttonMsg(buttonMessage.c_str());//Cambia la stringa in un messaggio OSC
SLIPSerial.beginPacket(); // Processo per iniziare un messaggio OSc
buttonMsg.send(SLIPSerial); // invia il nostro messaggio OSC
SLIPSerial.endPacket(); // invia il nostro messaggio OSC
}`

errors message:

MLJ_POWER_BUTTONS_CON_FADER_4.0:64:45: error: no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'

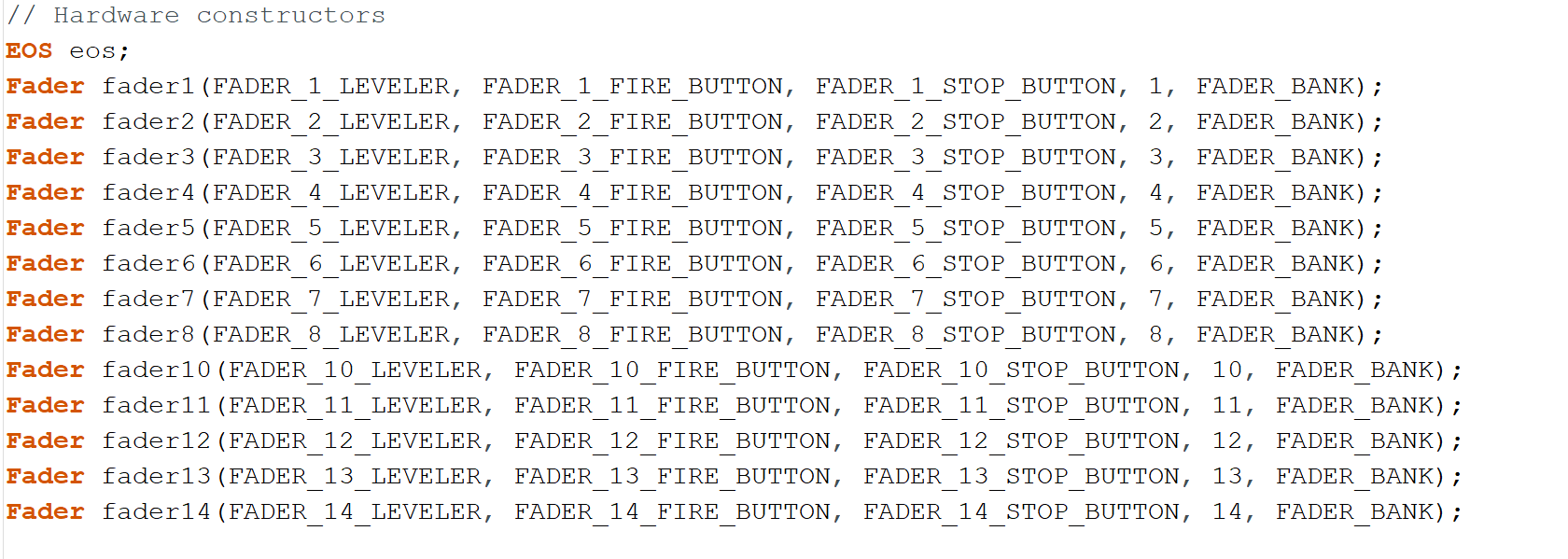

Fader fader1(FADER_1_LEVELER, 1, FADER_BANK);
^
In file included from C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\MLJ_POWER_BUTTONS_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0.ino:5:0:
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate: Fader::Fader(uint8_t, uint8_t, uint8_t, uint8_t, uint8_t)
Fader(uint8_t analogPin, uint8_t firePin, uint8_t stopPin, uint8_t fader, uint8_t bank = 1);
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate expects 5 arguments, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(const Fader&)
class Fader {
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(Fader&&)
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
MLJ_POWER_BUTTONS_CON_FADER_4.0:65:45: error: no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'
Fader fader2(FADER_2_LEVELER, 2, FADER_BANK);
^
In file included from C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\MLJ_POWER_BUTTONS_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0.ino:5:0:
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate: Fader::Fader(uint8_t, uint8_t, uint8_t, uint8_t, uint8_t)
Fader(uint8_t analogPin, uint8_t firePin, uint8_t stopPin, uint8_t fader, uint8_t bank = 1);
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate expects 5 arguments, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(const Fader&)
class Fader {
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(Fader&&)
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
MLJ_POWER_BUTTONS_CON_FADER_4.0:66:45: error: no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'
Fader fader3(FADER_3_LEVELER, 3, FADER_BANK);
^
In file included from C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\MLJ_POWER_BUTTONS_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0.ino:5:0:
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate: Fader::Fader(uint8_t, uint8_t, uint8_t, uint8_t, uint8_t)
Fader(uint8_t analogPin, uint8_t firePin, uint8_t stopPin, uint8_t fader, uint8_t bank = 1);
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate expects 5 arguments, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(const Fader&)
class Fader {
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(Fader&&)
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
MLJ_POWER_BUTTONS_CON_FADER_4.0:67:45: error: no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'
Fader fader4(FADER_4_LEVELER, 4, FADER_BANK);
^
In file included from C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\MLJ_POWER_BUTTONS_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0.ino:5:0:
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate: Fader::Fader(uint8_t, uint8_t, uint8_t, uint8_t, uint8_t)
Fader(uint8_t analogPin, uint8_t firePin, uint8_t stopPin, uint8_t fader, uint8_t bank = 1);
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate expects 5 arguments, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(const Fader&)
class Fader {
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(Fader&&)
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
MLJ_POWER_BUTTONS_CON_FADER_4.0:68:45: error: no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'
Fader fader5(FADER_5_LEVELER, 5, FADER_BANK);
^
In file included from C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\MLJ_POWER_BUTTONS_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0.ino:5:0:
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate: Fader::Fader(uint8_t, uint8_t, uint8_t, uint8_t, uint8_t)
Fader(uint8_t analogPin, uint8_t firePin, uint8_t stopPin, uint8_t fader, uint8_t bank = 1);
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate expects 5 arguments, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(const Fader&)
class Fader {
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(Fader&&)
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
MLJ_POWER_BUTTONS_CON_FADER_4.0:69:45: error: no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'
Fader fader6(FADER_6_LEVELER, 6, FADER_BANK);
^
In file included from C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\MLJ_POWER_BUTTONS_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0\MLJ_POWER_BUTTONS_CON_FADER_4.0.ino:5:0:
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate: Fader::Fader(uint8_t, uint8_t, uint8_t, uint8_t, uint8_t)
Fader(uint8_t analogPin, uint8_t firePin, uint8_t stopPin, uint8_t fader, uint8_t bank = 1);
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:400:2: note: candidate expects 5 arguments, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(const Fader&)
class Fader {
^~~~~
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate: Fader::Fader(Fader&&)
C:\Users\MLJ\Desktop\DROPBOX\Dropbox\Arduino\libraries\eOS-1.1.0/eOS.h:387:7: note: candidate expects 1 argument, 3 provided
exit status 1
no matching function for call to 'Fader::Fader(const uint8_t&, int, int)'

[MLJ-ld]

hypothesis of solution? .. with dummies pin not connected
`/**************************************************************************************************************
Includes
*************************************************************************************************************/
#include <OSCBoards.h>
#include "eOS.h"
#include "Arduino.h"
#include <OSCBundle.h>
#include <OSCData.h>
#include <OSCMatch.h>
#include <OSCMessage.h>
#include <OSCTiming.h>
#ifdef BOARD_HAS_USB_SERIAL

#include <SLIPEncodedUSBSerial.h>
SLIPEncodedUSBSerial SLIPSerial(thisBoardsSerialUSB);
#else
#include <SLIPEncodedSerial.h>
SLIPEncodedSerial SLIPSerial(Serial);
#endif
#include <string.h>

/**************************************************************************************************************
DEfiniamo i pin dei fader
*************************************************************************************************************/

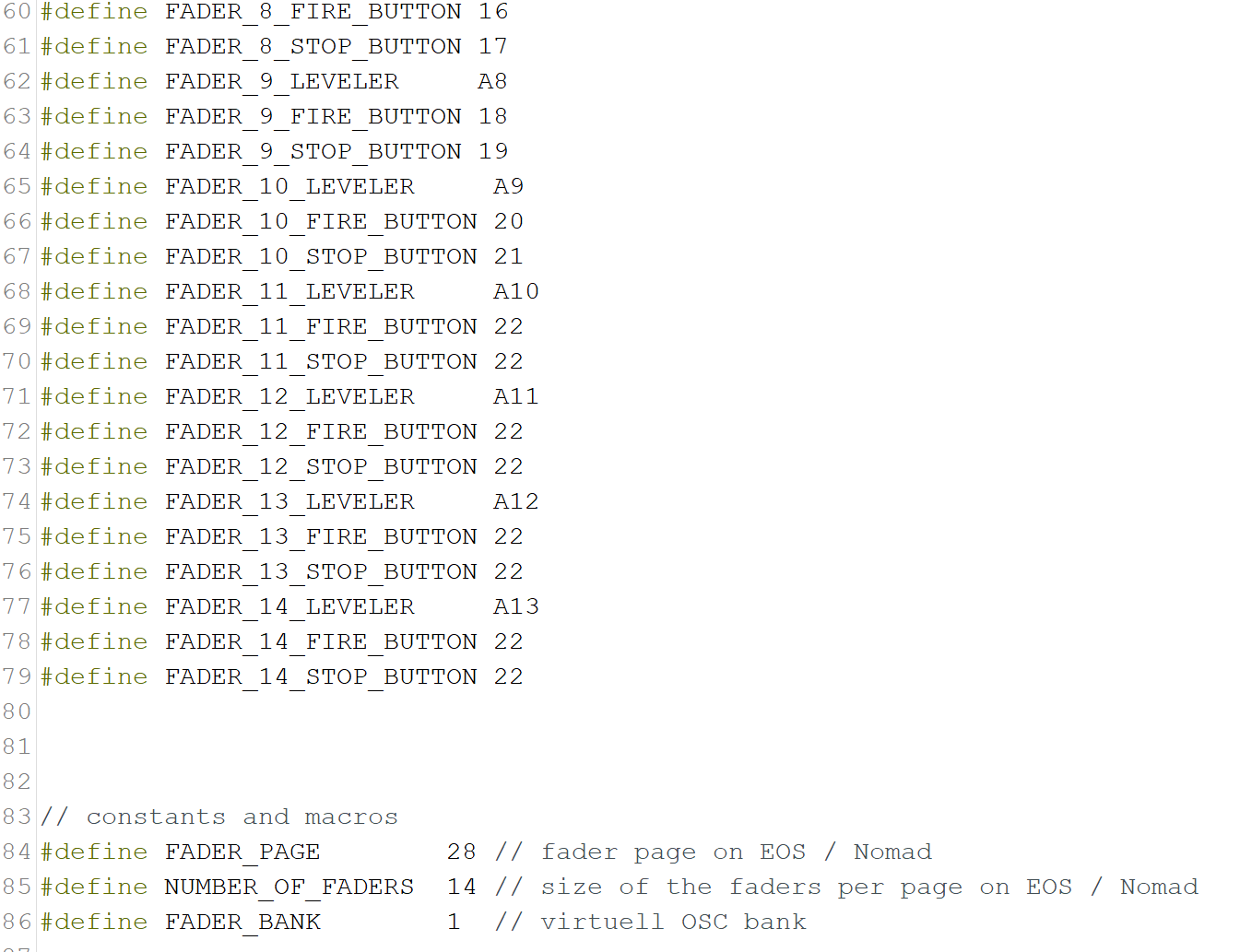

#define FADER_1_LEVELER A0
#define FADER_1_FIRE_BUTTON 2
#define FADER_1_STOP_BUTTON 2
#define FADER_2_LEVELER A1
#define FADER_2_FIRE_BUTTON 2
#define FADER_2_STOP_BUTTON 2
#define FADER_3_LEVELER A2
#define FADER_3_FIRE_BUTTON 2
#define FADER_3_STOP_BUTTON 2
#define FADER_4_LEVELER A3
#define FADER_4_FIRE_BUTTON 2
#define FADER_4_STOP_BUTTON 2
#define FADER_5_LEVELER A4
#define FADER_5_FIRE_BUTTON 2
#define FADER_5_STOP_BUTTON 2
#define FADER_6_LEVELER A5
#define FADER_6_FIRE_BUTTON 2
#define FADER_6_STOP_BUTTON 2

/**************************************************************************************************************
Macro e Costanti
*************************************************************************************************************/
#define PING_AFTER_IDLE_INTERVAL 2500
#define TIMEOUT_AFTER_IDLE_INTERVAL 5000

#define FADER_PAGE 30 // fader page on EOS / Nomad
#define NUMBER_OF_FADERS 10 // size of the faders per page on EOS / Nomad
#define FADER_BANK 30 // virtuell OSC bank

const String HANDSHAKE_QUERY = "ETCOSC?";
const String HANDSHAKE_REPLY = "OK";

/**************************************************************************************************************
Variabili Globali
**************************************************************************************************************/
bool connectedToEos = false;
unsigned long lastMessageRxTime = 0;
bool timeoutPingSent = false;

/**************************************************************************************************************
Costruiamo l'Hardware
**************************************************************************************************************/

EOS eos;
Fader fader1(FADER_1_LEVELER, FADER_1_FIRE_BUTTON, FADER_1_STOP_BUTTON, 1, FADER_BANK);
Fader fader2(FADER_2_LEVELER, FADER_2_FIRE_BUTTON, FADER_2_STOP_BUTTON, 2, FADER_BANK);
Fader fader3(FADER_3_LEVELER, FADER_3_FIRE_BUTTON, FADER_3_STOP_BUTTON, 3, FADER_BANK);
Fader fader4(FADER_4_LEVELER, FADER_4_FIRE_BUTTON, FADER_4_STOP_BUTTON, 4, FADER_BANK);
Fader fader5(FADER_5_LEVELER, FADER_5_FIRE_BUTTON, FADER_5_STOP_BUTTON, 5, FADER_BANK);
Fader fader6(FADER_6_LEVELER, FADER_6_FIRE_BUTTON, FADER_6_STOP_BUTTON, 6, FADER_BANK);

/**************************************************************************************************************
Funzione di Handshake per fader e bottoni
**************************************************************************************************************/

void initEOS() {
SLIPSerial.print(HANDSHAKE_REPLY);
filter("/eos/out/ping");
initFaders(FADER_PAGE, NUMBER_OF_FADERS, FADER_BANK);
}
/**************************************************************************************************************
Setup Pin digitali Arduino creiamo array secondo l'ordine in cui li vogliamo
*************************************************************************************************************/

int buttonPins[40] =
{
45, 2, 3, 4, // X Y Z W
11, 12, 13, // A B C
8, 9, 10, // D E F
5, 6, 7, // G H I
22, 23, 24, // L M N
25, 26, 27, // J Q K
47, // s1
48, 49, // s2 s3
50, 51, 52, 53, // s4 s5 s6 s7
28, // 1
29, // 2
30, // 3
31, // 4
32, // 5
33, // 6
34, // 7
35, // 8
36, // 9
37, // 0
38, // -
39, // +
40, // back
41, // home

};

/**************************************************************************************************************
Stato Pin
inizializza tutti gli stati dei pulsanti come up con un array(si poteva scrivere anche true al posto di 1)
*************************************************************************************************************/

bool buttonState[40] =
{
1, 1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1, 1, 1,
1,
1, 1,
1, 1, 1, 1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
1,
};

/**************************************************************************************************************
Impostiamo un Array per il time del bottons timers usando millis
*************************************************************************************************************/

unsigned long buttonTimers[40]
{
millis(), millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(),
millis(), millis(),
millis(), millis(), millis(), millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
millis(),
};

/**************************************************************************************************************
Scriviamo i messaggi OSC che vogliamo mandare alla pressione del pulsante, stesso ordine dei pin.
*************************************************************************************************************/

const String buttonDowns[40]
{
/X/"eos/sub/751/full",
/Y/"eos/sub/752/full",
/Z/"eos/sub/753/full",
/W/"eos/sub/754/full",

/A/"/eos/cue/50/1/fire",
/B/"/eos/cue/50/2/fire",
/C/"/eos/cue/50/3/fire",

/D/"/eos/cue/50/4/fire",
/E/"/eos/cue/50/5/fire",
/F/"/eos/cue/50/6/fire",

/G/"eos/key/go",
/H/"eos/key/back",
/I/"eos/key/offset",

/L/"/eos/cue/50/7/fire",
/M/"/eos/cue/50/8/fire",
/N/"/eos/cue/50/9/fire",

/J/"eos/sub/755/full",
/Q/"eos/sub/756/full",
/K/"eos/sub/757/full",

/s1/"eos/macro/9101/fire", //macro in background con snapshot

/s2/"eos/macro/9102/fire",
/s3/"eos/macro/9103/fire",

/s4/"eos/macro/9104/fire",
/s5/"eos/macro/9105/fire",
/s6/"eos/macro/9106/fire",
/s7/"eos/macro/9107/fire",

/*1 */"/eos/cue/22/1/fire",
/*2 */"/eos/cue/22/2/fire",
/*3 */"/eos/cue/22/3/fire",
/*4 */"/eos/cue/22/4/fire",
/*5 */"/eos/cue/22/5/fire",
/*6 */"/eos/cue/22/6/fire",
/*7 */"/eos/cue/22/7/fire",
/*8 */"/eos/cue/22/8/fire",
/9 /"/eos/cue/22/9/fire",
/0 /"/eos/cue/22/10/fire",
/-/"/eos/key/next",
/+/"/eos/key/last",
/BS/"/eos/key/undo",
/Home/"/eos/key/home",

};

/**************************************************************************************************************
Scriviamo i messaggi OSC che/se vogliamo mandare al rilascio dei pulsanti, nello stesso ordine dei pin
*************************************************************************************************************/

const String buttonUps[40]
{
/X/"eos/sub/751/out",/per submaster out in 0 secondi impostare SNEAK 0 in setup/
/Y/"eos/sub/752/out",
/Z/"eos/sub/753/out",
/W/"eos/sub/754/out",

/A/"eos/cue/50/0/fire",
/B/"eos/cue/50/0/fire",
/C/"eos/cue/50/0/fire",

/D/"eos/cue/50/0/fire",
/E/"eos/cue/50/0/fire",
/F/"eos/cue/50/0/fire",

/G/"",
/H/"",
/I/"",

/L/"eos/cue/50/0/fire",
/M/"eos/cue/50/0/fire",
/N/"eos/cue/50/0/fire",

/J/"eos/sub/755/out",
/Q/"eos/sub/756/out",
/K/"eos/sub/757/out",

/s1/"",

/s2/"eos/macro/9113/fire",
/s3/"eos/macro/9114/fire",

/s4/"",
/s5/"",
/s6/"",
/s7/"",

/*1 */"",
/*2 */"",
/*3 */"",
/*4 */"",
/*5 */"",
/*6 */"",
/*7 */"",
/*8 */"",
/9 /"",
/0 /"",
/-/"",
/+/"",
/BS/"",
/Home/"",

};

/**************************************************************************************************************
Impostiamo i millisecondi per il debouncing
*************************************************************************************************************/

int keyBounce = 5;

void parseOSCMessage(String& msg)
{
// check to see if this is the handshake string
if (msg.indexOf(HANDSHAKE_QUERY) != -1)
{
// handshake string found!
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
}
}

/*******************************************************************************
Here we prepare to communicate OSC with Eos by setting up SLIPSerial. Once
we are done with setup() we pass control over to loop() and never call
setup() again.
Parameters: none
Return Value: void
******************************************************************************/
void setup()
{
SLIPSerial.begin(115200);
// This is a hack around an Arduino bug. It was taken from the OSC library
// examples
#ifdef BOARD_HAS_USB_SERIAL
while (!SerialUSB);
#else
while (!Serial);
#endif

// this is necessary for reconnecting a device because it needs some time
// for the serial port to open, but meanwhile the handshake message was
// sent from Eos
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
// Inizializzazione di tutti i pulsanti input PULLUP mode

for (int i = 0; i < 40; i++) pinMode(buttonPins[i], INPUT_PULLUP);
//while (NoHandshake) HandShake();
initEOS();
}

/*******************************************************************************
Main loop: manage OSC I/O. Send a ping command to Eos every second.
Parameters: none
Return Value: void
******************************************************************************/
void loop()
{
for (int i = 0; i < 40; i++)
{
if (digitalRead(buttonPins[i]) != buttonState[i])
{
if ((millis() - buttonTimers[i]) > keyBounce)// misura il tempo di arduino e si assicura che siano passati 5 millisecondi
{
if (buttonState[i]) sendOSCString(buttonDowns[i]);//invia messaggo con pressione bottone verso il basso
else sendOSCString(buttonUps[i]);
buttonState[i] = !buttonState[i];//capovolge lo stato della variabile
buttonTimers[i] = millis();
}
}
}
static String curMsg;
static unsigned long lastTimeSent;
static int32_t pingNum;
unsigned long curTime;
int size;

fader1.update();
fader2.update();
fader3.update();
fader4.update();
fader5.update();
fader6.update();

// Check to see if any OSC commands have come from Eos that we need to respond to.
size = SLIPSerial.available();
if (size > 0)
{
// Fill the msg with all of the available bytes
while (size--) curMsg += (char)(SLIPSerial.read());
}
if (SLIPSerial.endofPacket())
{
parseOSCMessage(curMsg);
curMsg = String();
}

// Send a ping every second.
curTime = millis();
if (curTime - lastTimeSent > 1000)
{
OSCMessage ping("/eos/ping");
ping.add(pingNum++);
SLIPSerial.beginPacket();
ping.send(SLIPSerial);
SLIPSerial.endPacket();
lastTimeSent = curTime;
}
}
void sendOSCString(String buttonMessage)
{
OSCMessage buttonMsg(buttonMessage.c_str());//Cambia la stringa in un messaggio OSC
SLIPSerial.beginPacket(); // Processo per iniziare un messaggio OSc
buttonMsg.send(SLIPSerial); // invia il nostro messaggio OSC
SLIPSerial.endPacket(); // invia il nostro messaggio OSC
}`

[sstaub]

1. It will better to change the source code of the library.
2. Use a 100nF capacitor instead of software debounce.

[MLJ-ld]

hi,
1-is it a complicated modification of the library? could the dummies pin work?
2-actually I have already done the welds, but I can modify,(it will not be easy to remove all the debouncing strings, but I will work hard) where can I find the welding diagram of the capacitors?
thank you!

[sstaub]

1. No, it should not so much complicated
2. Use a 100nF ceramic capacitor (Code is 104) and place them between the buttons connectors.
   This will you give more performance. Also add a 10nF ceramic capacitor betwwen levelerer and grund of the fader. There are also some other hardware advices in the the eOS.h file

[MLJ-ld]

ok thanks, I'll try to modify the library.. sorry but code 104 is refer to? What is IOREF?
now i use rotative fader for global fx, i think is the same cocept of standard faders , always 10k..

[sstaub]

104 is the code for 100nF printed on the capacitor, 103 is the code for 10nF

[MLJ-ld]

Hi ,
I made some additions to your fader wing, and the rotary pots respond poorly compared to your sketck fader wing ... can I ask for advice on where I'm wrong?

follow sketch:
`/**************************************************************************************************************
Includes
*************************************************************************************************************/
int Pin_A7 = 54;
int Pin_A8 = 55;
int Pin_A9 = 56;
int Pin_A10 = 57;
int Pin_A11 = 58;
int Pin_A12 = 59;
int Pin_A13 = 60;
int Pin_A14 = 61;
int Pin_A15 = 62;

#include <OSCBoards.h>
#include "eOS.h"
#include "Arduino.h"
#include <OSCBundle.h>
#include <OSCData.h>
#include <OSCMatch.h>
#include <OSCMessage.h>
#include <OSCTiming.h>
#ifdef BOARD_HAS_USB_SERIAL
#include <SLIPEncodedUSBSerial.h>
SLIPEncodedUSBSerial SLIPSerial(thisBoardsSerialUSB);
#else
#include <SLIPEncodedSerial.h>
SLIPEncodedSerial SLIPSerial(Serial);
#endif
#include <string.h>

/**************************************************************************************************************
DEfiniamo i pin dei fader
*************************************************************************************************************/

#define FADER_1_LEVELER A0
#define FADER_1_FIRE_BUTTON 46
#define FADER_1_STOP_BUTTON 46
#define FADER_2_LEVELER A1
#define FADER_2_FIRE_BUTTON 46
#define FADER_2_STOP_BUTTON 46
#define FADER_3_LEVELER A2
#define FADER_3_FIRE_BUTTON 46
#define FADER_3_STOP_BUTTON 46
#define FADER_4_LEVELER A3
#define FADER_4_FIRE_BUTTON 46
#define FADER_4_STOP_BUTTON 46
#define FADER_5_LEVELER A4
#define FADER_5_FIRE_BUTTON 46
#define FADER_5_STOP_BUTTON 46
#define FADER_6_LEVELER A5
#define FADER_6_FIRE_BUTTON 46
#define FADER_6_STOP_BUTTON 46
//#define FADER_7_LEVELER A6
//#define FADER_7_FIRE_BUTTON 46
//#define FADER_7_STOP_BUTTON 46
/**************************************************************************************************************
Macro e Costanti
*************************************************************************************************************/
#define PING_AFTER_IDLE_INTERVAL 2500
#define TIMEOUT_AFTER_IDLE_INTERVAL 5000

#define FADER_PAGE 30 // fader page on EOS / Nomad
#define NUMBER_OF_FADERS 10 // size of the faders per page on EOS / Nomad
#define FADER_BANK 1 // virtuell OSC bank

const String HANDSHAKE_QUERY = "ETCOSC?";
const String HANDSHAKE_REPLY = "OK";

/**************************************************************************************************************
Variabili Globali
**************************************************************************************************************/
bool connectedToEos = false;
unsigned long lastMessageRxTime = 0;
bool timeoutPingSent = false;

/**************************************************************************************************************
Costruiamo l'Hardware
**************************************************************************************************************/

EOS eos;
Fader fader1(FADER_1_LEVELER, FADER_1_FIRE_BUTTON, FADER_1_STOP_BUTTON, 1, FADER_BANK);
Fader fader2(FADER_2_LEVELER, FADER_2_FIRE_BUTTON, FADER_2_STOP_BUTTON, 2, FADER_BANK);
Fader fader3(FADER_3_LEVELER, FADER_3_FIRE_BUTTON, FADER_3_STOP_BUTTON, 3, FADER_BANK);
Fader fader4(FADER_4_LEVELER, FADER_4_FIRE_BUTTON, FADER_4_STOP_BUTTON, 4, FADER_BANK);
Fader fader5(FADER_5_LEVELER, FADER_5_FIRE_BUTTON, FADER_5_STOP_BUTTON, 5, FADER_BANK);
Fader fader6(FADER_6_LEVELER, FADER_6_FIRE_BUTTON, FADER_6_STOP_BUTTON, 6, FADER_BANK);
//Fader fader7(FADER_7_LEVELER, FADER_7_FIRE_BUTTON, FADER_7_STOP_BUTTON, 7, FADER_BANK);

/**************************************************************************************************************
Setup Pin digitali Arduino creiamo array secondo l'ordine in cui li vogliamo
*************************************************************************************************************/

int buttonPins[21] =
{
2, // SUB 751
3, // SUB 752
4, // SUB 753
5, // SUB 754
6, // SUB 755
7, // SUB 756
8, // SUB 757
9, 22, // Q22/1 - Q22/2
10, 21, // Q22/9 - Q22/10
11, 20, // Q22/4 - Q22/13
12, 19, // Q22/1 - Q22/18
13, 18, // 3
14, 17, // 4
15, 16, // 5

};

/**************************************************************************************************************
Stato Pin
inizializza tutti gli stati dei pulsanti come up con un array(si poteva scrivere anche true al posto di 1)
*************************************************************************************************************/

bool buttonState[21] =
{
1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1,
};

/**************************************************************************************************************
Impostiamo un Array per il time del bottons timers usando millis
*************************************************************************************************************/

/signed long buttonTimers[21]
{
millis(), millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(), millis(), millis(),
millis(),
millis(),
};/

/**************************************************************************************************************
Scriviamo i messaggi OSC che vogliamo mandare alla pressione del pulsante, stesso ordine dei pin.
*************************************************************************************************************/

const String buttonDowns[21]
{
/SUB 751/"eos/sub/751/full",
/SUB 752/"eos/sub/752/full",
/SUB 753/"eos/sub/753/full",
/SUB 754/"eos/sub/754/full",
/SUB 755/"eos/sub/755/full",
/SUB 756/"eos/sub/756/full",
/SUB 757/"eos/sub/757/full",

/*Q22/1 */"/eos/cue/22/1/fire",
/*Q22/2 */"/eos/cue/22/2/fire",
/*Q22/9 */"/eos/cue/22/9/fire",
/Q22/10/"/eos/cue/22/10/fire",
/*Q22/4 */"/eos/cue/22/4/fire",
/Q22/13/"/eos/cue/22/13/fire",
/Q22/11/"/eos/cue/22/11/fire",
/Q22/18/"/eos/cue/22/18/fire",

/N/"/eos/cue/50/9/fire",

/J/"eos/sub/755/full",
/Q/"eos/sub/756/full",
/K/"eos/sub/757/full",

/s1/"eos/macro/9101/fire", //macro in background con snapshot

/s2/"eos/macro/9102/fire",

};

/**************************************************************************************************************
Scriviamo i messaggi OSC che/se vogliamo mandare al rilascio dei pulsanti, nello stesso ordine dei pin
per l'OUt dei submaster in time zero, impostare lo sneak a zero in setup.
*************************************************************************************************************/

const String buttonUps[21]
{
/SUB 751/"eos/sub/751/out",
/SUB 752/"eos/sub/752/out",
/SUB 753/"eos/sub/753/out",
/SUB 754/"eos/sub/754/out",
/SUB 755/"eos/sub/755/out",
/SUB 756/"eos/sub/756/out",
/SUB 757/"eos/sub/757/out",

/*Q22/1 */"/eos/cue/22/0/fire",
/*Q22/2 */"/eos/cue/22/0/fire",
/*Q22/9 */"/eos/cue/22/0/fire",
/Q22/10/"/eos/cue/22/0/fire",
/*Q22/4 */"/eos/cue/22/0/fire",
/Q22/13/"/eos/cue/22/0/fire",
/Q22/11/"/eos/cue/22/0/fire",
/Q22/18/"/eos/cue/22/0/fire",
/M/"eos/cue/50/0/fire",
/N/"eos/cue/50/0/fire",

/J/"eos/sub/755/out",
/Q/"eos/sub/756/out",
/K/"eos/sub/757/out",

/s1/"",

};

/**************************************************************************************************************
Impostiamo i millisecondi per il debouncing
*************************************************************************************************************/

int keyBounce = 5;

/void parseOSCMessage(String& msg)
{
// check to see if this is the handshake string
if (msg.indexOf(HANDSHAKE_QUERY) != -1)
{
// handshake string found!
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
}
}*/

/**************************************************************************************************************
Funzione di Handshake per fader e bottoni
**************************************************************************************************************/

void initEOS() {
SLIPSerial.print(HANDSHAKE_REPLY);
filter("/eos/out/ping");
initFaders(FADER_PAGE, NUMBER_OF_FADERS, FADER_BANK);
}

void parseOSCMessage(String& msg) {
// check to see if this is the handshake string
if (msg.indexOf(HANDSHAKE_QUERY) != -1) {
// handshake string found!
connectedToEos = true;
initEOS();
}
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();

}
/*******************************************************************************
Here we prepare to communicate OSC with Eos by setting up SLIPSerial. Once
we are done with setup() we pass control over to loop() and never call
setup() again.
Parameters: none
Return Value: void
******************************************************************************/
void setup()
{
pinMode(Pin_A7, OUTPUT);
pinMode(Pin_A8, OUTPUT);
pinMode(Pin_A9, OUTPUT);
pinMode(Pin_A10, OUTPUT);
pinMode(Pin_A11, OUTPUT);
pinMode(Pin_A12, OUTPUT);
pinMode(Pin_A13, OUTPUT);
pinMode(Pin_A14, OUTPUT);
pinMode(Pin_A15, OUTPUT);

SLIPSerial.begin(115200);
// This is a hack around an Arduino bug. It was taken from the OSC library
// examples
#ifdef BOARD_HAS_USB_SERIAL
while (!SerialUSB);
#else
while (!Serial);
#endif

// this is necessary for reconnecting a device because it needs some time
// for the serial port to open, but meanwhile the handshake message was
// sent from Eos
SLIPSerial.beginPacket();
SLIPSerial.write((const uint8_t*)HANDSHAKE_REPLY.c_str(), (size_t)HANDSHAKE_REPLY.length());
SLIPSerial.endPacket();
// Inizializzazione di tutti i pulsanti input PULLUP mode

for (int i = 0; i < 21; i++) pinMode(buttonPins[i], INPUT_PULLUP);
//while (NoHandshake) HandShake();
initEOS();
}

/*******************************************************************************
Main loop: manage OSC I/O. Send a ping command to Eos every second.
Parameters: none
Return Value: void
******************************************************************************/
void loop()
{
for (int i = 0; i < 21; i++)
{
if (digitalRead(buttonPins[i]) != buttonState[i])
{
//if ((millis() - buttonTimers[i]) > keyBounce)// misura il tempo di arduino e si assicura che siano passati 5 millisecondi
{
if (buttonState[i]) sendOSCString(buttonDowns[i]);//invia messaggo con pressione bottone verso il basso
else sendOSCString(buttonUps[i]);
buttonState[i] = !buttonState[i];//capovolge lo stato della variabile
//buttonTimers[i] = millis();
}
}
}
static String curMsg;
static unsigned long lastTimeSent;
static int32_t pingNum;
unsigned long curTime;
int size;

fader1.update();
fader2.update();
fader3.update();
fader4.update();
fader5.update();
fader6.update();
//fader7.update();

// Check to see if any OSC commands have come from Eos that we need to respond to.
size = SLIPSerial.available();
if (size > 0)
{
// Fill the msg with all of the available bytes
while (size--) curMsg += (char)(SLIPSerial.read());
}
if (SLIPSerial.endofPacket())
{
parseOSCMessage(curMsg);
lastMessageRxTime = millis();//
timeoutPingSent = false;//
curMsg = String();
}

// Send a ping every second.
curTime = millis();
if (curTime - lastTimeSent > 1000)
{
OSCMessage ping("/eos/ping");
ping.add(pingNum++);
SLIPSerial.beginPacket();
ping.send(SLIPSerial);
SLIPSerial.endPacket();
lastTimeSent = curTime;
}
}
void sendOSCString(String buttonMessage)
{
OSCMessage buttonMsg(buttonMessage.c_str());//Cambia la stringa in un messaggio OSC
SLIPSerial.beginPacket(); // Processo per iniziare un messaggio OSc
buttonMsg.send(SLIPSerial); // invia il nostro messaggio OSC
SLIPSerial.endPacket(); // invia il nostro messaggio OSC
}`

[MLJ-ld]

Hi,

I built a couple of 6-fader wings with your sketch, everything is fine except that it sends continuous variations of value to Eos even if the fader is stopped, do you have any advice on this? If I want to use 10 faders, I just need to modify the sketch or do I have to modify the EOS library as well? always thanks for everything you make available.

Giovanni.

[sstaub]

Maybe a 25nF cap will also works. Try 1. and 2.

[MLJ-ld]

See the comments about hardware in the docs. The three problems with faders:

1. Grounding, use the dedicated Analog Ground if possible (On an UNO/MEGA the GND pin near to the AREF pin)
2. Power, use the right dedicated Power Pin for faders (On an UNO/MEGA AREF)
3. For Noise reduction use a 10nF ceramic cap between leveler and ground.

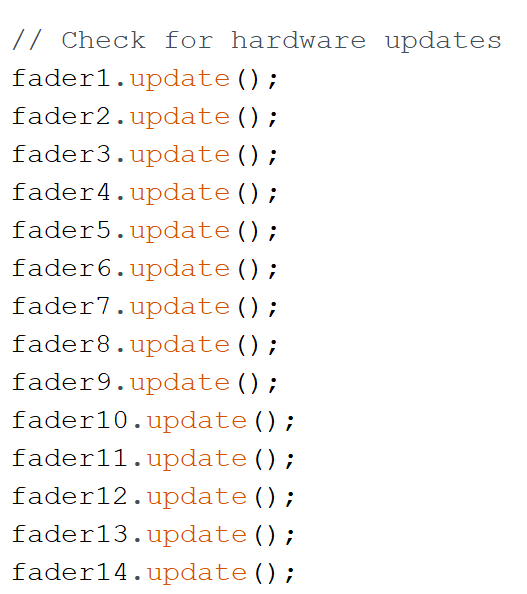

For more than 6 Fader simply add some new Class Members like for the others, including update() function. You should also look for the initFaders() depending on how many faders you want to use.

Hi,
I thought about making these changes

I have a doubt about FADER_PAGE ... using more than one page of faders just select the first one (28)?
MLJ

[sstaub]

Maybe that could work but I think you must assign fader 11 ... 14 at a separate page. Maybe must then do an extra initFaders() for the second bank. Try it in practical.

[MLJ-ld]

Ok! Thank you!!

[MLJ-ld]

Hi
I think that 10 nf is best solution with 25 nf in some rare cases there is a very little variation after the point ( 78,04 78,11 and similar) with 10 nf I should absorb everything, what do you suggest?https://user-images.githubusercontent.com/82513403/157080008-318477bc-536e-4123-975b-8ea2d0c8c364.MOV
